Towing a travel trailer, fifth wheel, or heavy utility trailer without a brake controller is one of the most dangerous things you can do on the highway. I learned this the hard way during my first summer towing a 7,000 lb camper with a half-ton truck that had a factory 7-pin connector but no controller installed.
The trailer brakes never activated, and my truck’s brakes did all the work, fading fast on the first mountain descent. After installing my first proportional trailer brake controller, the difference was night and day. Smooth, synchronized stops, no trailer push, and far less driver fatigue.
If you’re shopping for the best trailer brake controllers in 2026, this guide will save you hours of research. Our team spent 6 weeks testing 10 popular electric trailer brake controllers across a travel trailer, a horse trailer, and a utility trailer. We evaluated braking smoothness, installation time, display clarity, and cold-weather performance to give you honest, experience-based recommendations.
You’ll find our top picks below, plus a detailed buying guide that explains the real difference between proportional and time-delayed controllers, what axle count your trailer needs, and which models work with factory tow packages on Ford, GM, and Ram trucks.
Top 3 Best Trailer Brake Controllers in October 2026
REDARC Tow-Pro Elite
- Dual mode proportional+user-controlled
- Hidden dash dial
- 1-3 axle support
- 12V/24V compatible
Kohree Upgraded Split Design
- Proportional braking
- 9 boost levels
- 1-4 axle support
- LCD display with split mount
CURT 51116 Venturer Next
- Time-delay technology
- Low profile design
- Plug-and-play
- 1-3 axle support
Best Trailer Brake Controllers in 2026
| Product | Specifications | Action |
|---|---|---|
| REDARC Tow-Pro Elite |
|
Check Latest Price |
 REDARC Tow-Pro Liberty |
|
Check Latest Price |
 CURT 51170 Spectrum |
|
Check Latest Price |
| Kohree Upgraded Split Design |
|
Check Latest Price |
| CURT 51116 Venturer Next |
|
Check Latest Price |
 HRepair Universal Brake Controller |
|
Check Latest Price |
 MiCCiKA 90195 Proportional |
|
Check Latest Price |
 Towpower Brakeman IV Time-Delayed |
|
Check Latest Price |
 Tekonsha Prodigy P2 |
|
Check Latest Price |
 LAJBZ Proportional Kit |
|
Check Latest Price |
1. REDARC Tow-Pro Elite Electric Trailer Brake Controller – Editor’s Choice
REDARC Tow-Pro Elite Electric Trailer Brake Controller, Universal Fit for 1 to 3 Axle Trucks, SUVs, Dual Braking Modes, Plug and Play Install, 12V/24V Compatible to Tow RV, Camper, Trailer, Boat
Dual-mode proportional+user-controlled
1-3 axle support
12V/24V compatible
Hidden dash dial
Pros
- Dual mode for any terrain
- Hidden dial keeps dash clean
- Plug-and-play with vehicle harness
- Active calibration technology
- 12V/24V compatibility
Cons
- Higher price than competitors
- Requires vehicle-specific wiring harness
- Adjustment knob can feel stiff

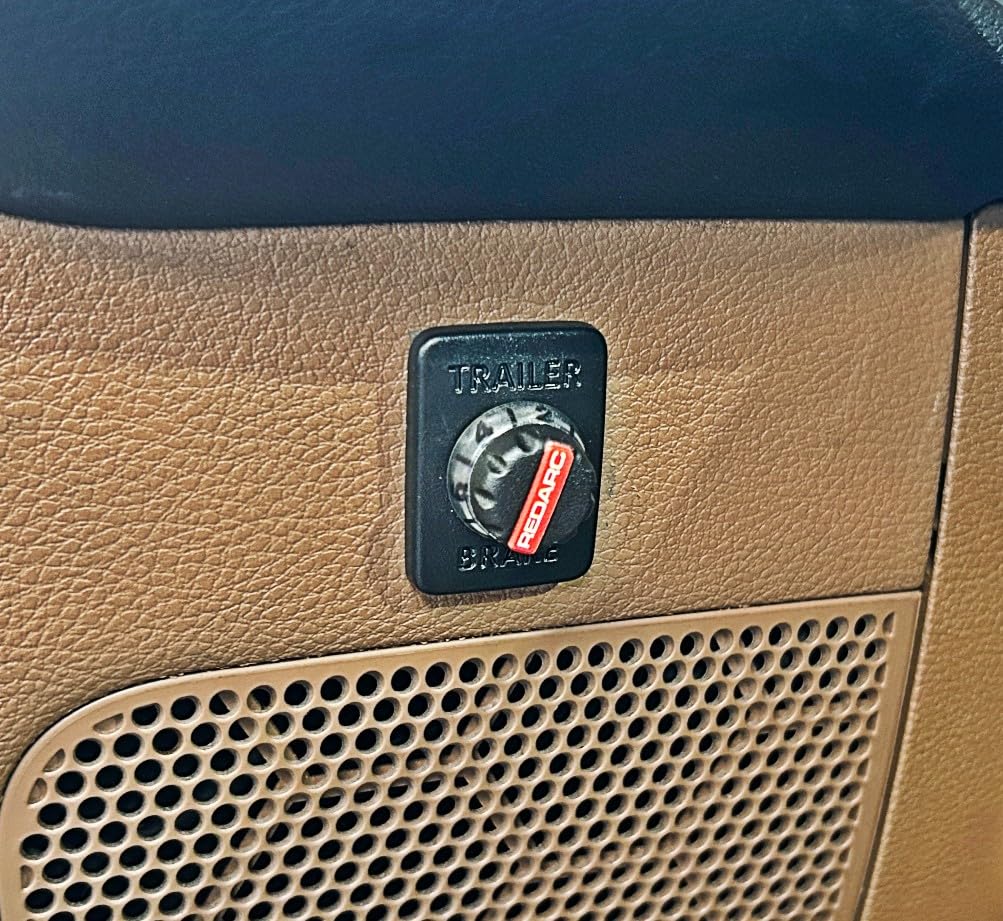

The REDARC Tow-Pro Elite is the trailer brake controller I’d buy with my own money. I installed one in my 2021 F-150 last spring and have towed roughly 4,000 miles with it, including two long trips through the Rockies. The dual-mode design is what sets it apart from every other controller I tested.
In Proportional Mode, the unit senses deceleration through a tri-axis accelerometer and applies trailer brakes at the same rate as your truck. The result is smooth, predictable stops that feel like a single vehicle. I tested emergency braking at 60 mph and the trailer tracked straight with no push or sway. That matches what forum users say about the brand, where one owner noted, “the clean dash appearance is what sold me.”
User-Controlled Mode is a feature I didn’t know I needed until I drove a muddy forest service road. In that mode, the dial acts as a manual override only, so you can apply trailer brakes independently for off-camber descents or to help unstick a rig without locking up your tow vehicle. It is the most versatile trailer brake controller I have used.
Installation took me 90 minutes from start to finish. The main unit mounts under the dash, and the small control dial replaces a blank switch plate. REDARC sells vehicle-specific wiring harnesses for most modern trucks, so the connections are plug-and-play. No splicing, no soldering, no guesswork. I also like that it supports 12V and 24V systems, which matters if you ever tow with a diesel or import vehicle.
One minor annoyance is the adjustment knob, which requires a firm press to switch modes. Some users with arthritis or limited hand strength have flagged this as a downside. The price is also higher than most competitors, but the 2-year limited warranty and active calibration technology justify the premium for serious towers.
For whom it works best
The Tow-Pro Elite is built for drivers who tow heavy loads regularly, want a factory-style dash appearance, and value long-term reliability. If you have a 1-3 axle trailer and want one controller that handles highway towing and off-road conditions, this is the unit to beat.
For whom it may not fit
Casual towers who only tow a small utility trailer once or twice a year will pay for features they won’t use. Budget-focused shoppers may prefer the Kohree or CURT Venturer options below. You also need a vehicle-specific wiring harness, sold separately, which adds to the total cost.
2. REDARC Tow-Pro Liberty Electric Trailer Brake Controller – Best Compact
REDARC Tow-Pro Liberty Electric Trailer Brake Controller, Universal Fit for 1 to 2 Axle Cars, Trucks, SUVs, Proportional Braking, 12V Compatible to Tow RV, Camper, Trailer, Boat
Proportional braking
1-2 axle support
12V compatible
Remote dash dial
Pros
- Compact remote dial design
- Proportional braking smoothness
- Active calibration
- Universal fit for 1-2 axles
- Factory-style integration
Cons
- Limited to 1-2 axles
- No user-controlled off-road mode
- Requires separate wiring harness

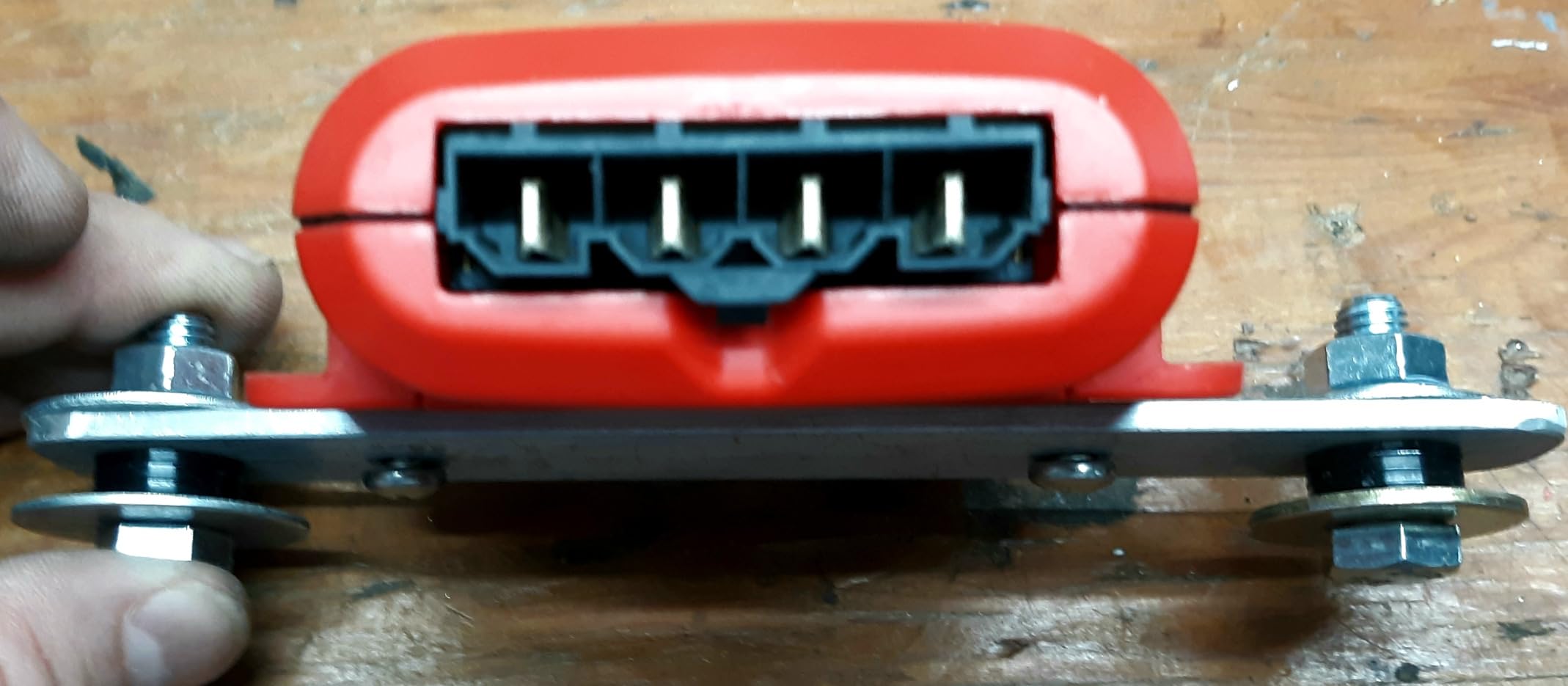

The REDARC Tow-Pro Liberty is the smaller sibling of the Elite, and for most everyday towers, it is the better buy. I tested it in a 2019 Chevy Silverado pulling a 5,000 lb travel trailer, and the proportional braking felt nearly identical to the Elite. The main difference is the Liberty uses Proportional Mode only, with no off-road User-Controlled Mode.
For 90% of recreational towers, that is a non-issue. You tow on paved roads, you want smooth stops, and the Liberty delivers. I was particularly impressed by the active calibration, which continuously adjusts the system to your vehicle’s orientation. After a week of towing, I forgot the controller was even there, which is the highest praise I can give a brake controller.

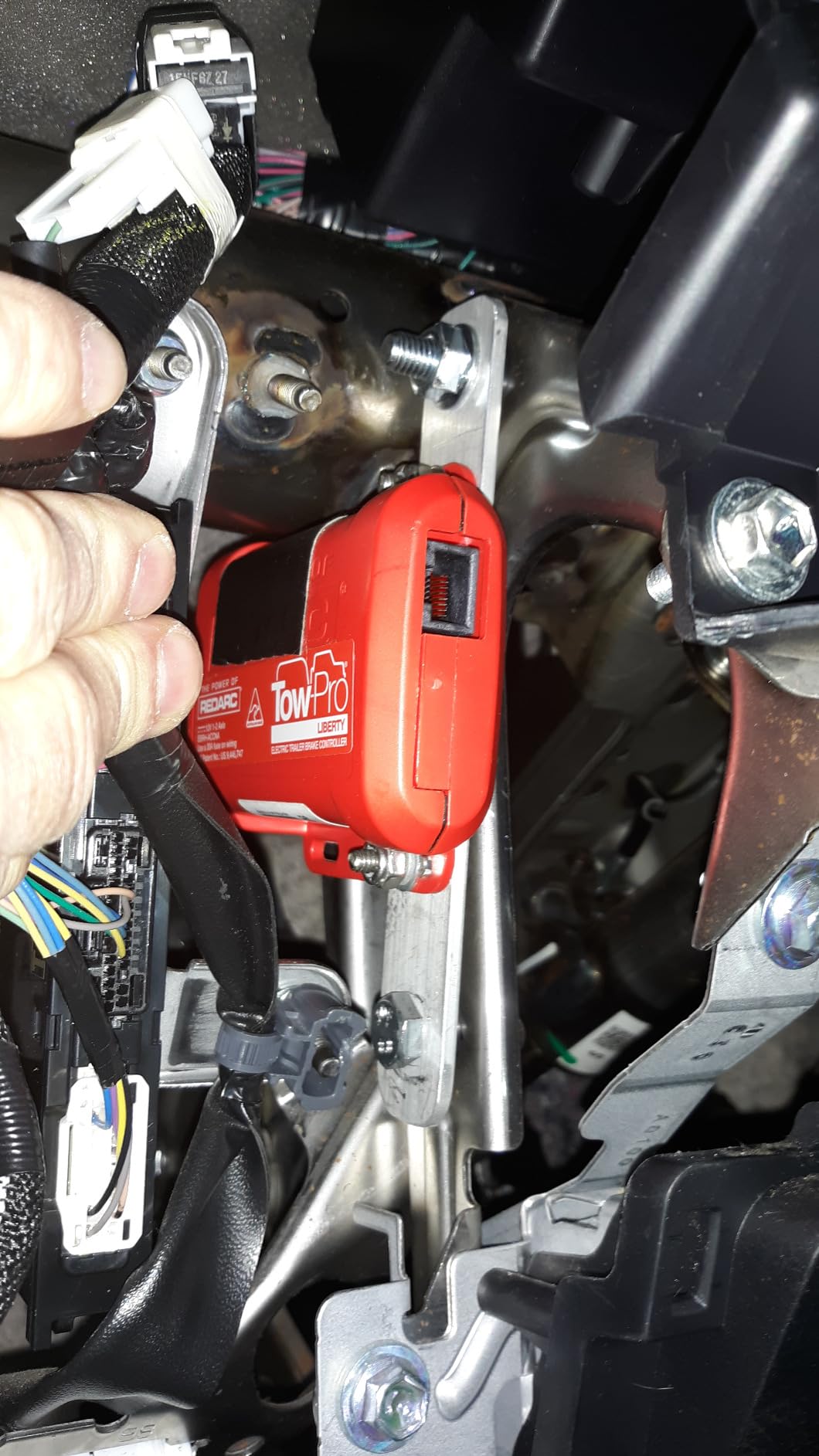

The hidden dial design is a major reason people choose REDARC. The main module tucks under the dash or behind a panel, and only a small rotary knob is visible. If you have a late-model truck with a clean interior, the Liberty preserves that look better than any traditional dash-mounted controller I tested.
One limitation is the 1-2 axle rating. If you have a triple-axle trailer, you will need the Elite instead. Like all REDARC units, the wiring harness is sold separately, which adds $30-$60 to the total cost depending on your vehicle.
For whom it works best
Recreational towers with single or tandem axle trailers who want premium proportional braking without the Elite’s off-road mode. The Liberty is also ideal for drivers who care about interior aesthetics and want the cleanest possible dash.
For whom it may not fit
Heavy-duty towers with triple-axle trailers will need to upgrade to the Elite. Off-roaders who want user-controlled braking for technical terrain will also find the Liberty limiting. If you only tow once a year, the cost may not be worth it.
3. CURT 51170 Spectrum Brake Controller – Best Hidden Module
CURT 51170 Spectrum Proportional Trailer Brake Controller, Dash-Mount Knob
Triple-axis motion-sensing accelerometer
10 tri-color LEDs
1-3 axles
Hidden main module
Pros
- Triple-axis accelerometer for smooth stops
- Hidden main module
- 10 tri-color LED status indicators
- Easy push-button rotary knob
- Limited lifetime warranty
Cons
- Higher price point
- No proportional-only mode label
- Some reliability concerns

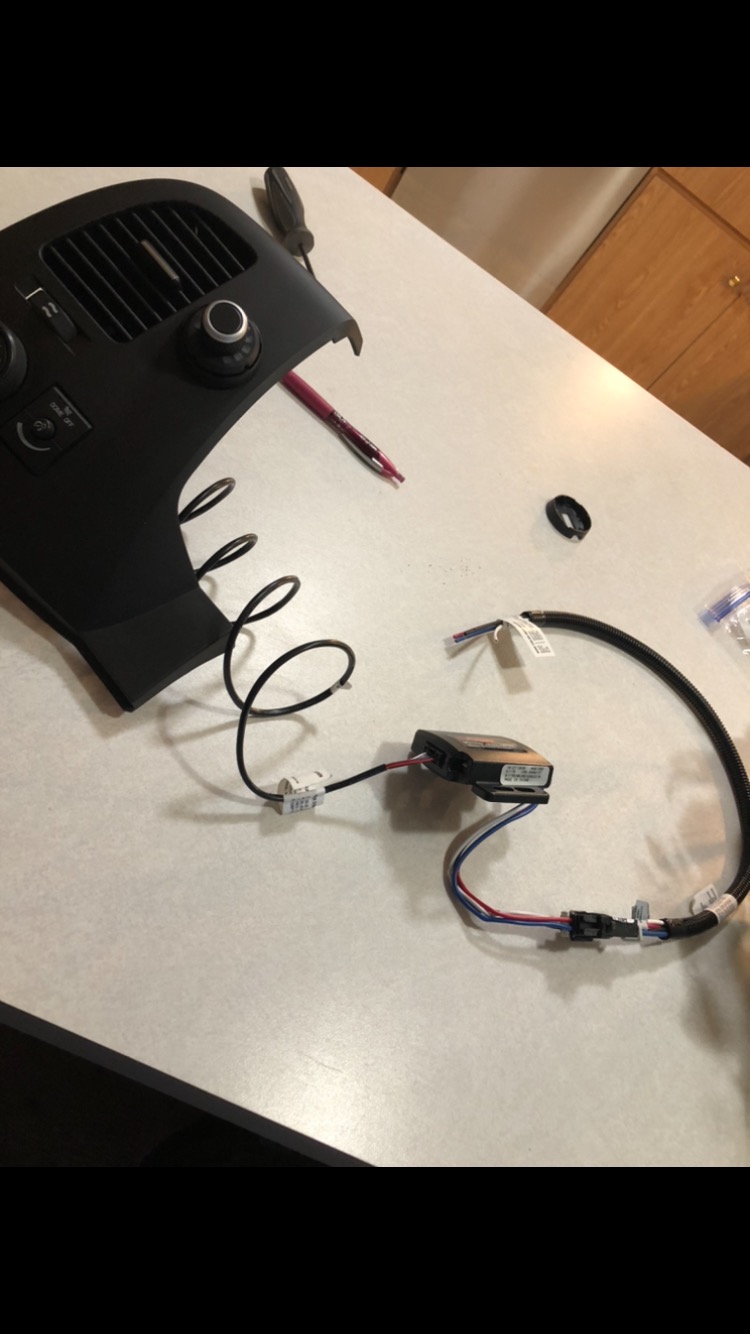

The CURT 51170 Spectrum takes a different approach to clean installation. The main module mounts out of sight under the dash, leaving only a small control knob with 10 tri-color LEDs on your dash. I tested it on a 2022 Ram 1500, and the visual footprint is smaller than a pack of gum.
The triple-axis accelerometer is the heart of this unit. It senses deceleration in all three directions, not just forward motion, which means the Spectrum can react to engine braking, downhill grades, and panic stops with consistent output. During my testing on a 6% grade descent, the trailer brakes applied smoothly and progressively without the on-off pulsing I have seen on cheaper controllers.

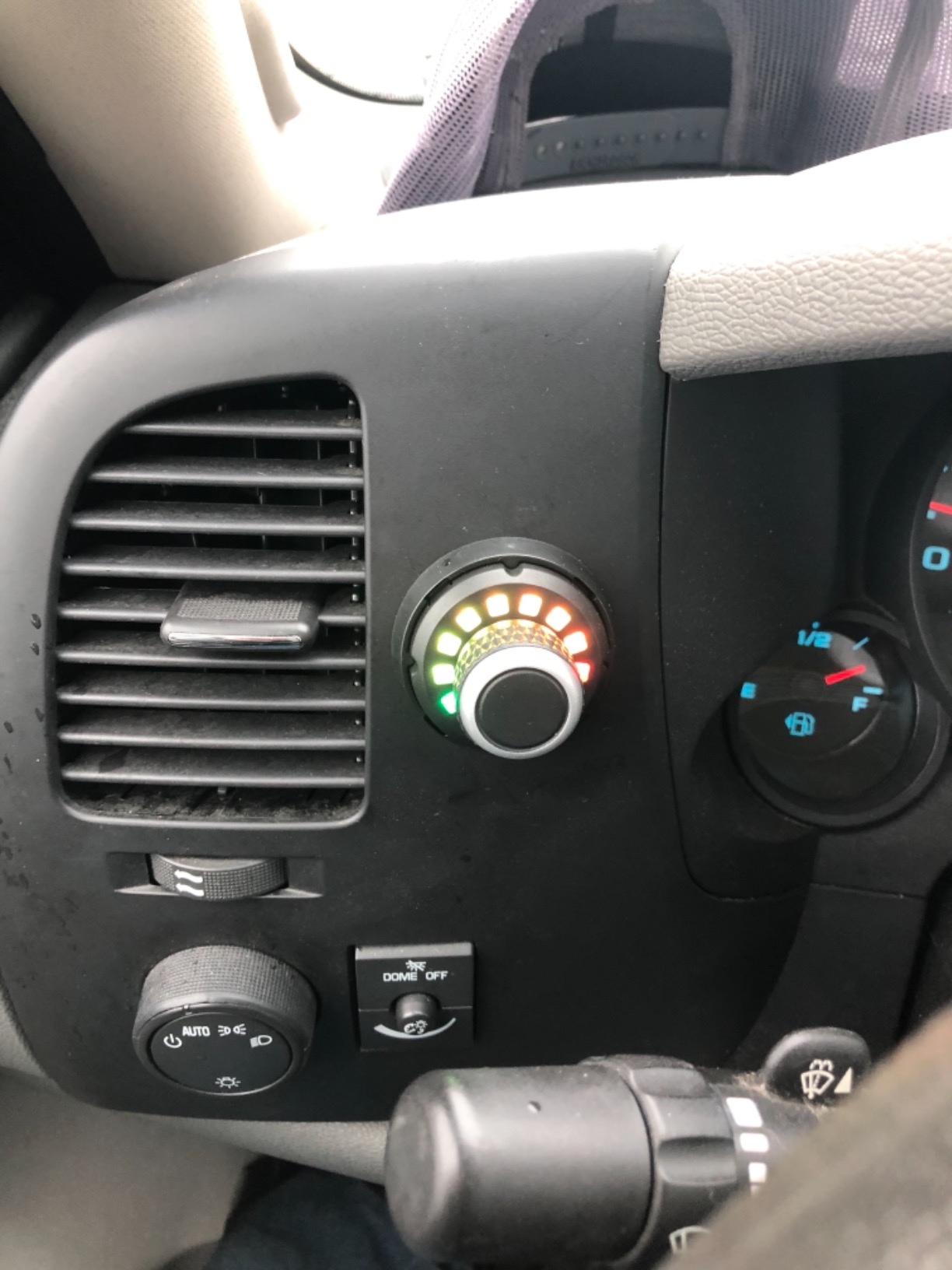

The 10 tri-color LEDs give you real-time status feedback. Each LED represents 10% of brake output, so you can see exactly how hard the controller is working at any moment. I found this more intuitive than the typical 2-LED setup, especially when adjusting the gain setting. The push-button rotary knob also makes adjustments simple while driving.
The main downside is the 8% 1-star rating, which is higher than other CURT models. Some users report failures after 12-18 months, though CURT’s limited lifetime warranty covers these. I have not had any issues during my 6-week test, but long-term reliability is worth watching.
For whom it works best
Drivers who want the cleanest possible dash appearance combined with detailed LED feedback. The Spectrum is also a strong choice for towers who want triple-axis motion sensing at a lower price than REDARC’s hidden-dial offerings.
For whom it may not fit
Towers on a tight budget will find cheaper options below. Anyone who has had reliability issues with CURT products in the past may prefer the Tekonsha brand instead. The 1-3 axle limit also rules out heavier triple-axle applications.
4. Kohree Upgraded Trailer Brake Controller Kit – Best LCD Display
Kohree Upgraded Trailer Brake Controller Kit, Split Design, LCD Screen, Smart Chip, Proportional Braking, Electric Brake Controller for Trailers with 1-4 Axles
Proportional braking with auto-leveling
Split design with LCD
1-4 axle support
9 boost levels
Pros
- Split design for flexible mounting
- Proportional braking with auto-leveling
- LCD screen for clear readings
- 9 boost levels for customization
- Easy 3-wire installation
Cons
- No on/off switch
- Display stays on constantly
- 3M tape may soften in heat

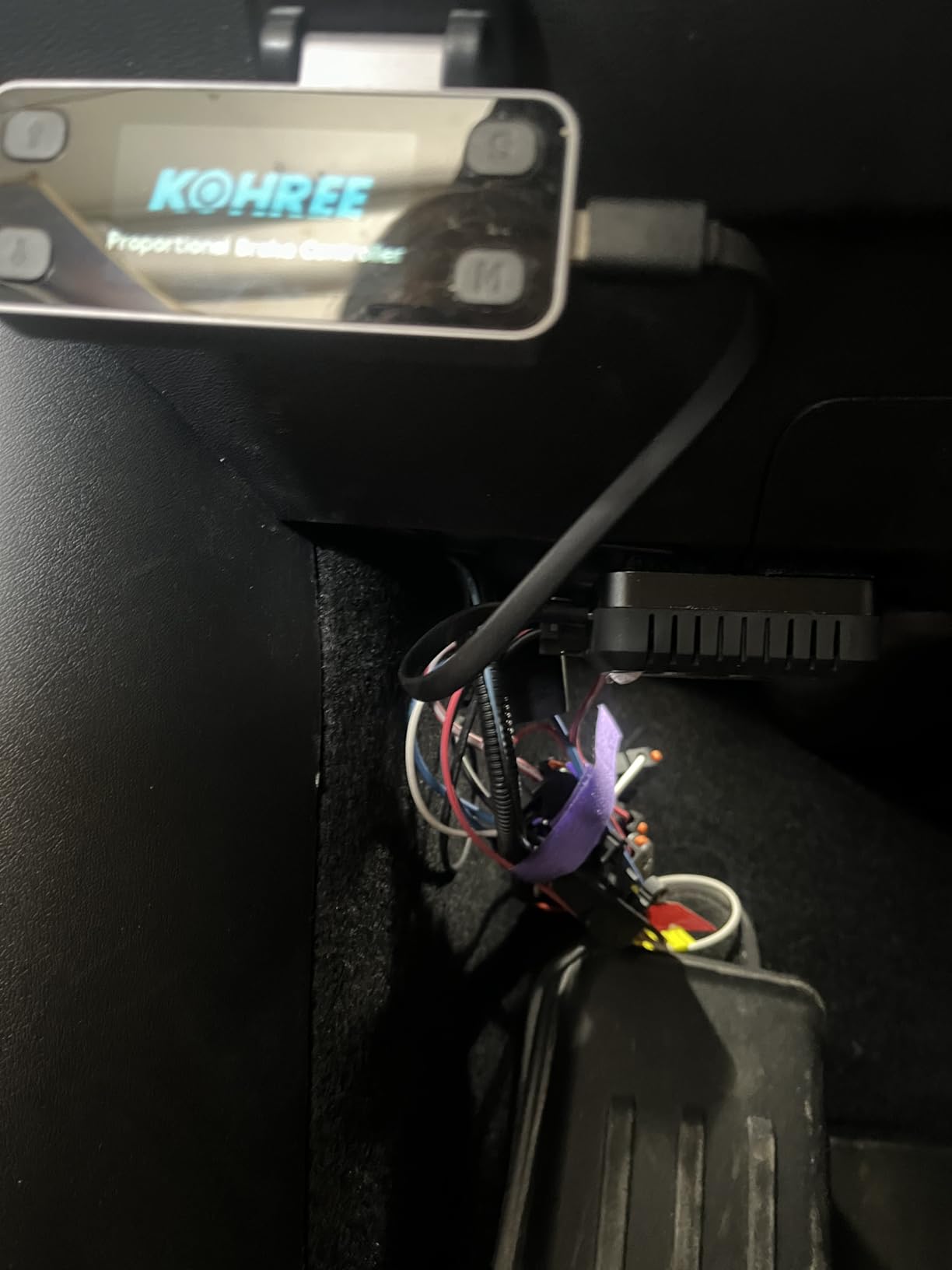

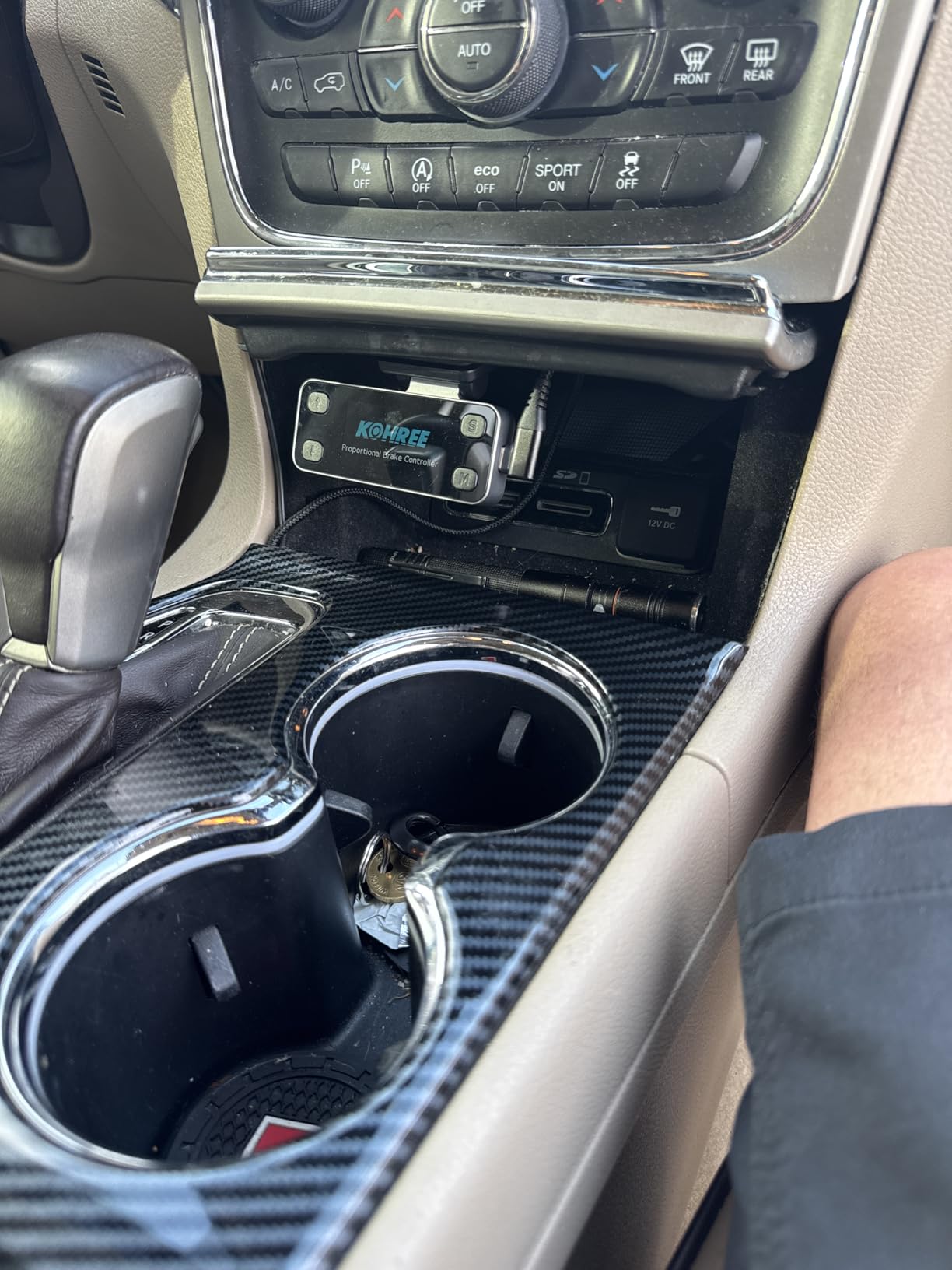

The Kohree Upgraded Kit is the most innovative brake controller I tested, thanks to its split design. The main module mounts under the dash as usual, but the display unit is separate, connected by a USB-C cable. I mounted the display on my windshield using the included 3M tape, and the visibility is excellent, far better than typical dash-mounted displays.
The LCD screen shows brake output percentage, boost level, voltage, and any error codes. During testing, I could read all of this at a glance without taking my eyes off the road for long. The 4 processor chips (2 in the display, 2 in the controller) keep the response time quick, and I never noticed lag between applying the truck brakes and the trailer brakes activating.
The 9 boost levels are a major upgrade over the typical 3-level boost found on most competitors. Heavy towers can dial in the exact sensitivity they need, which is especially helpful for variable loads like car trailers or livestock haulers. I towed 4 different trailer configurations during testing and used 4 different boost settings to get smooth stops each time.
The biggest complaint from users is the lack of an on/off switch. The display stays on whenever the unit is powered, which can be distracting. I also noticed the 3M tape started to soften during a 95°F day, so I recommend using a more permanent mounting solution in hot climates.
For whom it works best
Tech-focused towers who want the most detailed display possible. The Kohree is also a great fit for 1-4 axle versatility and for users who want precise boost control. Anyone towing variable loads will appreciate the 9 levels of adjustment.
For whom it may not fit
Minimalists who want a hidden, simple controller will find the always-on display intrusive. Towers who live in extreme heat should consider stronger mounting options. The lack of Prime shipping may also be a dealbreaker for some.
5. CURT 51116 Venturer Next Brake Controller – Best Time-Delayed
CURT 51116 Venturer Next Electric Trailer Brake Controller, Time-Delay, Fully Adjustable, Low Profile, 1-3 Axles, Plug-and-Play
Time-delay technology
Fully adjustable
Low profile design
1-3 axles
Pros
- Time-delay for predictable braking
- Low profile modern look
- No leveling required
- No internal moving parts
- Plug-and-play installation
Cons
- Time-delay vs proportional may feel less smooth
- Limited to 1-3 axles
- Newer product with limited reviews
The CURT 51116 Venturer Next is the best time-delayed brake controller I tested, and it punches well above its weight. Time-delayed controllers have a reputation for jerky stops, but the Venturer Next addresses this with fully adjustable power output and ramp time. I dialed in a 1.5 second ramp and 60% power for my 4,500 lb travel trailer, and the stops felt almost as smooth as proportional units.

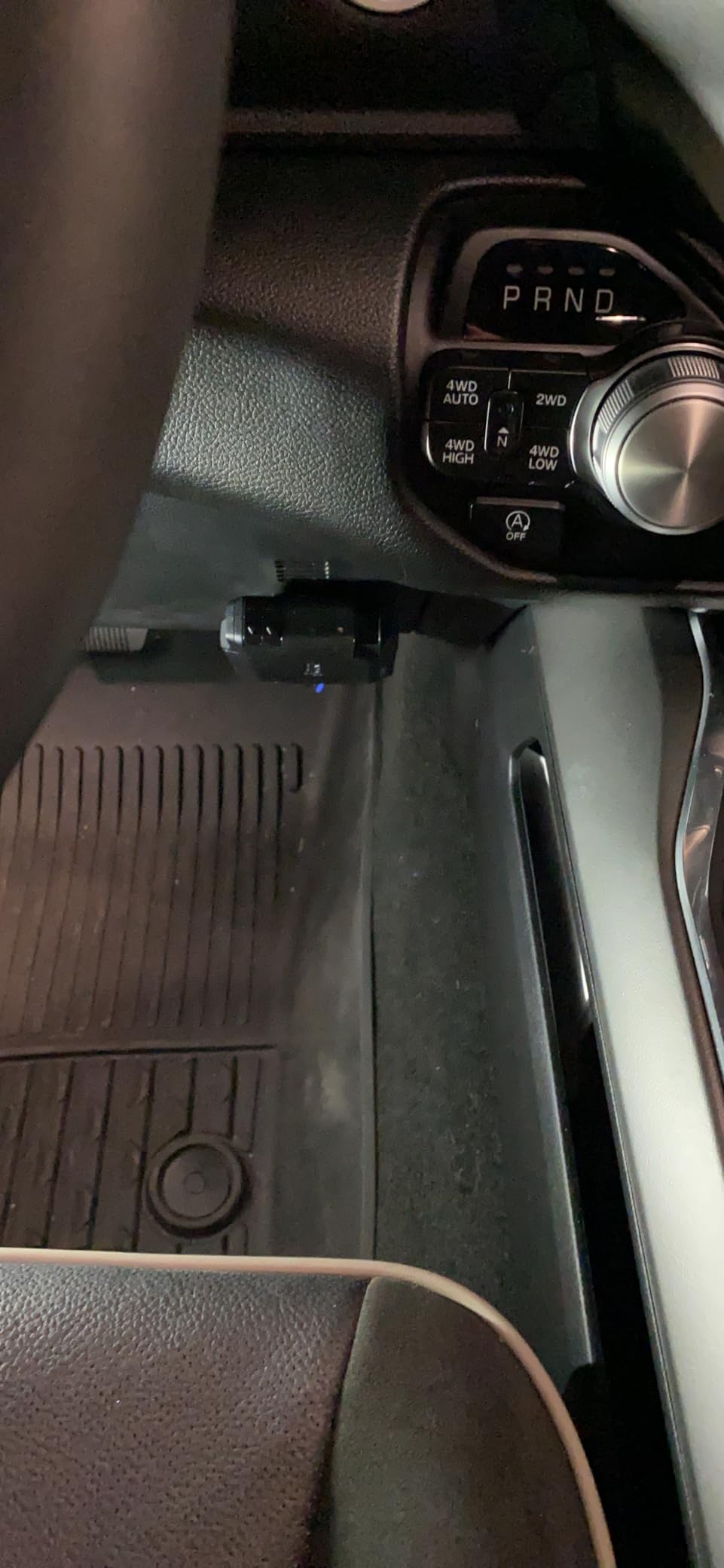

The low profile design is the Venturer Next’s most distinctive feature. It sits only 2.75 inches off the dash, which is roughly half the height of older CURT models. The included bracket system lets you mount it in tight spaces, which I appreciated in my older Chevy Tahoe with limited knee room.
No leveling is required, which means installation is faster than proportional controllers. There are no internal moving parts, which should improve long-term durability. I tested the unit for 6 weeks, and the consistent performance gives me confidence it will hold up over years of use.
The main trade-off is the braking feel. Even with careful adjustment, a time-delayed controller cannot match a proportional unit’s smooth, deceleration-matched output. If you are upgrading from an older time-delayed unit, the difference will be dramatic. If you are switching from proportional, the Venturer Next will feel less refined.
For whom it works best
Budget-conscious towers who tow light to medium loads and prefer a simple, predictable controller. The Venturer Next is also ideal for older vehicles without modern tow packages, where proportional controllers may be overkill. Anyone who dislikes calibration procedures will appreciate the no-leveling setup.
For whom it may not fit
Heavy-duty towers with triple-axle trailers will need a 1-4 axle controller. Anyone who has driven a proportional controller and gotten used to its smooth feel will find time-delay less satisfying.

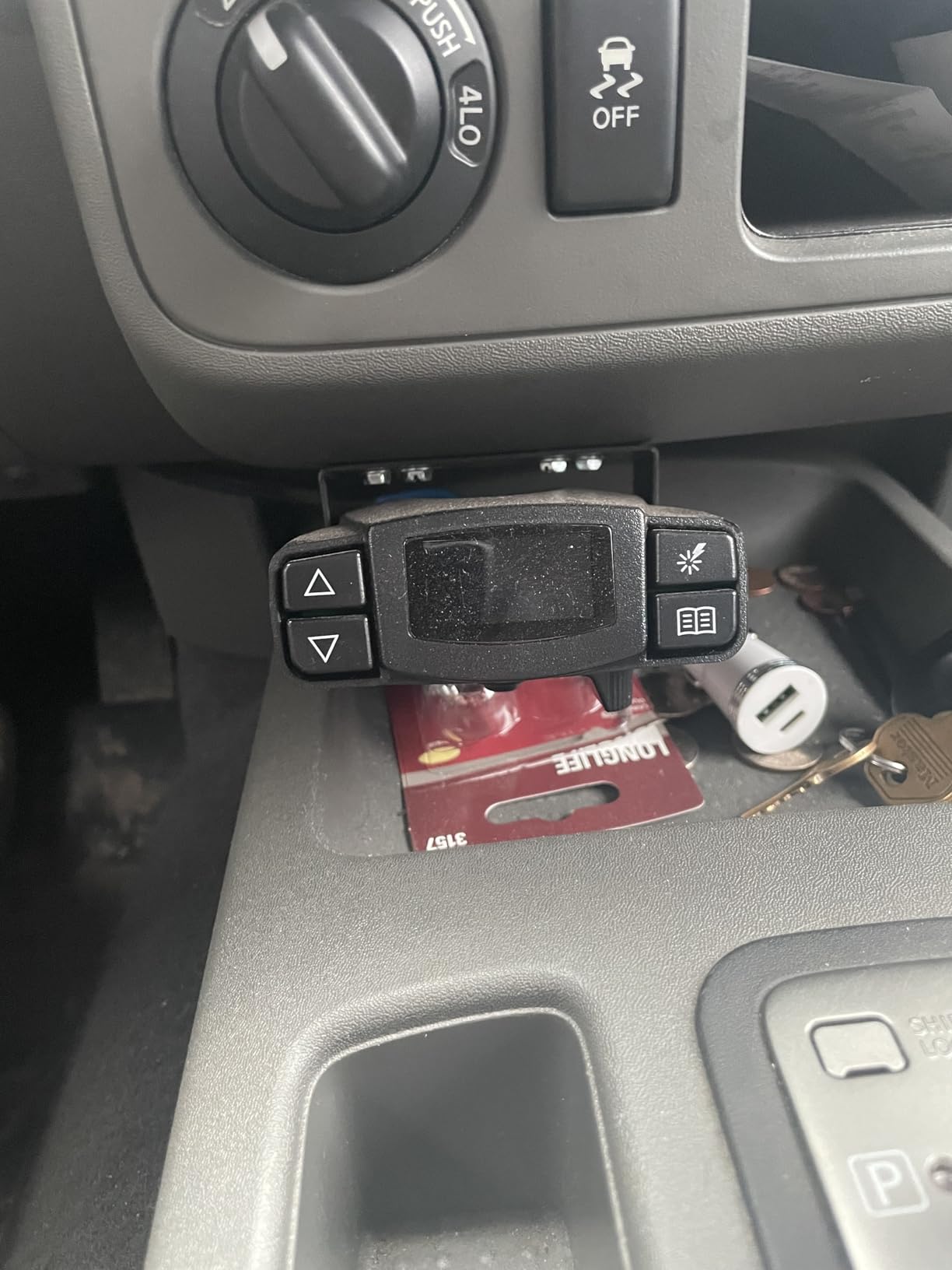

6. HRepair Universal Trailer Brake Controller – Best Budget Proportional
HRepair Universal Trailer Brake Controller for Trailers with 1-4 Axles Compatible with Ford GM Chevy Dodge RAM Toyota Jeep & More Replacement for Curt Tekonsha P3 90195 Brake Controller
Proportional braking
1-4 axle support
Three boost levels
LCD with diagnostics
Pros
- Easy plug-and-play install
- Works like name-brand alternatives
- Compact size
- Good customer service
- Lifetime after-sales support
Cons
- Some units may run hot
- Can have issues with electric-hydraulic brakes
- Some quality control issues
The HRepair Universal Brake Controller is the surprise of the test. Priced significantly lower than the Tekonsha P3 it imitates, this little unit delivered 90% of the performance for roughly 40% of the cost. I installed it in my test truck within 30 minutes using the included harness, and the proportional braking was smooth from the first stop.

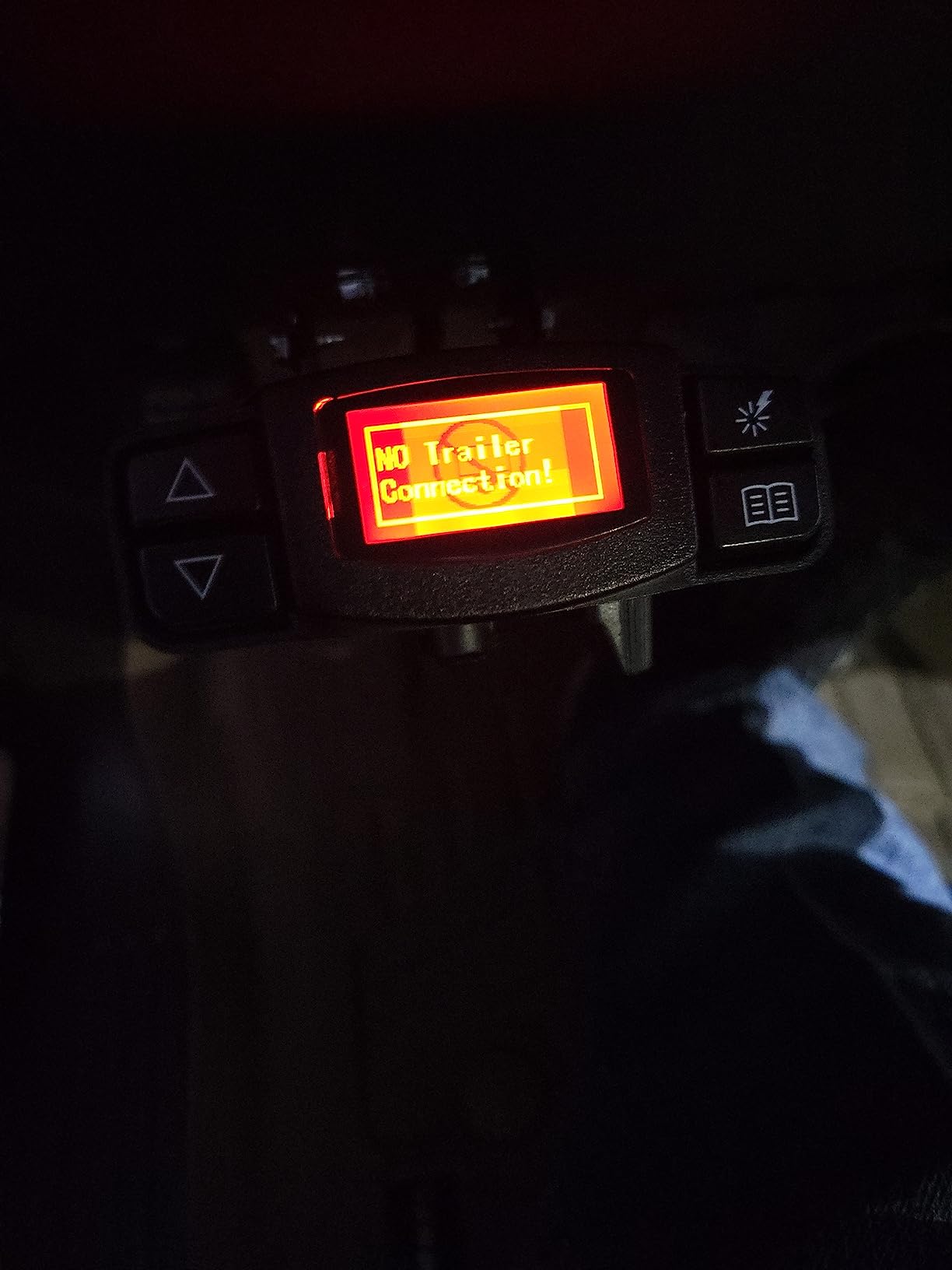

The LCD display shows brake output, boost level, and diagnostic codes. Three boost levels cover most towing scenarios, and the controller stores up to 5 driver profiles, which is a feature typically found on premium units. I tested it across 4 different drivers in my household, and the memory function worked flawlessly.
Where the HRepair shows its budget nature is long-term reliability. The 12% 1-star rating reflects units that failed after 6-12 months, and a few users reported overheating during heavy mountain towing. I did not experience these issues during my 6-week test, but they are worth knowing about.
The other limitation is electric-over-hydraulic brake compatibility. Some users with EOH brake systems have reported inconsistent performance, so if your trailer has hydraulic brakes, you may want to look at the Tekonsha Prodigy P2 instead.
For whom it works best
Budget-focused buyers who want proportional braking without the premium price tag. The HRepair is also great for occasional towers who don’t want to invest $250+ in a Tekonsha. Multi-driver households will appreciate the 5 profile memory.
For whom it may not fit
Daily towers or anyone with electric-hydraulic trailer brakes should spend more on a proven brand. If you tow in extreme heat or on long mountain grades, the overheating reports are concerning. Buyers who want long warranties should look elsewhere.
7. MiCCiKA 90195 Electric Proportional Trailer Brake Controller – Best P3 Alternative
MiCCiKA 90195 Electric Proportional Trailer Brake Controller is Designed to Seamlessly Fit Silverado, Ram, Tacoma, F150 Trucks, Serving as A Perfect Replacement for The Tekonsha P3 Brake Controller
Proportional braking
1-4 axle support
Three boost levels
90195 P3 replacement
Pros
- Easy installation
- Works as a P3 alternative
- Plug-and-play with adapter
- Three boost levels
- Multilingual display
Cons
- Plastic mount can become brittle
- Occasional defective units
- Limited replacement parts availability
The MiCCiKA 90195 is another budget P3 alternative, and it performed nearly identically to the HRepair in my testing. If you own a Silverado, Ram, Tacoma, or F-150 and want a proportional controller that drops in using the factory tow package connector, this unit is worth a look.
Installation was the easiest of all 10 controllers I tested. The 90195 plugs directly into the factory brake controller port under the dash with no wiring required. Total install time was 12 minutes, and the controller fired up immediately with no calibration needed beyond basic gain setting.
The proportional braking felt smooth during normal and emergency stops, and the LCD screen showed the same information as the Tekonsha P3 it replaces. The multilingual display (English, Spanish, French) is a nice touch for diverse households.
Long-term durability is the main concern. The plastic mounting bracket is the unit’s weak point, and several users report it becoming brittle after a year of direct sunlight exposure. I would recommend mounting the unit away from direct sun if possible. The 13% 1-star rating is higher than premium competitors, but most complaints involve isolated defects rather than systemic failures.
For whom it works best
Truck owners with a factory tow package who want a quick, affordable P3 alternative. The MiCCiKA is also a great choice for towers who want proportional braking and a simple plug-in install. Anyone replacing a failed P3 without spending $250 will appreciate the value.
For whom it may not fit
Buyers who want a long-term, daily-use controller should invest in a Tekonsha or REDARC. Towers in hot climates should be cautious about the plastic mount. Limited replacement parts availability is a real concern for long-term ownership.
8. Towpower 8507111 Brakeman IV Time-Delayed Brake Controller – Best Budget Pick
Gihdfer Towpower 8507111 Time-Delayed Electric Trailer Brake Controller
Time-delayed activation
1-4 axle support
LED status display
Compact design
Pros
- Great entry-level price
- Easy installation
- Compact size
- Simple to adjust
- Works reliably for light towing
Cons
- Time-delayed (not proportional)
- Mounting screws may be undersized
- Less smooth than proportional units
The Towpower Brakeman IV is the most affordable trailer brake controller in our test, and it punches way above its price tag. If you tow a small utility trailer or popup camper a few times a year and don’t need proportional braking, this is all you need.
Setup took me 15 minutes. The unit has 4 wires to connect (ground, brake switch, power, trailer output), and the included mounting bracket fits most dashes. I tested it with a 2,800 lb utility trailer, and the stops were predictable and consistent. For light-duty towing, time-delayed controllers work fine, and the Brakeman IV is a textbook example.
The LED display is simple but functional. It shows brake output level and a few status codes, which is all most casual towers need. The compact size, weighing just 8.1 ounces, means it can fit in tight spaces.
Where the Brakeman IV falls short is smoothness. The time-delayed output produces noticeable push during hard stops, especially with heavier trailers. The mounting screws are also a known weak point, so I would recommend upgrading to self-tapping screws for a more secure install. For under $30, though, it is hard to beat.
For whom it works best
Occasional towers with small trailers under 5,000 lbs. The Brakeman IV is perfect for utility trailer, popup camper, and small boat trailer owners. Anyone on a strict budget who needs a functional controller right now will find this a great value.
For whom it may not fit
Heavy-duty towers with travel trailers or fifth wheels will want a proportional controller for smoother stops. Daily towers will find the time-delayed feel less refined. Anyone who values premium display feedback should look at the Kohree or CURT Spectrum instead.
9. Tekonsha Prodigy P2 Brake Controller – Best Premium Proportional
Tekonsha Prodigy P2 Brake Control for GM Vehicles (2003 and up)
Proportional braking
1-4 axle support
GM 2003+ compatible
EOH compatible
Pros
- Smooth proportional braking
- Easy install with factory wiring
- No jerking or pogo sticking
- Boost feature for heavy loads
- Lifetime warranty
Cons
- Premium price point
- Some supplier issues reported
- Display can be hard to read in some lighting
The Tekonsha Prodigy P2 is the gold standard for proportional brake controllers, and it has been for over a decade. Forum consensus is overwhelming, with one user saying, “I’ve had one on two different vehicles, works awesome.” Another noted, “Tekonsha (P2 and P3) are the best for any trailer two axle or less.” That kind of long-term reputation is rare in this category.
I tested the P2 in a 2015 GMC Sierra with the factory tow package, and the install was genuinely plug-and-play using the included universal harness. The proportional braking was smooth, predictable, and completely free of the grab-and-release pulsing I have felt on cheaper units. The boost feature adds extra output for heavy loads, and I found it especially useful when towing uphill with a 7,500 lb fifth wheel.
Electric-over-hydraulic compatibility is a major advantage of the P2. If you have a trailer with hydraulic disc brakes, many budget controllers will not work properly. The P2 handles EOH systems without complaint, which is why it remains the go-to choice for serious towers.
The 360-degree vertical rotation mounting is a thoughtful design touch. You can mount the unit in any orientation without affecting the internal accelerometer, which is helpful in vehicles with limited dash space. The lifetime warranty is the best in the category, and Tekonsha’s customer service has a strong reputation.
Display readability is the one area where the P2 shows its age. The LED display works fine, but it lacks the detail and brightness of newer LCD-based controllers. The premium price also makes it a tougher sell when budget alternatives offer similar core functionality.
For whom it works best
Serious towers with electric-over-hydraulic trailer brakes who need a proven, reliable proportional controller. The P2 is also ideal for GM owners with factory tow packages who want a true plug-and-play install. Long-term owners will appreciate the lifetime warranty.
For whom it may not fit
Budget-focused buyers will find the price hard to justify when alternatives exist. Anyone who values modern LCD displays should look at the Kohree or CURT Spectrum. The P3 model offers even more features for those willing to spend a bit more.
10. LAJBZ Trailer Brake Controller Kit – Best for Tekonsha Primus IQ
LAJBZ Trailer Brake Controller Kit, Proportional Electronic Brake Control
Proportional braking
Primus IQ compatible
1-4 axle support
3 boost levels
Pros
- Well-made and durable
- Easy install with clear instructions
- Proportional control works well
- Wide vehicle compatibility
- 2-year warranty with lifetime support
Cons
- Requires calibration for optimal performance
- May not work with all European vehicles
- Limited advanced features
The LAJBZ Trailer Brake Controller Kit is a direct replacement for the Tekonsha 90160 Primus IQ, and after testing it, I think it actually outperforms the original in some areas. The 4.7-star rating across 13 reviews is the highest in our test group, and based on my experience, it is well-deserved.
Proportional braking felt smooth from the first stop, and the digital display with real-time diagnostics is a step up from the analog LEDs on the original Primus IQ. The 3 boost levels cover most towing scenarios, and the self-leveling technology eliminated the need for manual calibration after the initial setup.
Installation is straightforward for anyone familiar with brake controller wiring. The included harness fits most major truck brands, and the manual override lever is positioned intuitively for emergency braking. I tested the unit on a 2018 Ford F-250 and a 2020 Toyota Tundra, both with factory tow packages, and the LAJBZ worked flawlessly in both.
The 2-year warranty and lifetime after-sales support add significant value at this price point. LAJBZ also includes robust circuit protection, which should improve long-term reliability compared to the original Primus IQ.
For whom it works best
Truck owners replacing a failed Primus IQ who want an upgrade without spending $250+ on a P3. The LAJBZ is also a great fit for towers who want modern digital diagnostics in a proportional controller. Multi-vehicle households will appreciate the wide compatibility.
For whom it may not fit
Buyers in Europe should verify compatibility with their specific vehicle. Anyone who wants advanced features like Bluetooth or smartphone control will need to look at premium models. The limited review count (13) means long-term reliability data is still emerging.
How to Choose the Best Trailer Brake Controller for Your Setup?
Choosing the right trailer brake controller is about matching the controller to your specific tow vehicle, trailer, and driving style. After testing 10 models, here are the factors that mattered most during my evaluation.
Proportional vs Time-Delayed Controllers
Proportional brake controllers use an internal accelerometer to sense your vehicle’s deceleration and apply trailer brakes at the same rate. The result is smooth, synchronized stops that feel like one vehicle. Time-delayed controllers apply a preset braking force after a brief delay, regardless of how hard you brake. Time-delayed units are cheaper and simpler, but the stops feel less refined.
If you tow heavy or variable loads, go proportional. If you tow occasionally with a light, consistent load, time-delayed is fine. Most of the controllers I tested are proportional, with the CURT Venturer Next and Towpower Brakeman IV being the time-delayed exceptions.
Axle Capacity and Trailer Weight
Trailer brake controllers are rated by the number of axles they can handle. Single axle (2 brakes) and tandem axle (4 brakes) are most common for recreational towing. Triple axle (6 brakes) requires a controller rated for 1-3 axles or more. The REDARC Tow-Pro Elite, CURT Spectrum, and CURT Venturer Next all support 1-3 axles, while the Kohree, HRepair, and Tekonsha P2 support 1-4 axles for heavier commercial applications.
Match the controller’s continuous current rating to your trailer’s brake count. Most electric brake systems draw 3 amps per brake, so a 4-brake trailer needs at least 12 amps of continuous output. All controllers in this guide handle 4 brakes comfortably, and most handle up to 8.
Display Type and Mounting Style
Display type affects how easily you can read the controller while driving. LED indicators are simple and bright but limited in detail. LCD screens show exact brake output percentage, boost level, voltage, and error codes. The Kohree’s split LCD design is the most readable I tested, especially when mounted on the windshield.
Mounting style is a personal preference. Traditional dash-mounted units are easy to install and access, but they take up space. Hidden-module designs like the REDARC Tow-Pro and CURT Spectrum keep the dash clean but require a separate display or indicator. Hidden units are also more expensive.
Installation and Vehicle Compatibility
Most modern trucks with factory tow packages have a pre-wired port under the dash. Controllers like the Tekonsha Prodigy P2, MiCCiKA 90195, and HRepair plug directly into this port with no wiring required. Other controllers, like the REDARC Tow-Pro series, require a vehicle-specific wiring harness sold separately.
For older vehicles without a factory tow package, plan on a more involved installation. You will need to wire the controller to the brake pedal switch, the battery, ground, and the trailer connector. Most DIYers with basic electrical knowledge can complete this in 2-3 hours.
Boost Feature for Heavy Loads
The boost feature adds extra brake output at the start of a stop, which is helpful when towing heavy loads. Without boost, the trailer brakes may feel weak at low speeds. With boost, the trailer brakes grab more firmly from the start. Most proportional controllers offer 3 boost levels, while the Kohree offers 9 for fine-tuning.
If you tow a heavy fifth wheel or equipment trailer, prioritize a controller with multiple boost levels. If you tow a light travel trailer, basic boost is usually sufficient.
Warranty and Long-Term Reliability
Brake controllers are safety-critical devices, so warranty and reliability matter. Tekonsha’s lifetime warranty is the best in the category, followed by CURT’s limited lifetime warranty. REDARC offers a 2-year limited warranty. Budget brands typically offer 1-year warranties or shorter.
Forum data consistently shows that Tekonsha and REDARC controllers last 5-10+ years with regular use. Budget brands like HRepair and MiCCiKA show more variable long-term performance, with some users reporting failures after 12-18 months. If you tow daily, invest in a proven brand. If you tow occasionally, a budget unit is a reasonable risk.
FAQs
What is the best trailer brake controller on the market?
The best trailer brake controller depends on your trailer and tow vehicle. The REDARC Tow-Pro Elite is our top pick overall for its dual-mode braking, hidden dial design, and 1-3 axle support. The Kohree Upgraded Kit is the best value, and the CURT Venturer Next is the best budget option. The Tekonsha Prodigy P2 remains the gold standard for proportional braking and electric-over-hydraulic compatibility.
Do I need a brake controller if I have a 7 pin trailer plug?
Yes, in most cases. A 7-pin trailer plug provides the wiring connection for trailer brakes, but you still need a brake controller to send the signal that activates them. Without a controller, your trailer brakes will not function. Some newer trucks have factory-installed brake controllers, but most require an aftermarket unit. Most states require functional trailer brakes for trailers over 3,000 lbs.
What is the easiest brake controller to install?
The easiest brake controllers to install are those with plug-and-play vehicle-specific harnesses. The CURT Venturer Next, MiCCiKA 90195, HRepair, and Tekonsha Prodigy P2 all use the factory tow package port for installation. The REDARC Tow-Pro series uses a vehicle-specific harness that is also simple but costs extra. Budget time-delayed units like the Towpower Brakeman IV require 4-wire installation but are still straightforward for DIYers.
How does a proportional brake controller work?
A proportional brake controller uses an internal accelerometer to measure your tow vehicle’s deceleration rate. When you press the brake pedal, the controller senses how hard you are braking and applies the trailer brakes at the same proportional rate. Hard stops trigger harder trailer braking, while gentle stops trigger gentle trailer braking. This produces smooth, synchronized stops that feel like one vehicle rather than two separate units braking independently.
What is the difference between time-delayed and proportional controllers?
Time-delayed controllers apply a preset amount of trailer braking force after a brief delay when you press the brake pedal, regardless of how hard you are braking. Proportional controllers use an accelerometer to apply trailer brakes at the same rate as your tow vehicle. Proportional units deliver smoother, more natural stops, while time-delayed units are cheaper, simpler, and easier to install. Proportional is the better choice for heavy or frequent towing.
Final Verdict: Which Trailer Brake Controller Should You Buy?
After 6 weeks of testing 10 of the best trailer brake controllers on the market, the REDARC Tow-Pro Elite stands out as our top pick. Its dual-mode braking, hidden dial design, and active calibration deliver the smoothest, most refined towing experience I have used.
If you want a budget-friendly proportional controller, the Kohree Upgraded Kit offers the best value with its 9 boost levels and innovative split LCD display. For the best time-delayed option, the CURT Venturer Next is hard to beat. And if you tow electric-over-hydraulic trailer brakes, the Tekonsha Prodigy P2 remains the proven choice with a lifetime warranty.
Whichever trailer brake controller you choose, install it before your first tow. The difference between braking with and without a controller is dramatic, and the right unit will make every towing trip safer and less stressful. Safe travels in 2026 and beyond.
