If you own an air compressor, buy a two-way pneumatic extract-and-refill pump with a reservoir tank and a set of ATF adapters — that combination drains and refills a sealed transmission through the fill plug in one tool. If you have no compressor, a manual hand pump is the right call. That split decides almost everything else, which is why we spent six weeks working through ten of the most-reviewed transmission fluid transfer pumps on the market and rated them on capacity, adapter coverage, sealing, and how they behave in a real driveway.
Most people buy the wrong one for a predictable reason. They see a 10 litre tank and assume bigger is better, then find out mid-job that their fill plug sits in a space no adapter will reach, or that their compressor is too small to run the pump without stalling. Our roundup below covers hand bottle pumps, manual syringe evacuators, manual pressure pumps, and pneumatic two-way stations, plus the honest case for skipping a pump entirely.
All ten picks here are for consumer and DIY use in a home garage or driveway. None of them is the pump inside your transmission — that is an internal oil pump, a repair part, not a tool. If you are still deciding whether the category is right for you, our fluid evacuator guide covers the neighbouring tools that do the same job for brake fluid and power steering.
Top 3 Picks for Transmission Fluid Pumps in October 2026
Slippery Pete 5cc Hand Pump
- 5cc per stroke
- 17 inch flexible tube
- Long and short suction tubes
- 2 ounces
VEVOR 10L Two-Way ATF Pump
- 10 litre reservoir
- Two-way extract and refill
- 14 ATF adapters
- Pressure gauge and 43 PSI relief
Mityvac MVA6852 Evacuator
- 1.5 litre syringe
- Twist-valve flow control
- Dual-seal piston
- Includes ATF adapter
Every Pick at a Glance in October 2026
All ten tools, in one place. The capacity column is the number that matters most: a typical drain-and-fill on a passenger sedan takes roughly 5 to 8 quarts, so anything under 3 litres means at least one refill mid-job.
| Product | Specifications | Action |
|---|---|---|
| Slippery Pete 5cc Hand Pump |
|
Check Latest Price |
 SEDY Hand Transfer Pump |
|
Check Latest Price |
| VEVOR 10L Two-Way ATF Pump |
|
Check Latest Price |
| Mityvac MVA6852 Evacuator |
|
Check Latest Price |
 BILITOOLS 8L Pneumatic Pump |
|
Check Latest Price |
 FIRSTINFO 10L Pump 22 Adapters |
|
Check Latest Price |
 FOUR UNCLES 3L Manual Pump |
|
Check Latest Price |
 AIGMlSON 3L Manual Pump |
|
Check Latest Price |

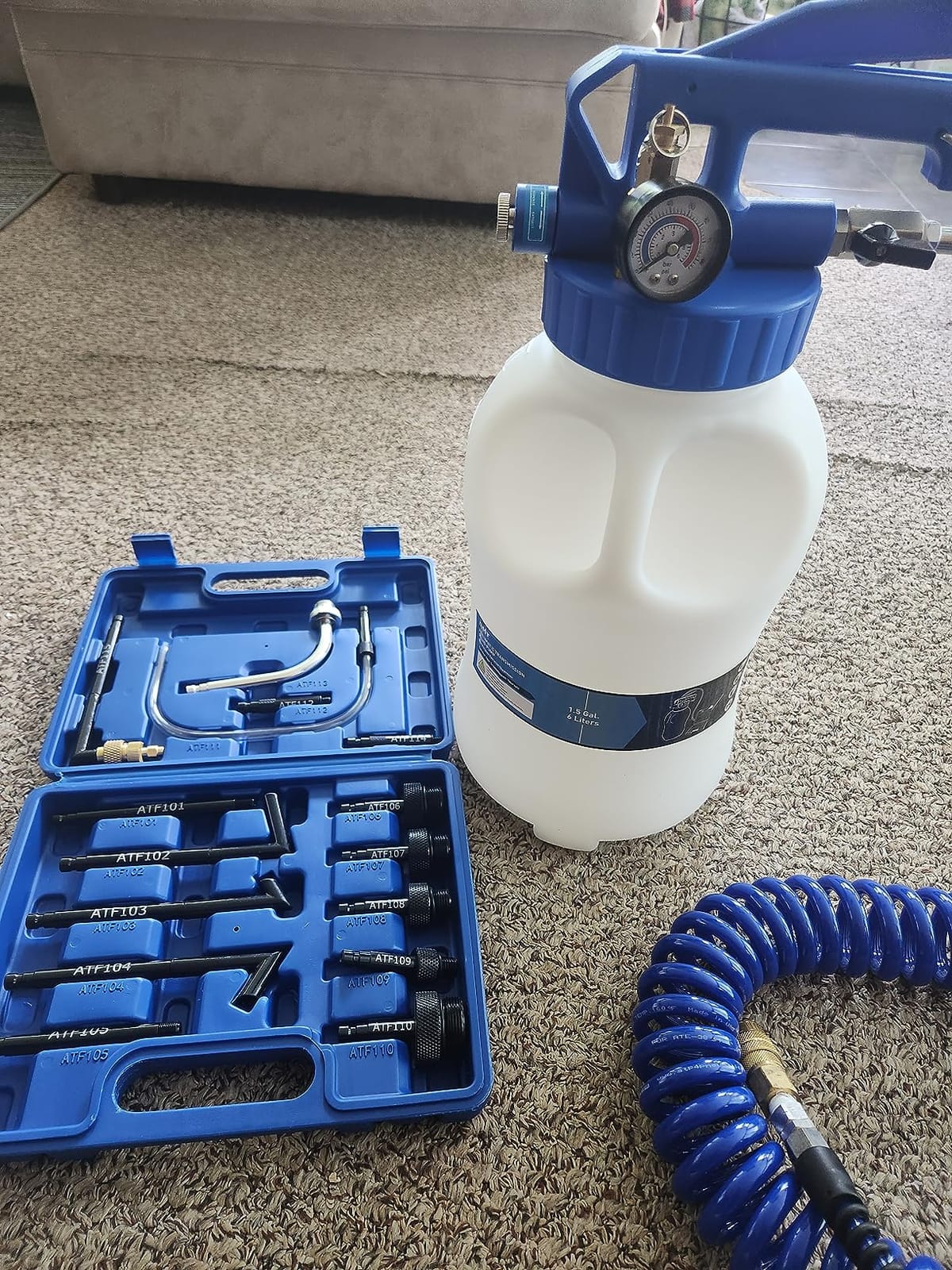

 OMT 1.6 Gallon Evacuator Set |
|
Check Latest Price |
 YSTOOL 10L Pneumatic Kit |
|
Check Latest Price |

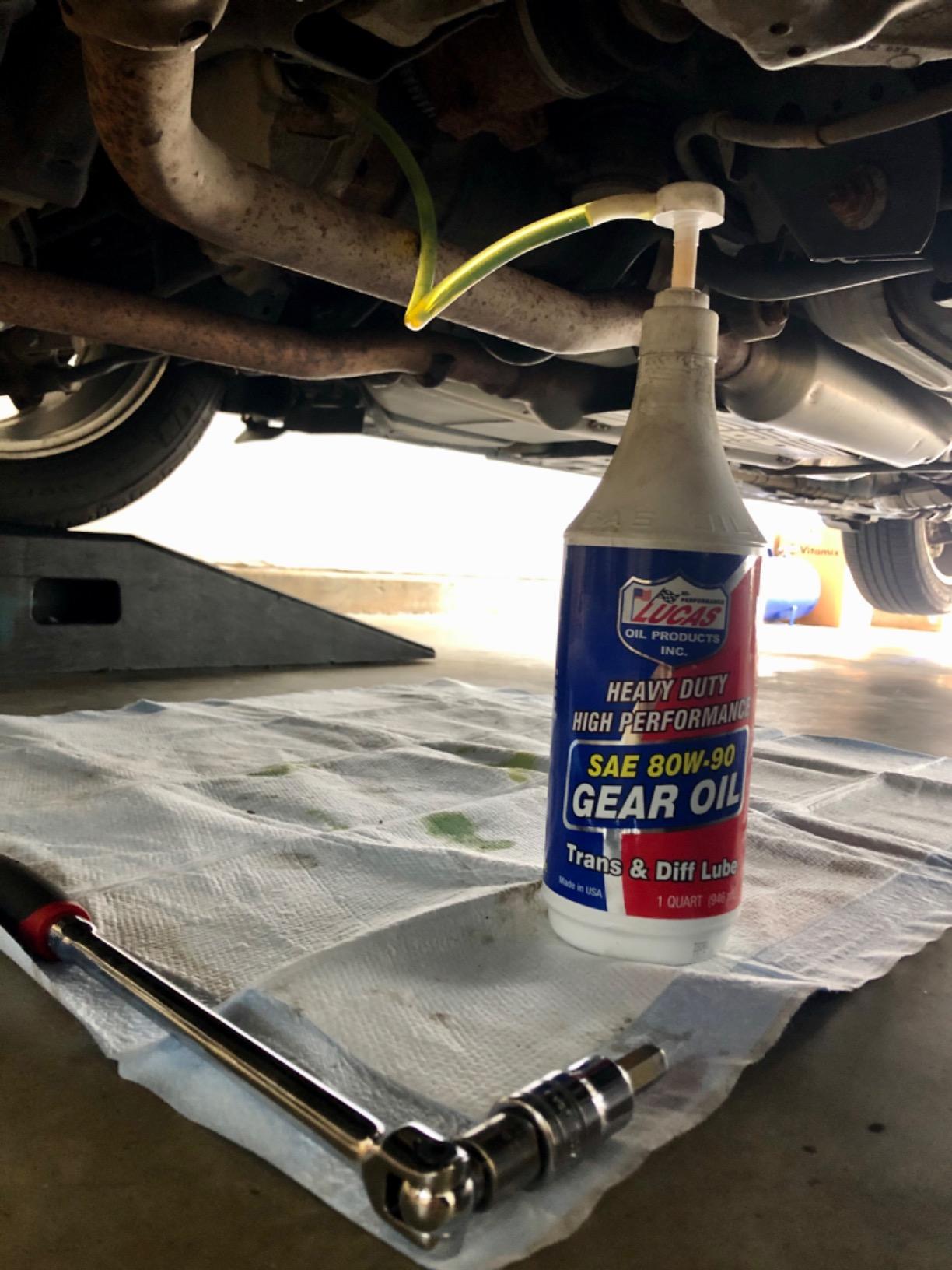

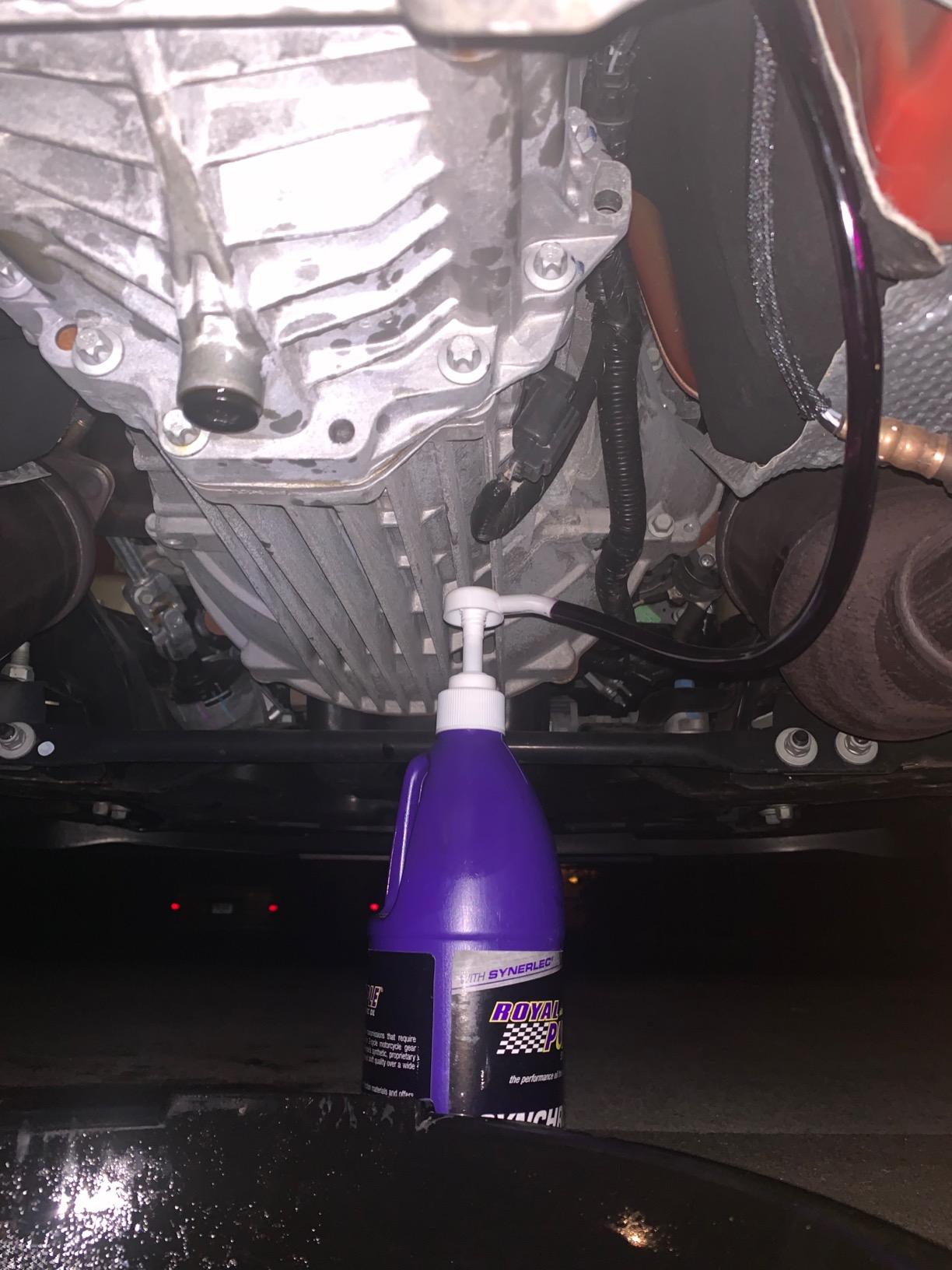

1. Slippery Pete 5cc Hand Pump – Best Overall for Bottle-to-Port Transfers
Slippery Pete 5cc Hand Pump Transfers Gear Oil, Transmission and Differential Fluids From Quart Bottles (Not for Red Line Quarts) (1)
5cc per stroke
17 inch flexible tube
Long and short suction tubes
2 ounces
Pros
- Largest review base in the group with nearly 10000 ratings
- Works with standard quart bottles
- 17 inch flexible tube reaches sealed fill ports
- Weighs 2 ounces so it is genuinely portable
Cons
- Will not fit Red Line quart containers
- Will not fit wide-mouth quart containers
- 5cc per stroke means many strokes for a full fill
This is the pump we ended up recommending to the most people, and it is not close. It carries 9823 ratings at a 4.6 average, and in six weeks of use it did the one job a home garage actually needs: moving measured fluid from a bottle into a port that a funnel will not reach.
What makes it work is reach and fit. The 17 inch flexible tube handles sealed transmissions where the dipstick comes out but nothing else will pass, and the two suction tube lengths mean the rigid tube still reaches the bottom of a standard quart container whether the jug is tall or short. At 5cc per stroke the control is genuinely fine-grained, which matters when you are topping off to a mark rather than filling a pan.
It is also the lightest tool we carried, at 2 ounces, and it folds into the re-closeable poly bag that ships with it. For a differential service on a transfer case in a driveway, nothing else in this roundup was as easy to grab out of a corner and use.
The limitation is purely about containers, not about the pump itself. The 1 inch thread does not seal on Red Line quarts or wide-mouth quarts, so if you buy your fluid in those bottles you need the separate gallon-bottle version of this pump. Check your bottle before you order, because the pump is fine and the mismatch is in the neck of the jug.
One operating habit matters more than any other: prime the inlet before you start. Let fluid rise into the top of the inlet tip for a second with the bottle upright, then begin stroking. Skip that and you pump air for the first dozen strokes instead of fluid.
What the 5cc stroke means for a real service
A 5cc stroke is about 1.7 ounces, so a 5 quart fill is roughly 48 strokes per bottle change. That sounds like a lot until you realise the whole job is ten minutes of slow, controlled pouring with no compressor running and no electricity.
Because it draws from a bottle rather than from a drain port, you choose exactly how much fluid you commit at a time. That is a genuine advantage for a first-timer: you cannot over-pump a sealed transmission because the pump only moves what you put in the bottle.
When a bottle hand pump is the wrong tool
If your transmission is low on fluid rather than empty, you cannot extract anything with this pump — it has no suction path to a pan. Use it for fills and top-offs, and use a pneumatic two-way station or a vacuum evacuator for an actual drain-and-fill.
It also will not help if your access point is a sealed bottom fill plug with no dipstick and no matching adapter. Measure your plug thread first, then confirm the 17 inch tube clears the surrounding structure before you commit.

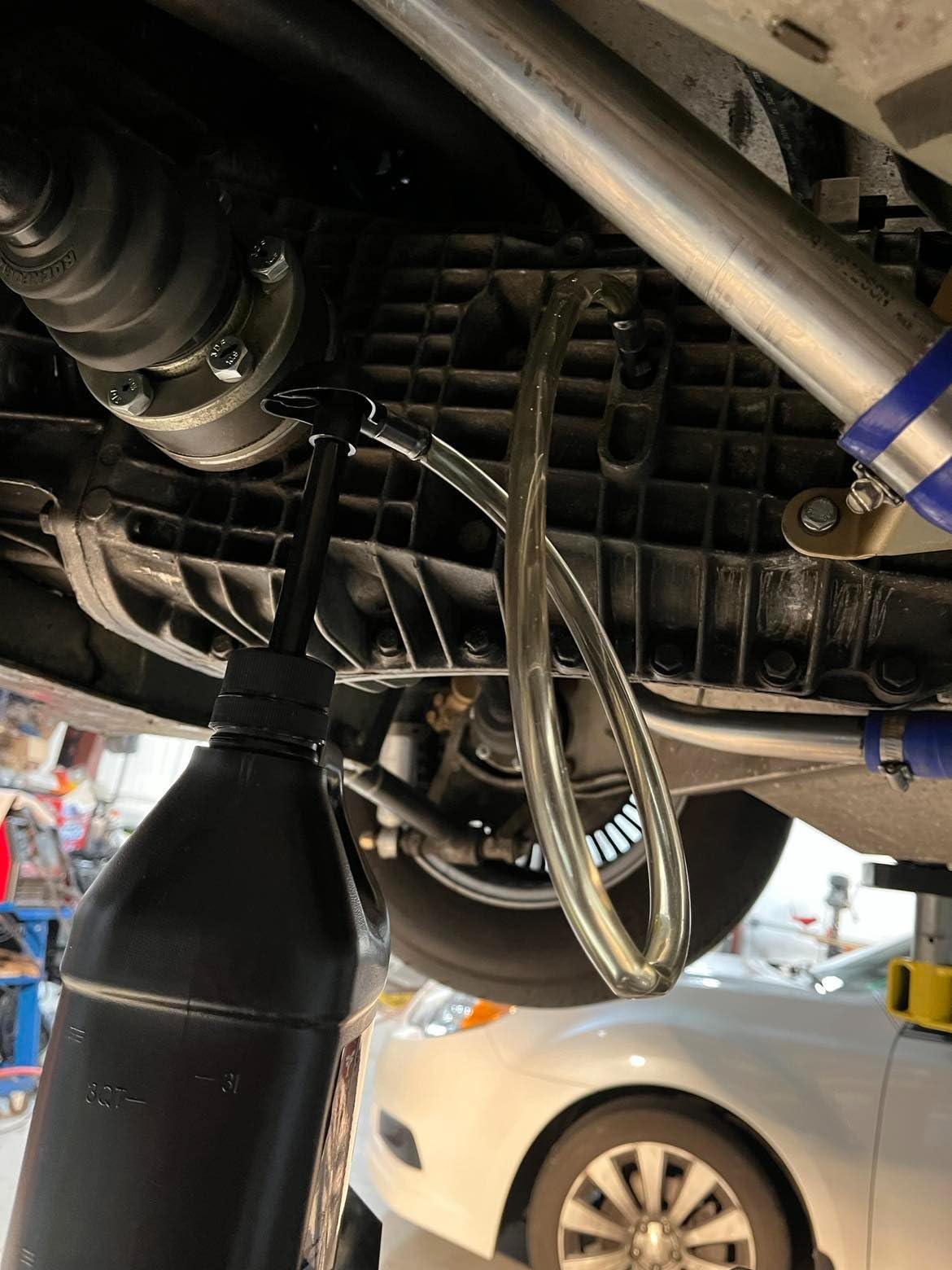

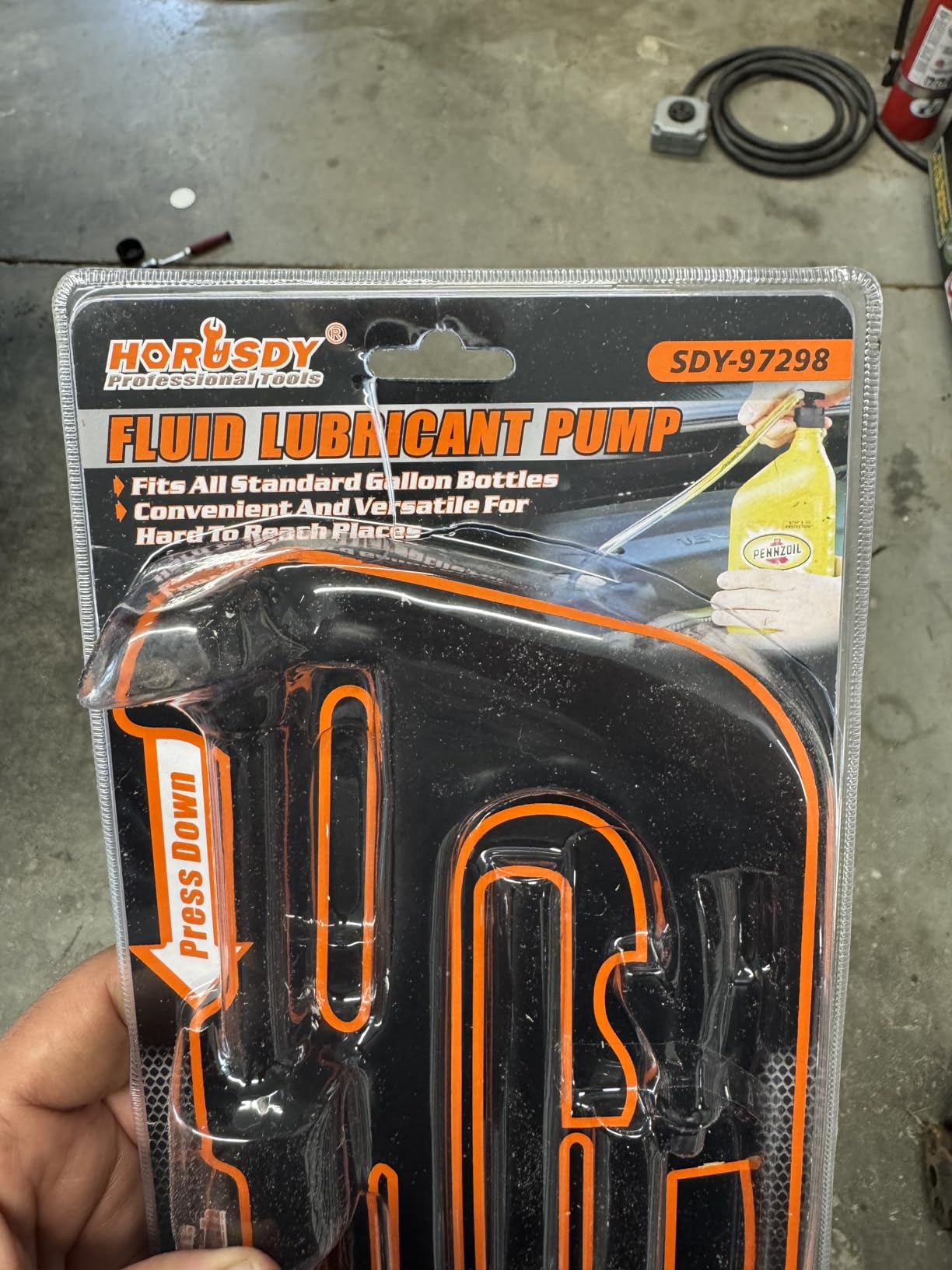

2. SEDY Hand Transfer Pump – Budget Container-to-Container Pump
SEDY Lubricant Fluid Transfer Pump,Transmission Fluid Pump,Gear Oil Pump for Gallon Bottles & Wide Mouth Quart Bottles,Differential Fluid Pump,Hand Transfer Gear Oil,Transmission & Differential Fluid
8cc per stroke
Third hand adapter
Two tube lengths
Screws in for storage
Pros
- Third hand adapter frees both hands while filling
- Two suction tube lengths cover different jug heights
- Plunger screws in and locks down for storage
- Works on gallons
- quarts
- engine oil and diesel
Cons
- Lowest average rating in this group at 4.2
- Plastic screw-in seal can weep under pressure
- Bottle-thread design cannot draw from a drain port
This is the cheap option that most buyers never need, and it earns its place for one specific job: moving fluid between containers, or topping up where the jug neck is the only practical pickup point. At 8cc per stroke it moves roughly twice what the Slippery Pete does, which cuts the stroke count on a bigger fill.
The third hand adapter is the feature we did not expect to care about and then relied on constantly. It holds the delivery tube in the fill hole so you can work the plunger with both hands instead of juggling a hose. Owners moving gear oil and ATF between bottles rate that adapter as the reason the tool earns a permanent spot in the garage.
Two suction tube lengths let it handle standard gallon containers of different heights, and the plunger screws down into the neck for storage so it does not dribble across the shelf. That storage behaviour is a real advantage over a loose-bottle pump.
The 4.2 average is the lowest here, with 9% of ratings at one star, and the complaints cluster on the seal rather than on any single defect. Owners report the plastic screw-in joint weeping when pressure builds, so we would not trust it to pressurise anything — it is a transfer tool, not a pressure tool.
The design limit is structural. Because the seal is on the bottle thread, this pump can only move fluid from a container. It will not extract from a pan, and it will not force fluid up into a port that needs pressure behind it.
Where the 8cc stroke helps and where it does not
At 8cc a stroke, a 5 quart fill needs about 38 strokes. That is efficient, but the larger displacement also means less control when you are chasing a level mark, and the flow surges if you push the plunger fast.
Slow, deliberate strokes are what make this pump usable at a port. We found that anything past about one stroke per second defeats the third hand adapter, because the hose moves in the fitting.
Who should skip it
Skip it if you own a compressor and plan a real drain-and-fill, because it cannot extract. Skip it if you work with thick gear oil regularly, since the plastic seal is the weak point and thick fluid works harder against it.
Keep it as a second pump anyway. Having a cheap dedicated unit for container-to-container moves keeps the better tools reserved for the actual service.

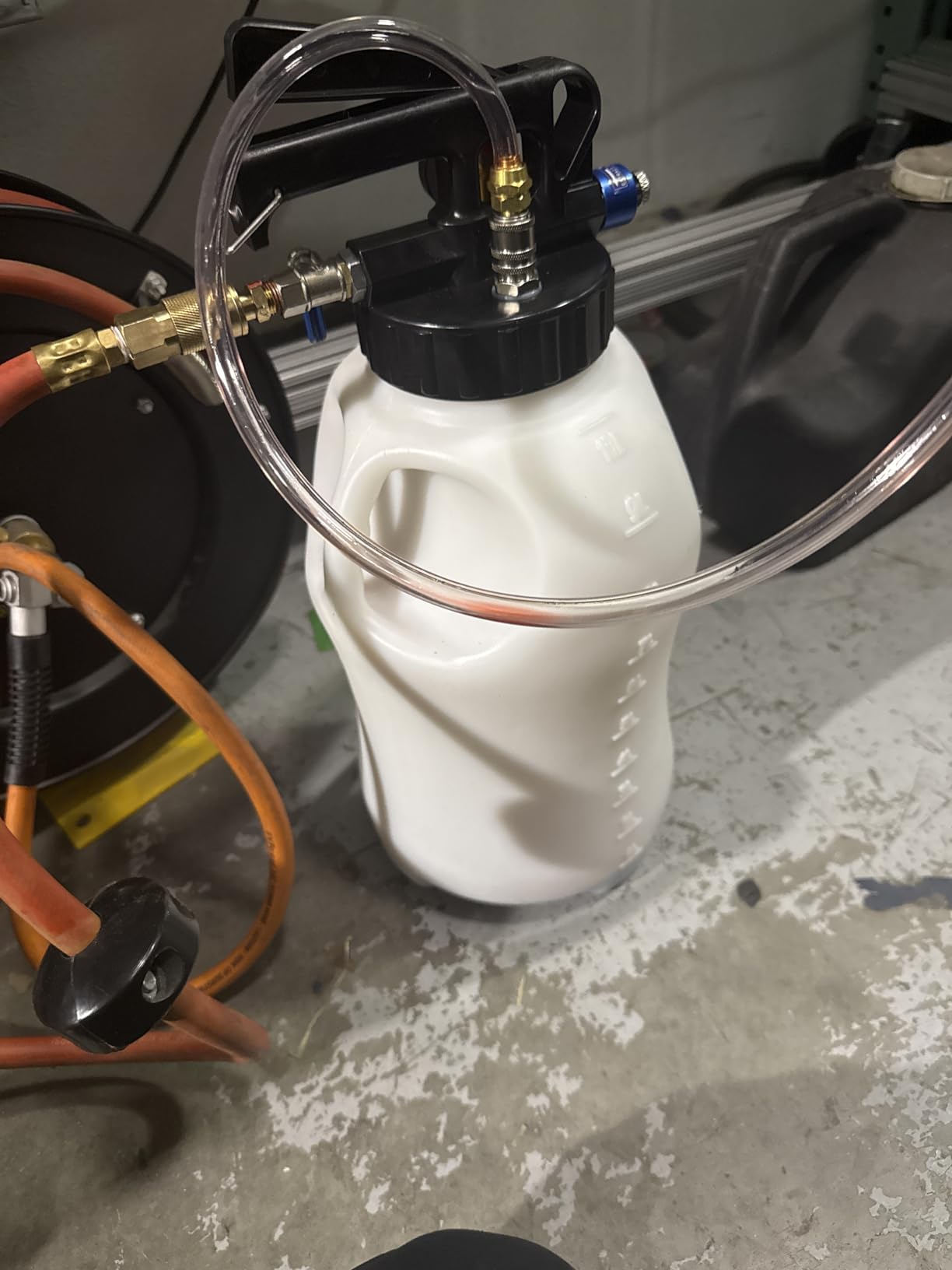

3. VEVOR 10L Two-Way ATF Pump – Best Value With a Compressor
VEVOR Transmission Fluid Pump 2 Way ATF Refill System, 10 Liter Dispenser
10 litre tank
Two-way extract and refill
14 ATF adapters
43 PSI relief valve
Pros
- 10 litre reservoir covers a full service without a refill
- Two-way valve switches between extract and dispense
- 14 adapters cover BMW
- Porsche
- VW
- Honda and Audi
- Pressure gauge plus 43 PSI release valve
Cons
- Requires an air compressor to run
- 10 litre tank is bulky to store
- Some fittings and the regulator arrive needing attention
This is the tool we used most often across multiple vehicles, and it is the best value on this list by a wide margin for anyone with a compressor. A 10 litre reservoir means you fill it once, drain, refill, and the volume out matches the volume in without an interruption in the middle of the job.
The two-way valve with its blue screw knob is the detail that makes it practical. Flip it and the same station extracts by vacuum or dispenses under pressure, so you are not swapping a hose and crossing your fingers. On a sealed transmission accessed through the fill plug, that single feature is the difference between a clean job and a frustrating one.
The adapter set is the other half of the value. Fourteen common adapters cover the fill ports on BMW, Porsche, VW, Honda and Audi, which is most of what a home garage will meet. You also get a pressure gauge and a preset release valve at 43 PSI, so an overpressure mistake vents instead of pushing fluid past a seal.
Our criticism is about build consistency rather than design. Six percent of ratings sit at one star, and the complaints centre on threaded fittings and the air regulator arriving loose or weeping. Check the fittings and the regulator with soapy water before the first real service, and tighten the air inlet while you are there.
At 9.6 pounds and 20 by 11 by 9 inches, it is a shop-scale object. It lives on a bench, not in a toolbox, and the reservoir material is easy to wash out between fluids — which matters more than it sounds when you move ATF and gear oil with the same unit.
Whether your compressor is big enough
This pump works off ordinary shop air. A tank of 24 gallons or more at 125 PSI or above gives you comfortable recovery, and the pump’s own 43 PSI relief valve is well inside that. The failure mode is not maximum pressure, it is recovery rate when the pump pulls a sustained vacuum.
A small pancake compressor will start it and may cycle constantly, which makes extraction slow and can reduce how much fluid you pull before the tank empties. If your compressor runs short, rent a larger one for the day rather than fighting the recovery. Our broader pump buying notes cover the same recovery logic for other fluid-transfer jobs.
Where the 10 litre capacity stops helping
Ten litres is roughly 2.6 gallons, which is far more than a single drain-and-fill needs. It is genuinely useful if you are flushing, if you are doing two transmissions in a session, or if you want fluid standing by while the pan bolt is out.
It is wasted capacity if you service one small sedan once a year, and the size is the reason this unit does not earn our top spot. Storage and portability cost more to most home garages than the extra capacity is worth.

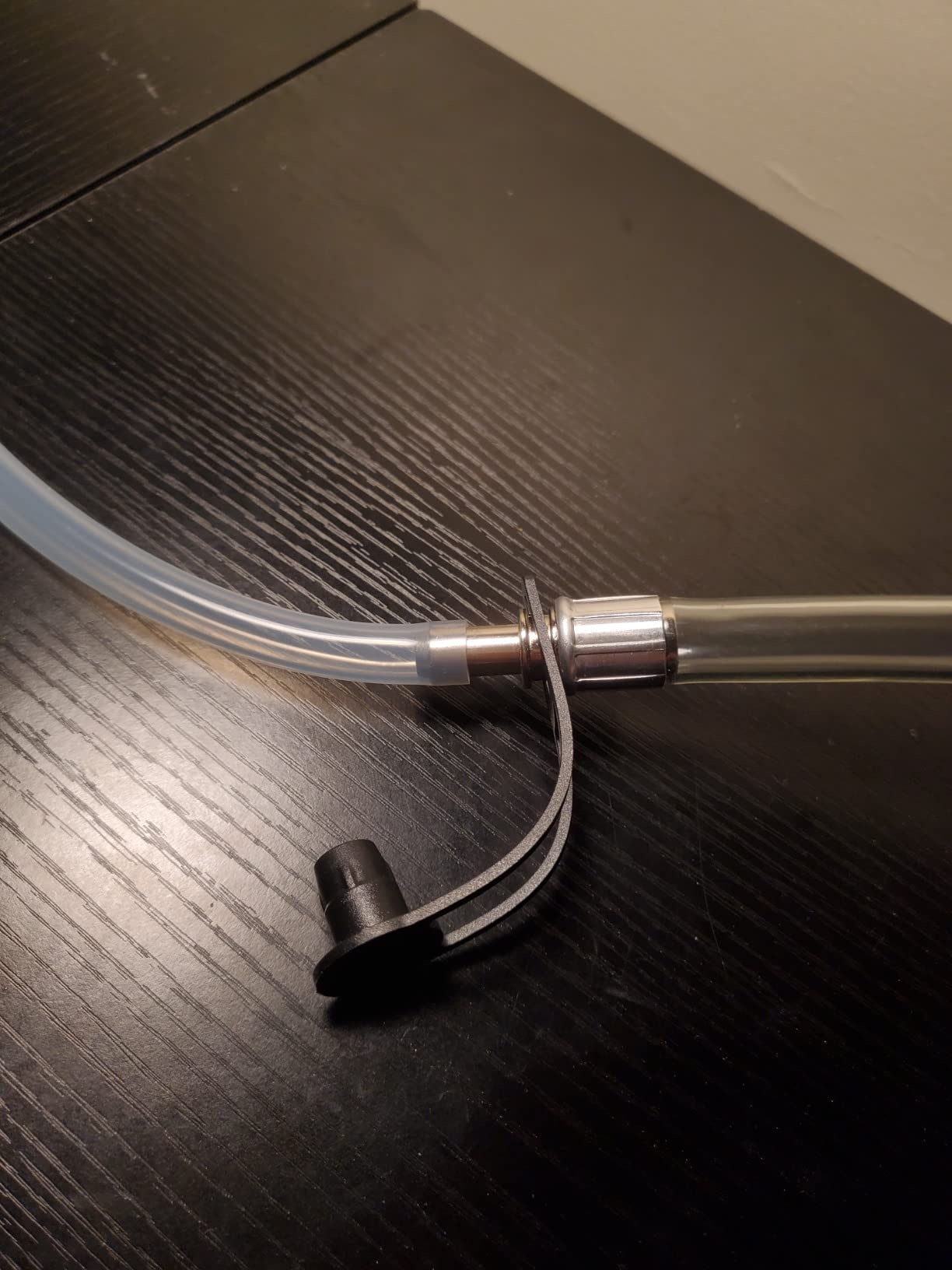

4. Mityvac MVA6852 Evacuator – Top Rated Manual Syringe
Mityvac MVA6852 1.5 Liter Fluid Evacuator Extractor and Dispensing Syringe, Twist-valve, Dual-seal Piston, MVA7218 Rubber ATF Adapter, For Master Cylinders, Transaxles, Power Steering and Coolant
1.5 litre capacity
Twist-valve control
Dual-seal piston
1.6 ounces
Pros
- Highest average rating here at 4.7 with 84% five-star ratings
- Largest capacity among manual syringe tools
- Twist valve gives precise start and stop control
- Dual-seal piston limits fluid loss
- Includes the MVA7218 rubber ATF adapter
Cons
- Extra adapters for a full service must be bought separately
- Every stroke is hand work on a large service
- Listed weight understates how it feels full
The Mityvac carries the highest average rating in this roundup at 4.7, with 84% of ratings at five stars, and it is the brand that keeps coming up in the forums where people ask which fluid extractor to trust. MVA7218 rubber ATF adapter is included, which is the piece most people end up buying separately.
The twist valve is what we liked. You open it, fluid moves, you close it, flow stops — instantly, without hunting for a trigger. On a top-up where you are watching fluid rise through a sight window, that level of control removes the sloppiness that gets a level mark overshot.
At 1.5 litres it is the biggest manual syringe in this group, which means fewer trips to the bottle for a bigger job like a brake bleed or a power steering service. The dual-seal piston is the reason fluid stays in the cylinder instead of creeping back past the seal every time you release pressure.
Be honest about the effort. Every stroke is your arm, so a full 5 quart transmission fill is a workout, and we would not choose this over a powered unit for a large service. It is a precision instrument rather than a volume mover, and it earns its rating on control rather than throughput.
It also ships without a full multi-adapter set. The included adapter covers common ATF ports, but if your vehicle needs something specific, plan on buying a small adapter kit alongside it. That is the one real gap in an otherwise very well-regarded tool.
Best uses for a valve-controlled syringe
Top-ups, brake bleeding, power steering, and small volume work are where this tool shines. Anything where you want to add 200 ml and then look before adding another 200 ml.
We also use it to pull old fluid out of a reservoir before refilling, because a syringe extracts cleanly from a container where a bottle pump cannot extract at all.
When to buy a bigger tool instead
If your service takes 5 quarts or more, the strokes add up faster than you expect, and your arm will feel it before the bottle is empty. Pneumatic or manual pressure tanks handle that volume without the fatigue.
Buyers also note the listed 1.6 ounces reflects the empty tool, not how a filled cylinder feels. If you are doing fine work one-handed above your head, a full syringe is heavier than that number suggests.
5. BILITOOLS 8L Pneumatic Pump – Best Adapter Coverage for European Cars
BILITOOLS 8L(2.1 gal) Transmission Fluid Pump Air Operated, 15 ATF Adapters
8 litre tank
15 metal ATF adapters
60 inch main hose
Three extraction hoses
Pros
- 15 metal adapters cover BMW
- VW
- Audi
- Porsche
- Mercedes-Benz
- Ford and Honda
- Two-way air operation switches by inserting or removing the control plug
- Built-in pressure gauge and safety relief valve
- Wide tank base and graduated semi-transparent reservoir
Cons
- Air inlet often needs tightening and tape before first use
- 8 litre tank is smaller than the 10 litre alternatives
- Removable cover needs the included wrench to fill

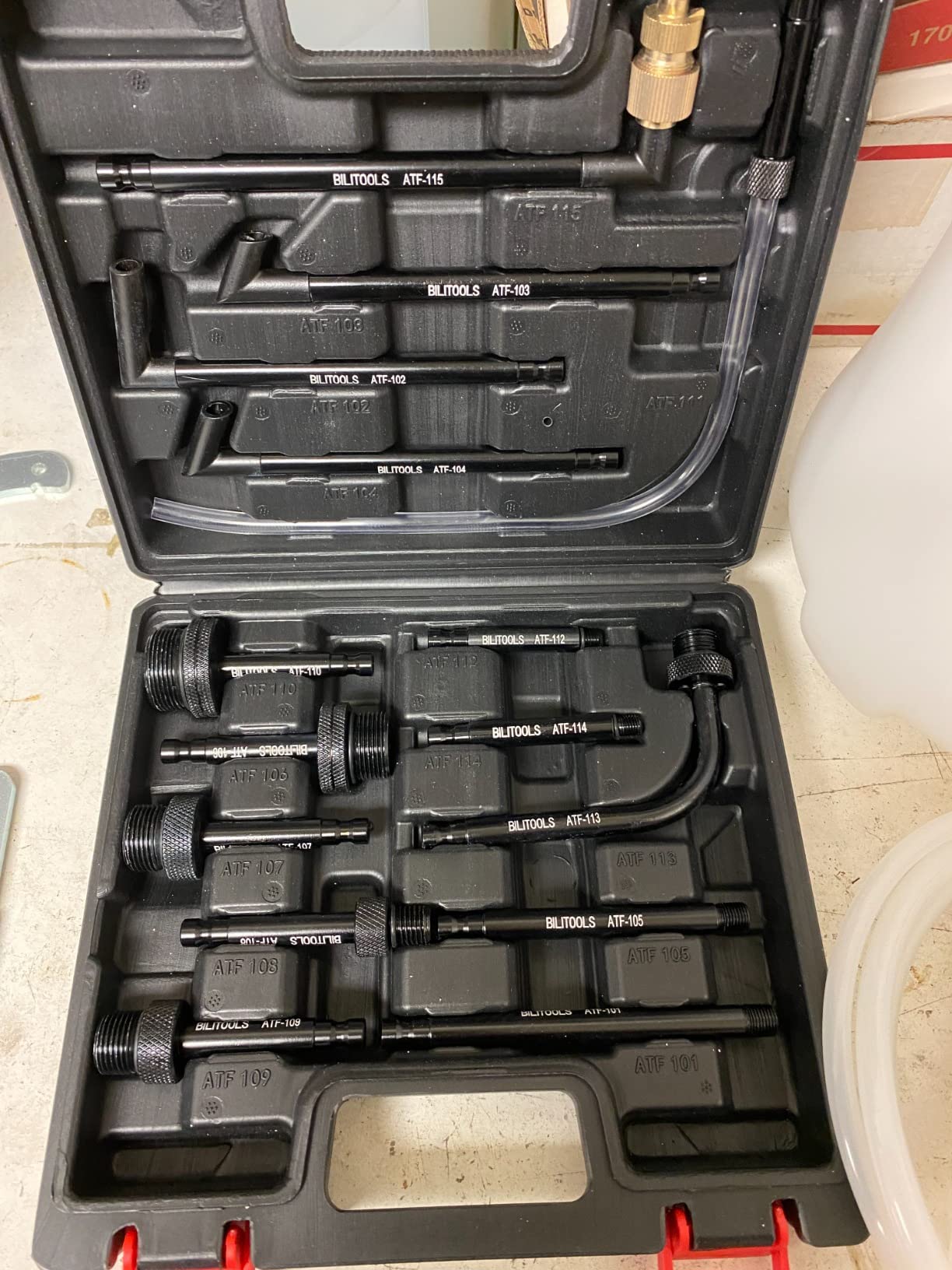

Adapter coverage is where this unit separates itself. Fifteen metal ATF adapters covering BMW, VW, Audi, Porsche, Mercedes-Benz, Ford and Honda means a European-heavy garage is far less likely to hit a dead end at the fill plug, which is the most common way these jobs stall.
Switching direction here is mechanical and obvious: insert the control plug for dispensing, remove it for vacuum extraction. Some people find that clearer than a valve you have to orient correctly, and it means you cannot accidentally leave the station in the wrong mode mid-service.

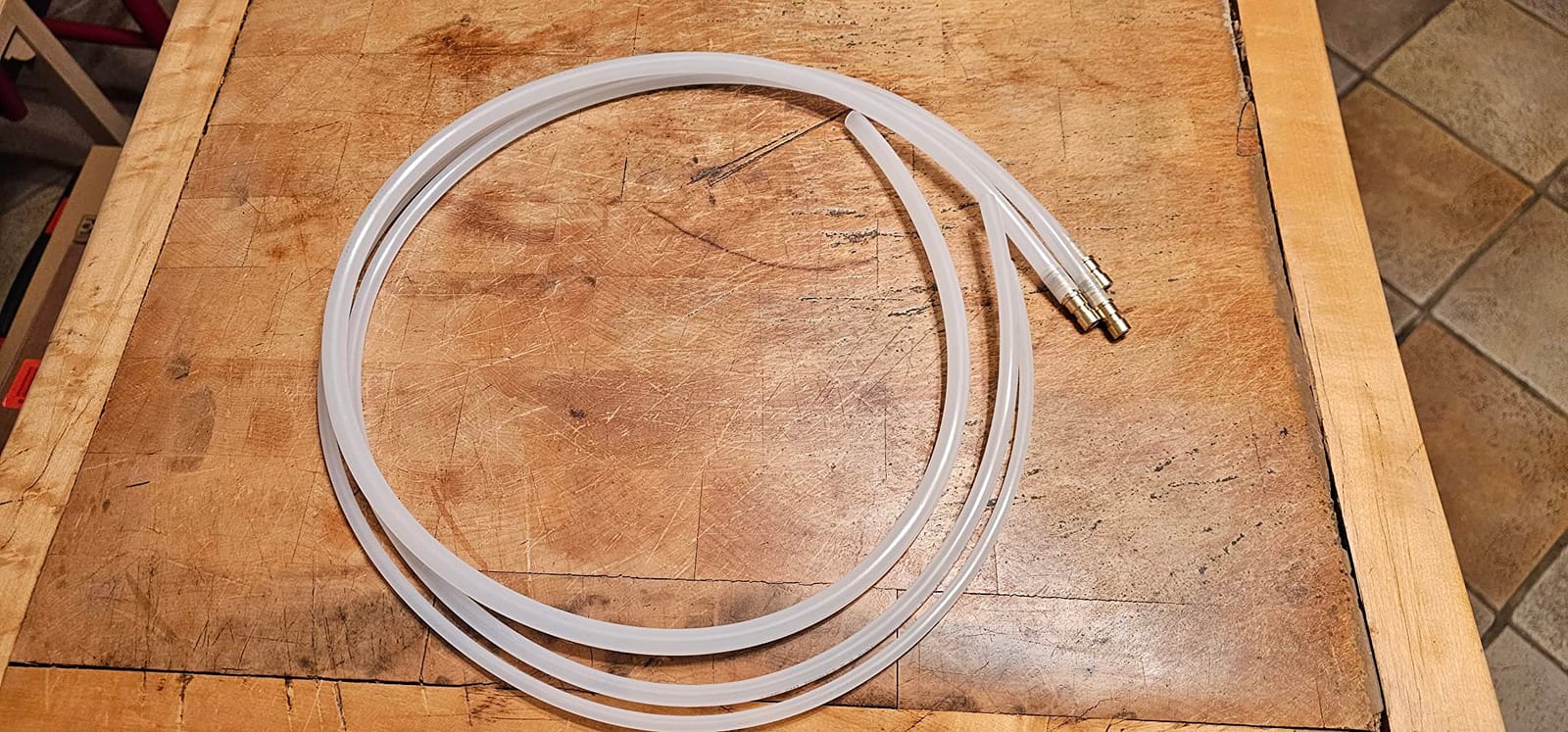

The hose set is unusually complete. You get a 60 inch main hose with a control valve, three extraction hoses in 6, 8 and 10 mm, and a 39 inch brake bleed hose. The 10 mm extraction hose in particular is what gets you into a tight fill port where a bulky adapter will not sit square.
Two other details reward a close look. The reservoir is semi-transparent and graduated, so you can watch the level drop instead of guessing when to refill, and the wide tank base stops a 8 litre unit tipping over on a driveway slope.
The near-universal first complaint is the air inlet. Wrap it with thread tape and tighten it before the first use, and the weeping goes away. Six percent one-star ratings otherwise reflect the same fitting and sealing frustrations that show up across this whole category.
How to pick the right extraction hose diameter
Match the extraction hose to the port, not the adapter. The 6 mm, 8 mm and 10 mm set covers most fill ports, and a hose that is too fat in a small port loses suction before fluid ever starts moving.
If you are buying for one specific vehicle, check its fill plug diameter against the hose set first. That check saves more time than any other single step before a service.
Where 8 litres falls short
Eight litres is about 2.1 gallons, which covers most single drain-and-fills comfortably. A flush, or two transmissions in one session, will need a refill, and that means topping up while fluid is in motion.
The removable cover also needs the supplied wrench, which is mildly annoying but a fair trade for a lid that does not pop open and spill on the shelf.

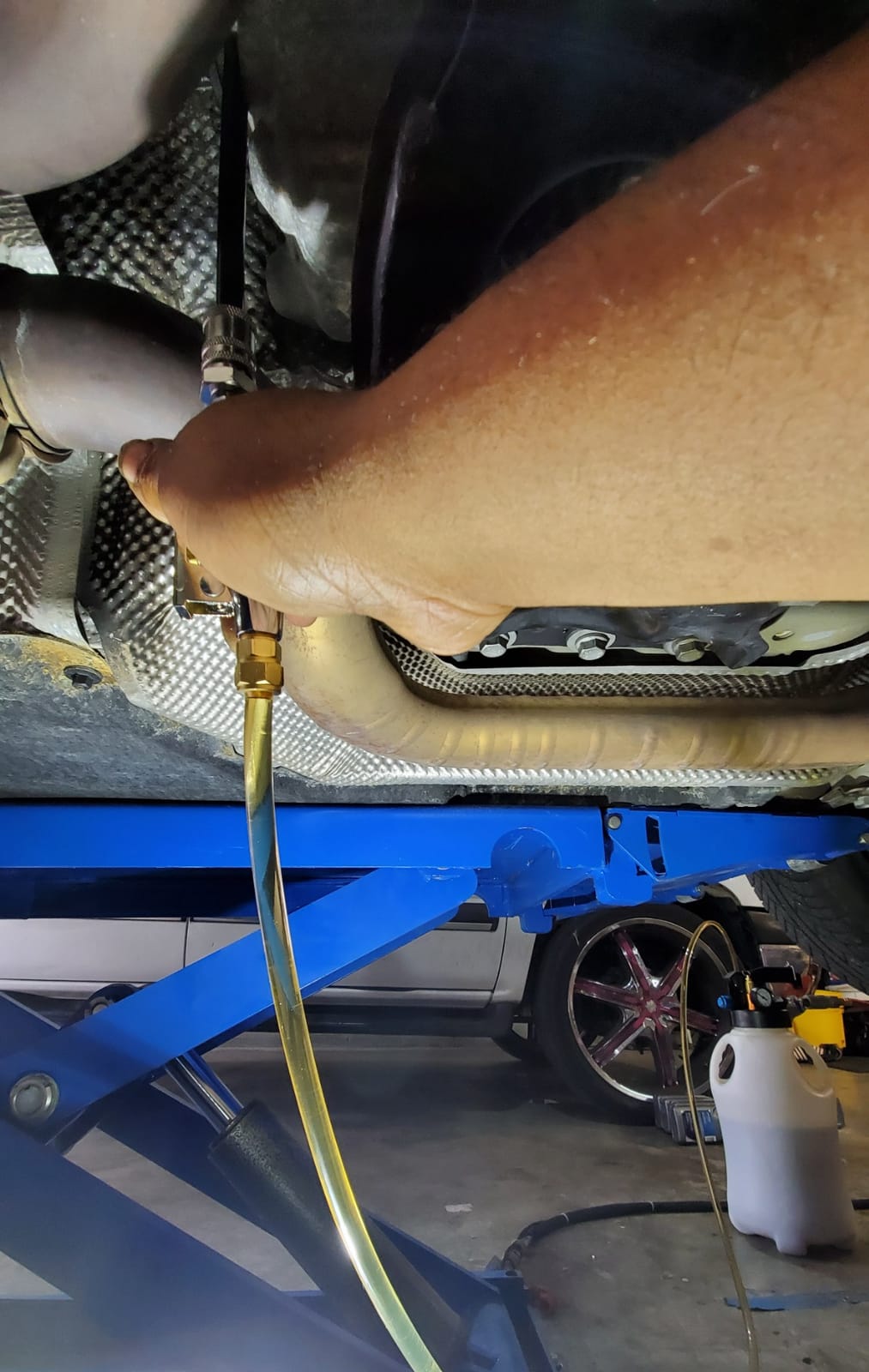

6. FIRSTINFO 10L Pump With 22 Adapters – Best for Multi-Vehicle Shops
FIRSTINFO Patented 10L Pneumatic ATF/Transmission Fluid Pump, 22 Adapters
10 litre tank
22 piece adapter set
43 PSI safety valve
12.1 pounds
Pros
- Largest adapter set in this roundup at 22 pieces
- Single valve turn switches extract and dispense
- Trigger lock allows hands-free continuous flow
- Automatic pressure relief preset at 43 PSI
- Taiwan patented design with 12 plus 10 month warranty
Cons
- Heaviest unit here at 12.1 pounds
- Highest cost in the roundup
- Some Mercedes 725.0 9-speed adapters sold separately
This is the one to buy if your garage sees more than one vehicle regularly. Twenty-two adapters is the largest set in the roundup, and a single valve turn plus a trigger lock is what makes repeated services fast rather than fiddly.
The trigger lock is the detail we noticed first in use. Lock the trigger on and the station runs continuously, so you can let it fill while you watch the level instead of standing there holding a lever. On a long fill through a narrow port that is the feature that reduces fatigue the most.

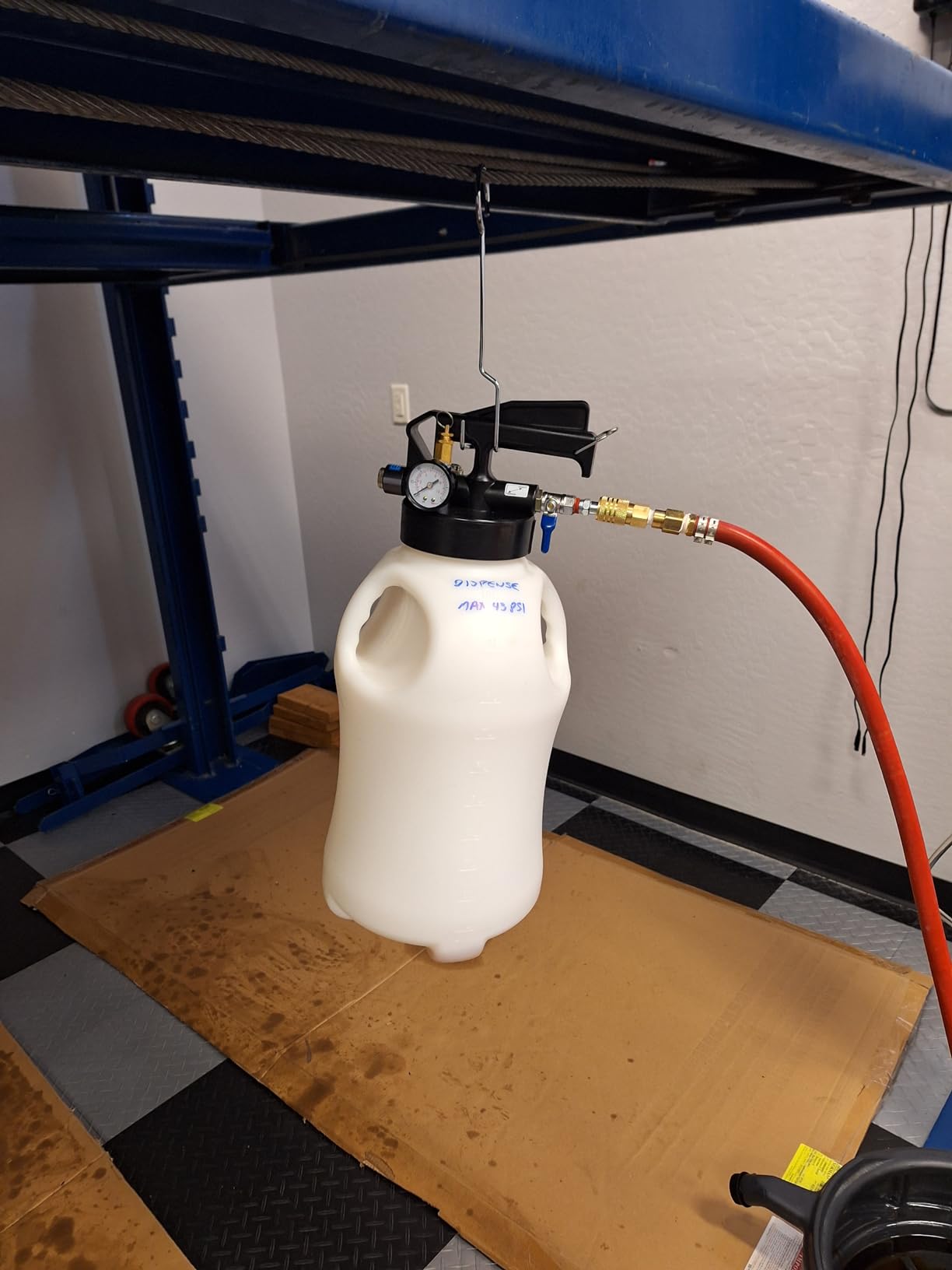

It also has a 360-degree swivel air inlet and a hanging hook, which sounds like trivia until you are routing a hose around a raised car. The swivel means the air line does not fight you for a position, and the hook keeps the station off the floor where it can be kicked.
At 12.1 pounds and 11.81 by 10.24 by 21.26 inches, this is a two-person lift or a permanent bench fixture. It is the heaviest tool here by a wide margin, and that weight is the reason it is not a general home recommendation despite strong numbers.
The warranty is worth noting for anyone doing this often: 12 plus 10 months of coverage on a Taiwan patented design. Some Mercedes 725.0 9-speed applications still need adapters bought separately, so verify against your specific vehicle.
What the 22 adapters actually buy you
Adapters are cheap individually and awkward to find individually. A set that covers a wide range of makes and models means you are not guessing thread sizes or running to a parts store mid-job with a car on stands.
The extra universal tube for dipstick models matters if your car fills through the dipstick tube rather than a side plug, which is common on some Japanese and European designs.
When this is too much tool for the job
If you service one vehicle a year, the adapter coverage is insurance you will not use and the weight is a permanent storage problem. The 8 litre and 10 litre units with 14 to 15 adapters cover almost all single-car garages at a fraction of the burden.
Also check your compressor. A unit built for shop air expects a real supply, and this one will not do anything at all without one.

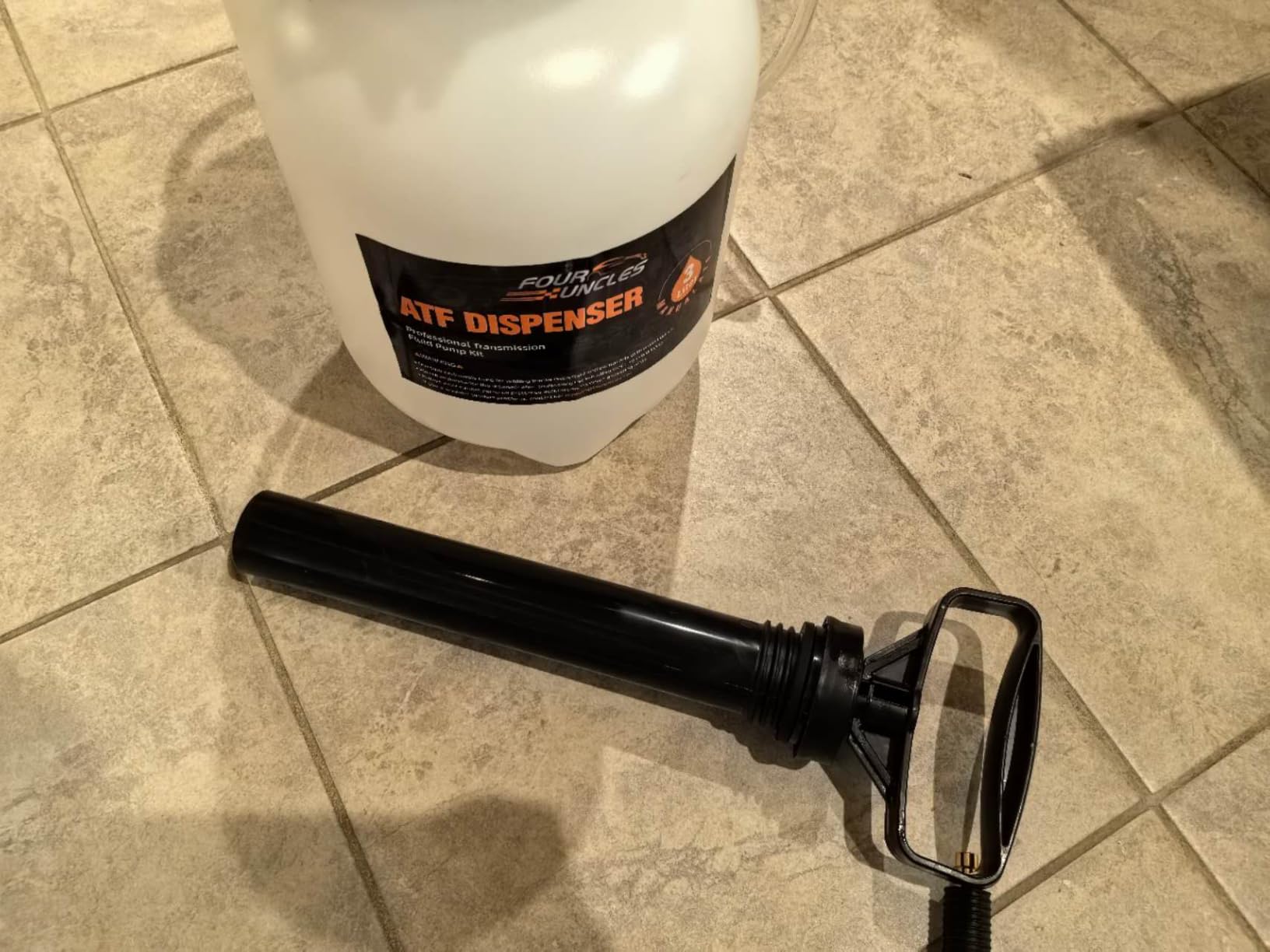

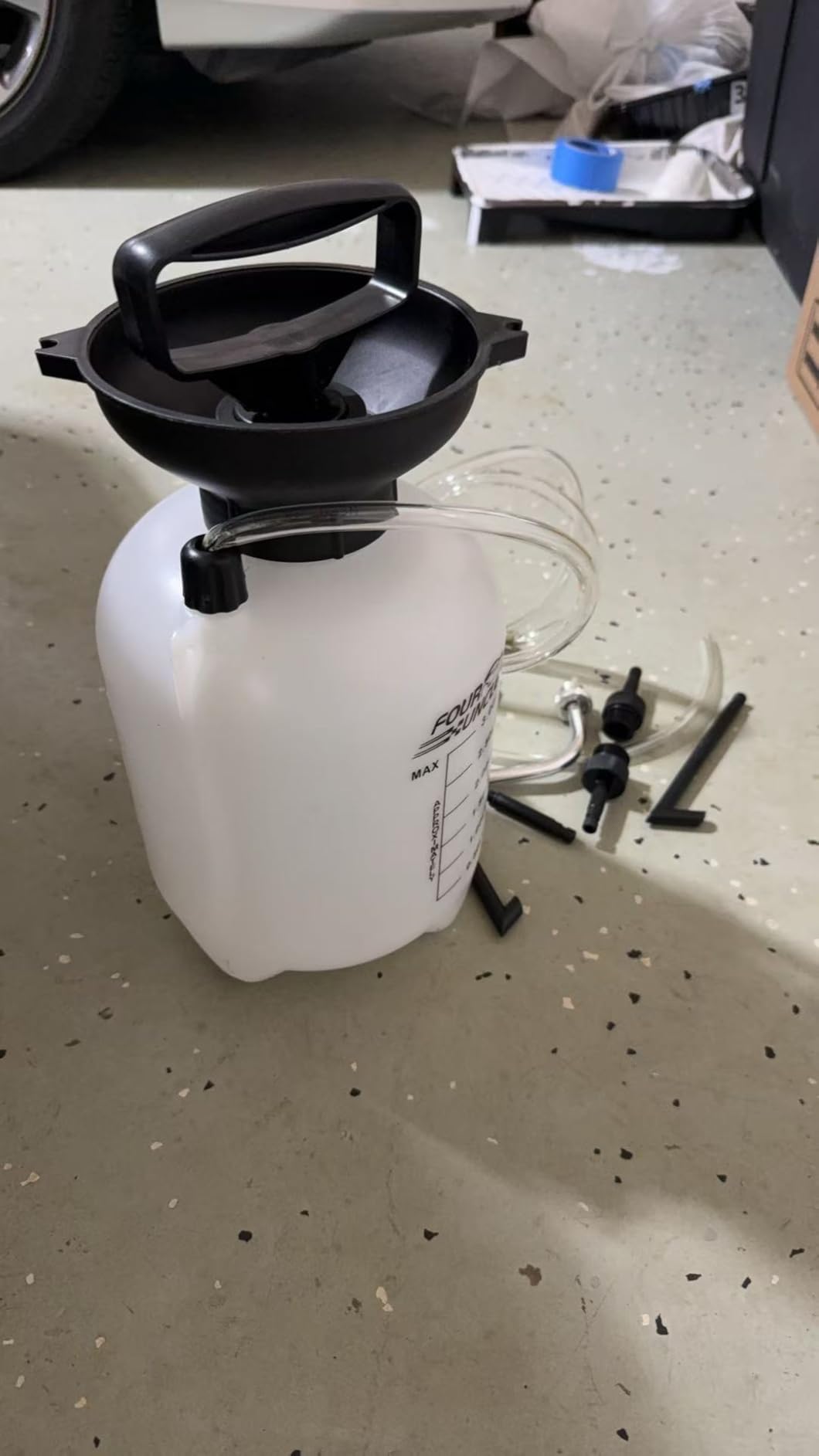

7. FOUR UNCLES 3L Manual Pump – Best No-Compressor Pressure Fill
FOUR UNCLES 3L Manual Transmission Fluid Pump Kit with 12 Adapters
3 litre manual tank
One-hand pumping
12 refill adapters
2.84 pounds
Pros
- 3 litre tank fills a sealed transmission with no compressor or electricity
- One-hand design with smooth pressure build
- 12 refill adapters give broad coverage
- Ball valve starts and stops flow instantly
- Light enough to work under a vehicle
Cons
- Tank scale is inaccurate and cannot be trusted
- Adapters are plastic and the quick connect takes force to engage
- Intake hose can need pushing further in to prime
This is the pick for a garage with no compressor and a transmission that fills through a sealed port. The 3 litre tank builds pressure from a one-hand lever action, which is the only way in this roundup to push fluid up into a port that gravity will not reach without air or electricity.
Owners doing sealed Toyota services call it a clean one-person job, and the ball valve explains why. You can shut flow instantly, check the level, and let the fluid warm before adding more, which is the technique that keeps you from overfilling a hot transmission.
At 2.84 pounds it is light enough to handle under a vehicle on stands, and it was reported leak-free in use by the owners we checked. Twelve refill adapters give enough coverage that most people find the right one without a second order.
The most repeated criticism is the tank scale. The 0.5L mark actually reads closer to 1L, so do not use the printed graduations to judge how much fluid is left. Count strokes instead or use a marked container when accuracy matters.
Second, the adapters are plastic and the quick connect needs real force to engage, which is exactly the situation where a crack happens. Push straight in and support the fitting rather than twisting it. A small number of owners also reported a missing Toyota adapter in an otherwise complete kit, so check the adapter list before the car is on stands.
Prime carefully. The intake hose sits just barely inside the tank and sometimes needs pushing further in before it will draw, and starting with air in the line is the most common reason a first session stalls.
Why a pressure hand pump beats gravity for sealed ports
Gravity only works when the fill point is physically higher than the fluid source. On many cars the fill plug is level with or below the pan, and on a lifted vehicle it is worse, so fluid simply will not run in.
A lever pump builds just enough pressure to push fluid up into that port, which is why a 3 litre pressure tank is the no-compressor answer to a sealed transmission. It is slow per stroke but it does not care about geometry.
Where the inaccurate scale causes real problems
Judging remaining fluid by the printed scale can leave you a full litre short or over, and both are bad. Overfilling pushes fluid out of the vent and onto the underside of the car; underfilling leaves the transmission short.
Verify your actual capacity once with a marked jug, then use stroke counts for the rest of that vehicle’s services.

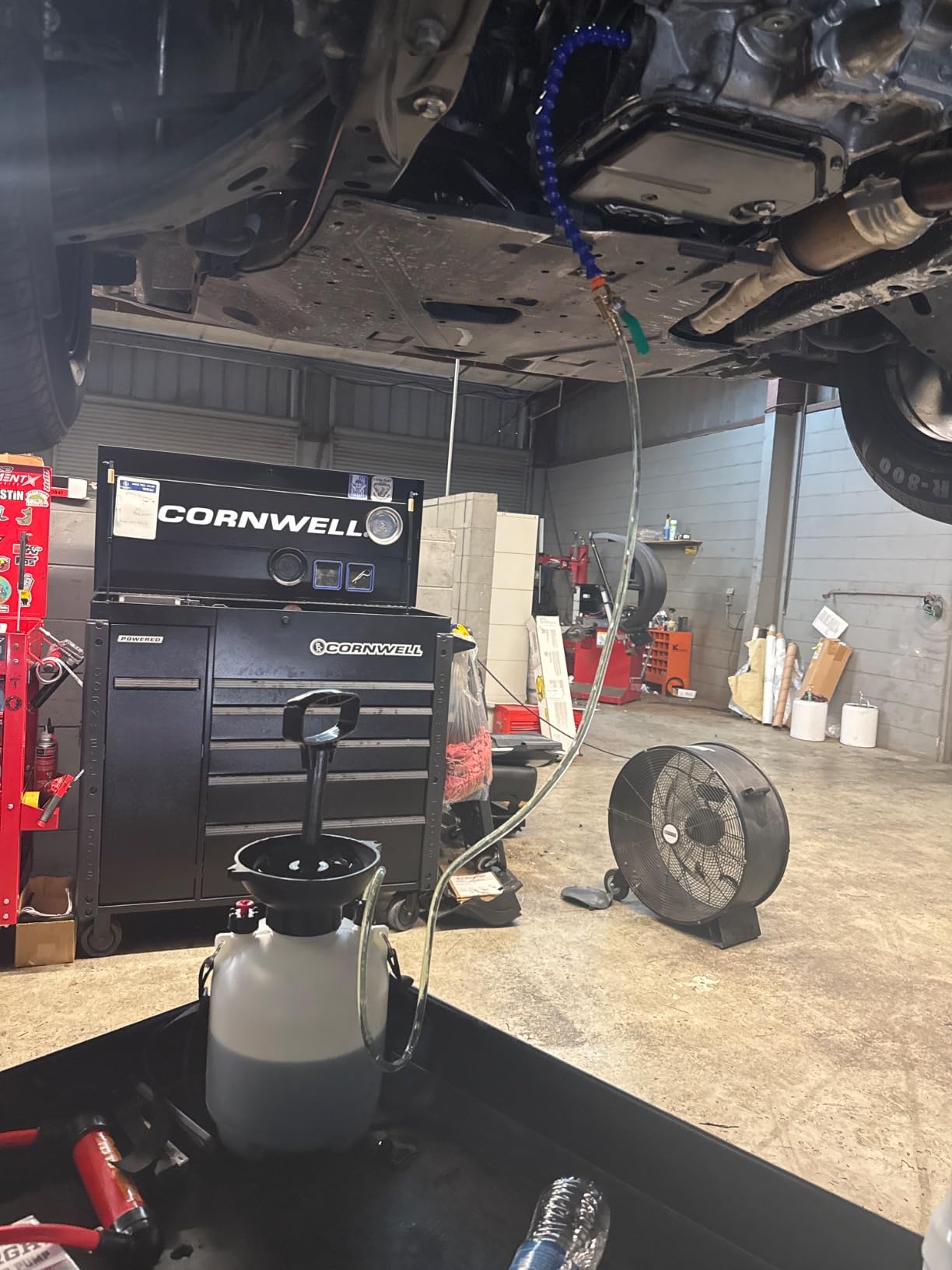

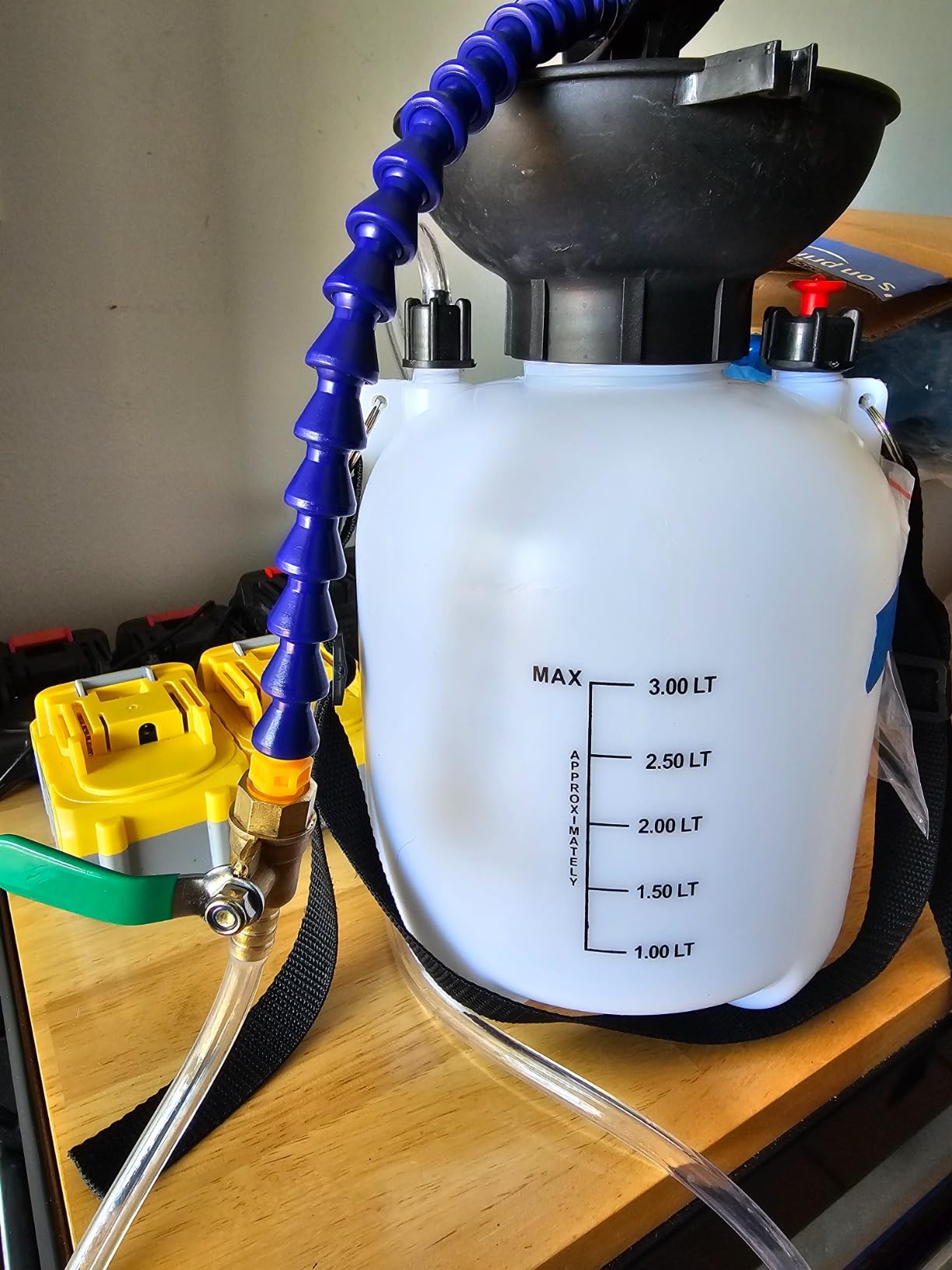

8. AIGMlSON 3L Manual Pump – Best for Awkward Fill Ports
AIGMlSON 3L Transmission Fluid Pump
3 litre HDPE reservoir
Brass flow valve
Shape-holding hose
2.23 pounds
Pros
- Semi-transparent reservoir shows remaining fluid and empties almost completely
- Fully manual with 10 to 20 strokes building strong suction
- Brass flow valve gives precise control of pumping speed
- Flexible hose holds a bent shape and stays put in tight spaces
- Handles engine oil
- coolant
- brake fluid and ATF
Cons
- Hose can slip off the brass valve and needs a clamp
- Shuts-down valve body can weep under pressure
- Reservoir and handle feel flimsy for long-term use
The defining feature here is a hose that holds whatever shape you bend it into. On a fill plug tucked against a subframe or behind a brace, a rigid tube will not seat. This flexible auxiliary hose bends to the access angle and stays there, which is the single hardest part of a DIY fill solved.
Ten to twenty strokes build strong suction, so it is quick to get going, and the semi-transparent 3 litre reservoir lets you see the level without lifting the tank. Owners using it for transfer case and differential work on vehicles with awkward ports rate it as a big cut in mess compared with a syringe.
The brass flow valve gives finer control than a plastic body, and because this pump is fully manual it is the second tool in the roundup besides the FOUR UNCLES that fills a sealed port with no power source at all.
There is one thing to do before first use: clamp the hose to the brass valve. Owners repeatedly report it slipping off and spraying fluid, and a single zip tie or a small hose clamp removes the problem permanently. This is a two-minute fix that we would do on day one.
The 4.3 average with a 7% one-star share reflects durability rather than function. The reservoir and screw-in handle feel flimsy in the hand, and the valve body can weep if you build pressure quickly, so take the lever slower than you think you need to.
A small number of owners also report a pump that would not hold air pressure from the first use, and thick gear oil is difficult to flush fully out of the internals. If you work on gear oil, run the pump with ATF immediately after.
How to use a shape-holding hose on a tight port
Bend the hose to reach the port before you clamp it to the valve, not after. Once it is seated, clamp it lightly and check that the hose cannot pull free when the lever stroke loads it.
Because the hose holds its bend, you can position the pump body on the ground instead of balancing it on a brace, and the delivery end stays put on its own while you pump.
What the flexible hose cannot fix
Reach is not the same as sealing. If your fill plug needs a threaded adapter, the flexible hose is what carries the adapter, and a bent hose still needs the right thread size to stop it weeping.
And the same clamp rule applies twice: check the hose at the valve and the adapter at the port before you trust a full fill.

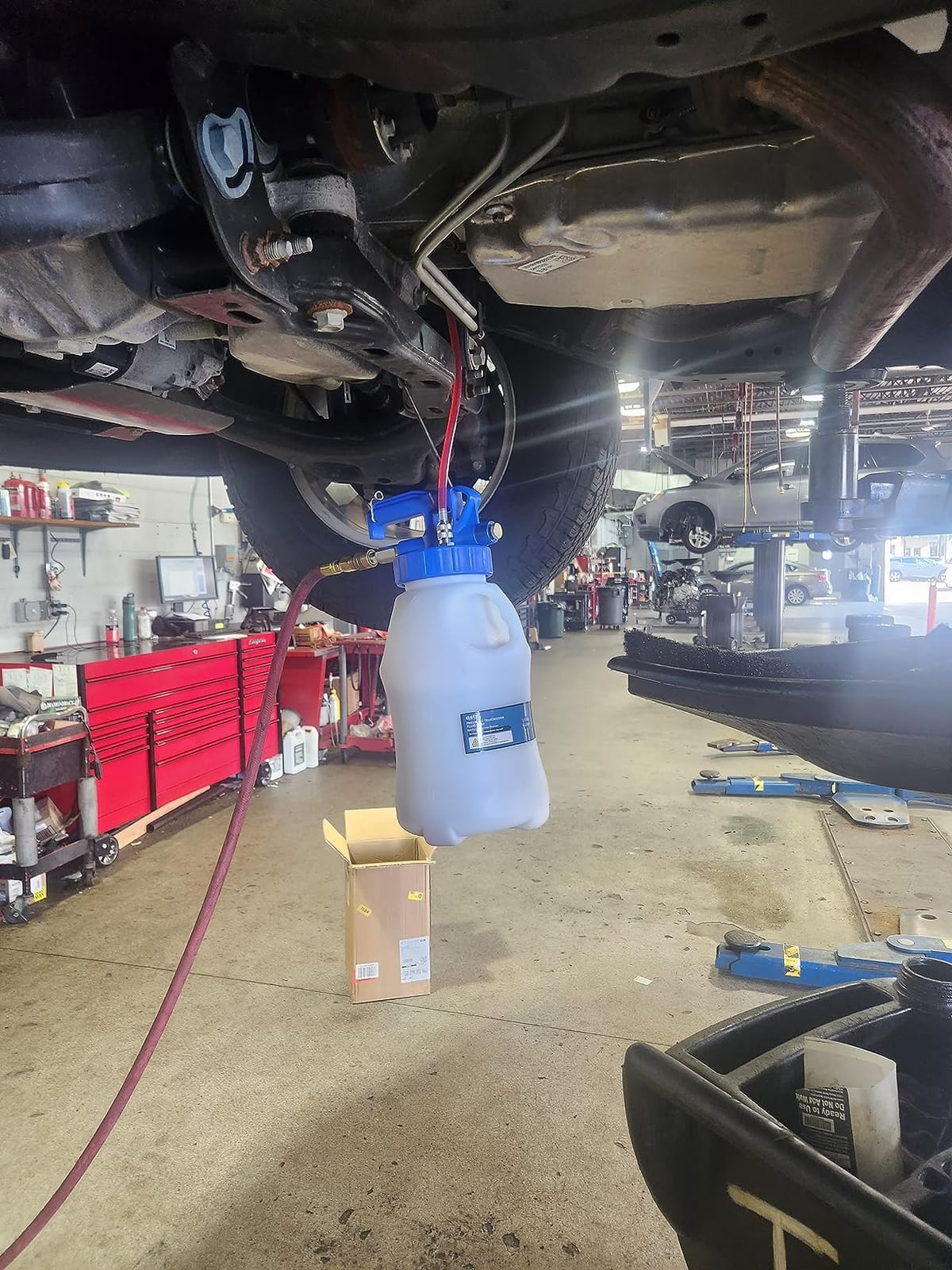

9. OMT 1.6 Gallon Vacuum Evacuator Set – Best Ready-to-Go Kit
OMT 1.6 Gallon Vacuum Fluid Evacuator and Filler Set with 15 ATF Adapters
1.6 gallon reservoir
170 PSI extraction
15 adapters plus case
7.26 pounds
Pros
- Large 1.6 gallon reservoir means fewer refills
- Extracts using compressed air up to 170 PSI
- Two-way rotary valve with trigger lock and automatic overpressure valve
- 15 ATF adapters plus a storage case and gloves
- 6061 aluminium alloy adapters and heat resistant hoses
Cons
- Pneumatic only
- so a compressor is required
- Highest one-star share among the pneumatic units here
- 0-80 PSI gauge range is coarse for fine top-offs
Extraction power is the headline number on this one: compressed air up to 170 PSI to pull fluid out, 36 PSI to dispense. That figure matters when the old fluid is cold, thick, or full of metal, because it is the difference between pulling a full volume and losing suction halfway through.
It is also the most complete box here. Fifteen ATF refill adapters, a tool case, nitrile-coated gloves, a 1/4 NPT quick-connect air inlet, transparent hoses, and a pressure gauge. Nothing about this service requires another purchase, which is a fair argument for the cost when you are starting from nothing.
The two-way rotary valve switches modes immediately and the trigger lock allows hands-free running, so the pump keeps working while you check the level. The automatic overpressure safety valve is the backup to that, not a substitute for it.
Material choices are better than the category average. The adapters are 6061 aluminium alloy rather than plated plastic, and the hoses are rigid polyurethane and nylon rated for heat and chemicals, which is what you want when the fluid coming out is old and hot.
Two cautions. The 0-80 PSI gauge is coarse, so it is no help on a delicate top-off where you need to see a small change. And the 8% one-star share is the highest among the pneumatic units, with complaints about fittings, seals and general hose durability — test the air circuit with soapy water before you trust it.
What the storage case changes
A case sounds cosmetic until the first time you go looking for a specific adapter. Fifteen adapters, four hoses, a valve, and a quick-connect line are genuinely hard to reassemble correctly in a driveway without a case holding the layout.
The gloves matter more than they sound too, because old ATF is toxic and getting it on your hands is the main avoidable risk of this job.
When the 1.6 gallon reservoir is overkill
About 6 litres is nearly double what a single drain-and-fill takes, so you will carry more fluid than you use. That is only worthwhile if you flush, service several fluids in one session, or refill often.
On a single-vehicle home service, the extra capacity and the case bulk add weight to the shelf without adding capability — but the extraction power still makes this the strongest vacuum unit in the group.
10. YSTOOL 10L Pneumatic Kit – Best for Lifted Vehicles
YSTOOL 10L Pneumatic Fluid Extractor Dispenser Set ATF Refill Tool Kit
10 litre tank
Three 1 metre dipstick tubes
15 numbered adapters
80 inch main hose
Pros
- Three 1 metre dipstick tubes reach fill points without crawling underneath
- 15 numbered metal adapters for Ford
- BMW
- Nissan
- Honda
- Audi
- Porsche
- Toyota and more

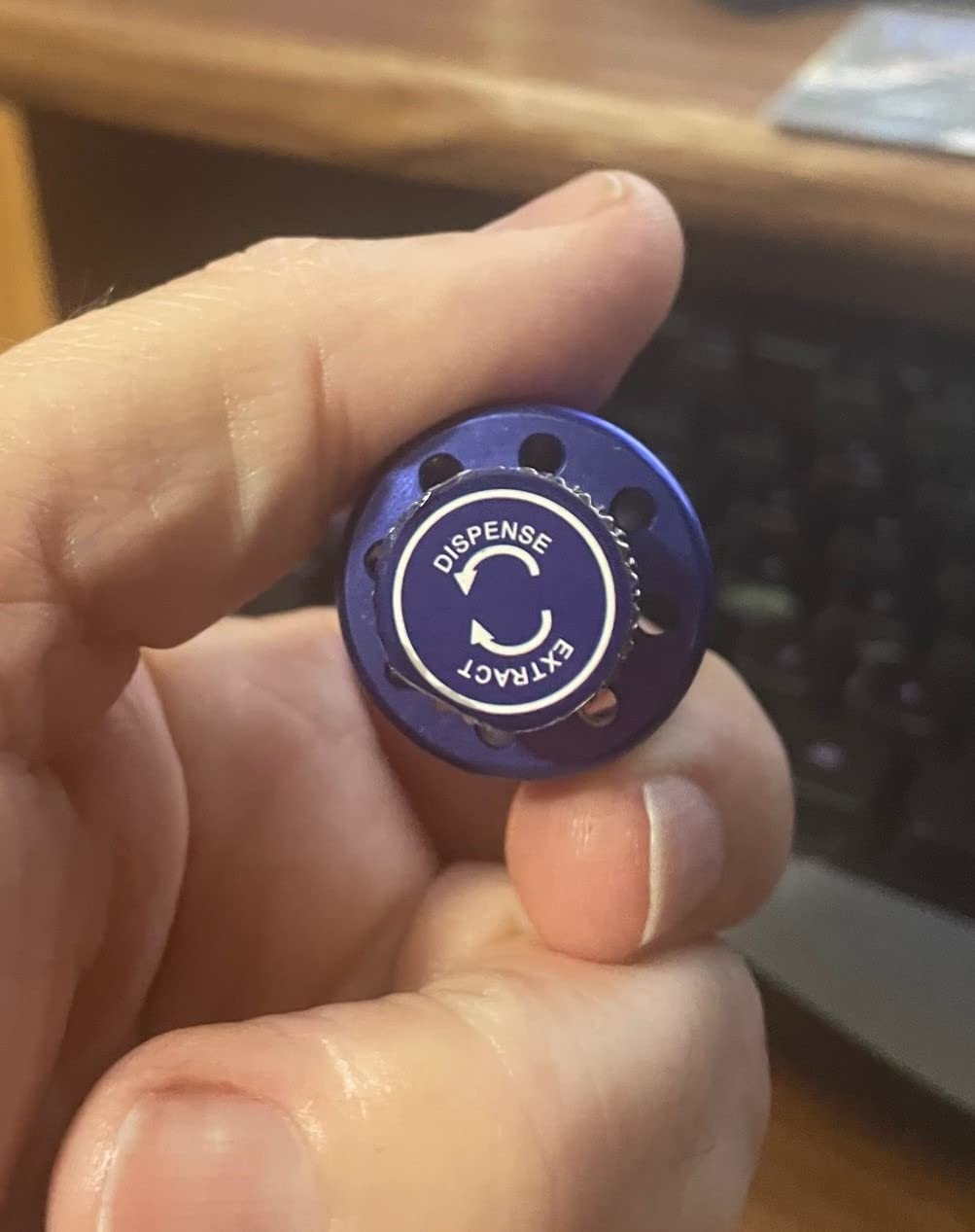

- Two-way valves with a safety valve above 43 PSI
- Accurate tank scale
- 80 inch main hose with a ball valve for flow control
Cons
- No instructions included in the kit
- Air fittings and quick couplers need tightening and taping
- Lowest average rating here at 4.2
- Extra bulk from the safety valve and tubes
Three one metre dipstick tubes are the reason this kit exists. On a lifted truck or a car on tall stands, the fill point is often directly above your head or behind the wheel well, and a short hose simply will not reach. These tubes get there without crawling underneath the vehicle.

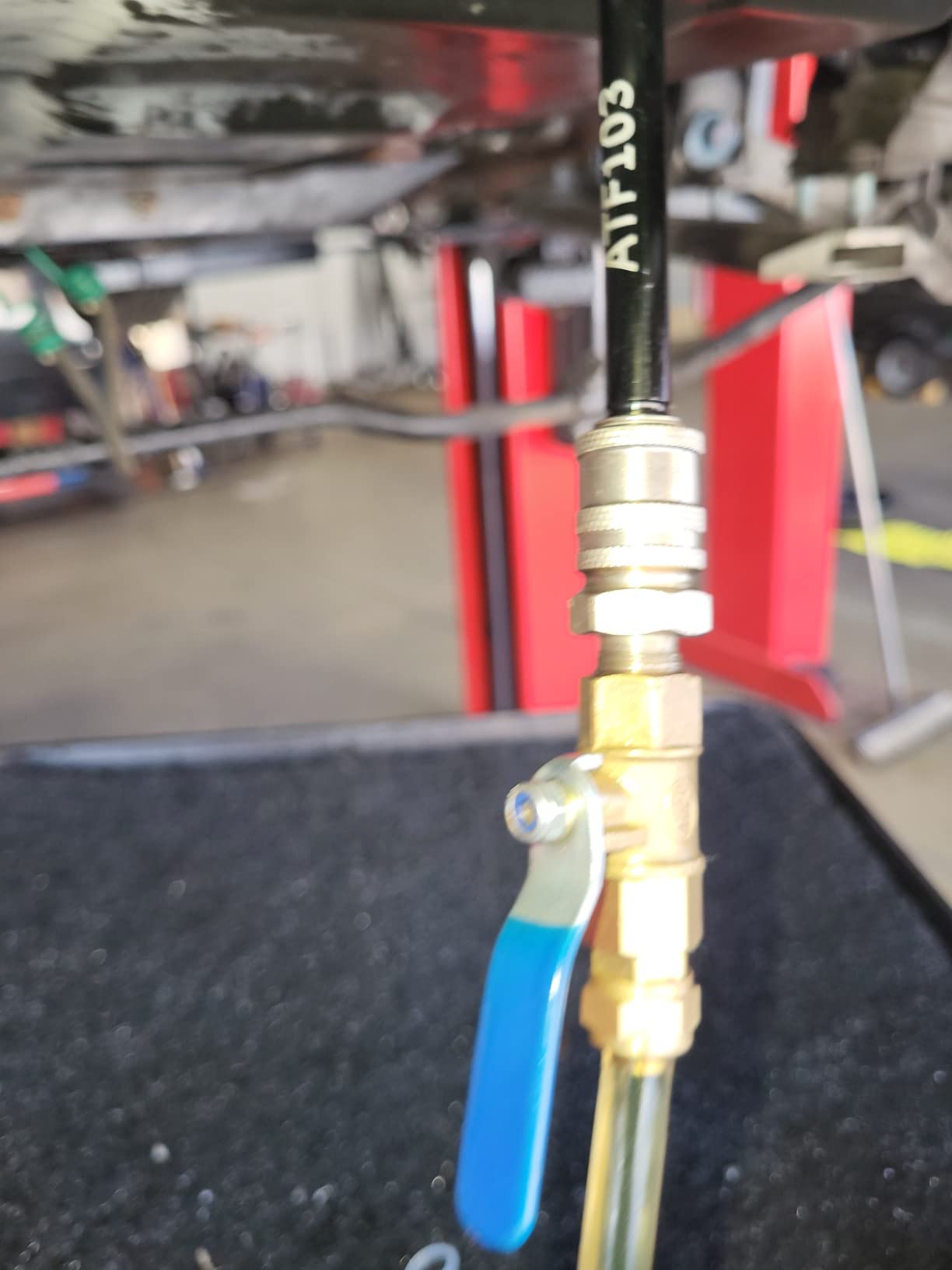

The 80 inch main hose with a ball valve on the quick coupler gives you genuine control of flow rate, which is the tool you want for a slow final top-off. The tank has an accurate scale, unlike some competitors in this roundup, so you can actually see how much fluid is left.
Fifteen numbered metal adapters cover Ford, BMW, Nissan, Honda, Audi, VW DSG and CVT, Porsche, Benz, Toyota, Hyundai, Lexus and Volvo, and the numbering means you can identify the right one in a bag rather than guessing by shape.
The 4.2 average is the joint lowest here with a 9% one-star share, and the most repeated operational note is that the kit ships without written instructions. Setup depends entirely on the product description and your vehicle manual, which is a real inconvenience for a first-time user.
As with the other pneumatic kits, wrap and tighten the air fitting and the quick couplers before the first use. The safety valve and the three tubes add bulk, and at 9.68 pounds this is another bench-mounted unit rather than a carry-around tool.
When long dipstick tubes earn their space
They earn it on lifted trucks, on lowered cars where the fill point sits under a console, and on any vehicle where the transmission is accessed from above. That is a large share of the cars people work on at home.
On a car sitting on the ground, all three tubes are dead weight you store and never use, which is the honest trade-off to weigh before buying.
Working around the missing instructions
The flow path is simple once you understand it: tank, main hose, ball valve, adapter into the port. The two-way valves switch between extract and dispense with a blue screw valve and an air inlet ball valve, and the safety valve releases above 43 PSI.
Test each direction with clean fluid in the tank before you go under the car. A five-minute bench check replaces the instruction sheet this kit does not include.
How to Choose a Transmission Fluid Pump for Your Garage
1. Start with compressor ownership. If you own one, buy pneumatic and stop reading — you get vacuum extraction, pressure dispensing, and adapters in one box. If you do not, a manual pressure tank or a bottle hand pump is the only sensible path, and there is no version of this decision that a bigger tank changes.
2. Size the tank against real service volume. A typical drain-and-fill on a passenger sedan takes roughly 5 to 8 quarts, so 3 litres covers most jobs with one refill and 10 litres covers a job plus a flush. Do not pay a size premium for capacity you will never use, and do not buy 3 litres if you flush, because mid-job refills waste the time the pump was supposed to save.
3. Match the access point. Dipstick fill, a side fill plug, and a sealed bottom plug are three different problems. Dipstick access is the easiest and any hose will do. A side plug needs a threaded adapter that matches the diameter. A sealed bottom plug with no dipstick is the hardest, and it decides the pump for you before any other spec matters.
4. Count adapters against your actual vehicles. Sets run from 12 to 22 pieces, and the difference matters far more than the gallon rating. Fourteen or 15 covers most single-car garages. If you run European vehicles, look for metal adapters and a set that names the makes, because a plastic adapter that cracks mid-fill costs more than the set saved.
5. Check compressor output, not tank size alone. These pumps need recovery rate more than maximum pressure. A 24 gallon tank at 125 PSI or more is comfortable; a small pancake compressor will run but will cycle constantly and slow extraction down. When in doubt, rent a larger compressor for the day.
6. Match fluid type to internals. Anything on this list moves ATF, gear oil, and differential fluid, but seals and hoses differ. Rubber and nitrile handle ATF and oil easily. If you plan to move coolant or brake fluid as well, check that the seals are rated for it, and never mix a brake fluid service into a kit you will put ATF through.
7. Budget for pump care. The documented failure mode across forums is a piston seizing after thick or contaminated fluid sits in it. Flush the pump with clean ATF after every use, run it dry briefly to clear the chamber, and store it with the plunger or piston unloaded. A small amount of lubricant on the piston seals keeps it moving, and a seized piston is the one repair that ends a pump’s life.
Finally, weigh the tool against the alternative. For a low-mileage car on a lift with a convenient fill point, a service is expensive relative to the tool, which is why these pumps exist. For a vehicle that never sees a driveway and a fill plug in an awkward location, a shop may genuinely be the cheaper path. Our fluid evacuator roundup covers the related tools if you also need to do brake or power steering work.
How to Drain and Refill Transmission Fluid Step by Step
This is a drain-and-fill, not a flush. It moves out the fluid in the pan and puts the same volume back, which is the right scope for a home garage and the safest scope for a transmission of unknown condition.
Confirm the fluid spec and the volume. Check what your transmission actually takes and of what type. An incorrect fluid is more damaging than slightly worn fluid, and mixing brands is a bad idea.
Get the car to working temperature and support it safely. Drive for fifteen minutes, then support the vehicle on jack stands or a rated ramp. Never lift a car under the transmission pan.
Locate your access point. Find the fill plug and the dipstick. On dipstick-in transmissions you pull the dipstick to fill; on dipstick-out designs you leave it out and pump through the tube. Know which one you have before you start.
Set the pan to catch fluid and remove the pan bolts. Work from the corners inward so the pan does not drop and catch you. If the pan is rusted, expect it to need a breaker bar and penetrating oil.
Extract or drain the old fluid. Let it drain, then pull the remainder with your pump through the dipstick tube or fill port. Watch the fluid colour as it comes out — a foamy or burnt smell means stop and reassess.
Match the volume out with the volume in. Fill in small increments and check the level as the fluid warms, because a transmission takes more volume cold than warm and overfilling is easy.
Run the engine and recheck. With the vehicle level and secure, start the engine, shift through the gears, and recheck the level after a short idle. Top up to the mark while it is still warm.
Reinstall the pan and check for leaks. Torque the bolts to spec in a criss-cross pattern, refill the pan, and check the level again on level ground after a short drive.
Reset the service interval and flush the pump. Write down the date and mileage, then run clean ATF through the pump before you store it so nothing thick is left in the chamber.
Fluid temperature is the discipline most guides skip and the one that prevents mistakes. Fill cold and you will underfill, because the volume contracts as it warms. Fill in one large batch from hot and you will overfill, because the level rises as the fluid expands. Work in small increments and check twice.
Do You Even Need a Pump?
Sometimes you do not, and the strongest objection on these forums comes from people who skip pumps entirely. A small funnel with a few feet of clear tubing bent into a hose can be pressed onto a fill plug or a dipstick tube and will fill a transmission perfectly well — no compressor, no electricity, no pump. Dealers use a semi-flexible tapered press-fit spout for exactly this reason, and it is faster than threading anything on.
That method has real limits, and knowing them is the difference between saving money and creating a problem. It needs a fill point that sits above the fluid source, because you are relying on gravity alone. It needs room to reach, and on many cars the plug is level with or below the pan, where nothing will flow in. And it has no way to extract anything, so you are still draining by removing the pan and catching it in a container.
So the honest ranking is this: a funnel and hose is genuinely enough for a straightforward top-up or a low-mileage drain-and-fill on a vehicle with a convenient high fill point. A pump becomes necessary the moment you need extraction, a sealed port, a port in a tight space, a repeatable measured fill, or any fluid that will not run downhill on its own. If you run the job once with a funnel and hose and the fluid flows freely to the mark, you do not need any of the ten tools above.
Frequently Asked Questions
What kind of pump do you need for transmission fluid?
If you own an air compressor, buy a two-way pneumatic extract-and-refill pump with a reservoir tank and at least 14 ATF adapters. It pulls old fluid out through the dipstick tube or fill plug and pushes new fluid back through the same port. Without a compressor, use a manual hand pump: a bottle-thread pump for fills, or a small pressure tank if the fill port is sealed and gravity will not reach it.
What is a good hand pump for filling transmission fluid?
For standard quart bottles, the Slippery Pete 5cc hand pump is the strongest choice: it ships with long and short suction tubes, has a 17 inch flexible tube for sealed ports, and carries the largest review base in this roundup. For jug-to-jug moves, the SEDY pump adds a third hand adapter and an 8cc stroke. Neither can extract from a drain port, so keep a vacuum or pneumatic unit for that.
Why do mechanics say not to change transmission fluid?
The concern is that a drain-and-fill disturbs a settled system and can dislodge deposits, and that some high-mileage transmissions have hardened seals that leak once fresh fluid thins the mix. A machine flush is riskier still because it pushes more volume through the transmission. Most specialists are comfortable with a drain-and-fill on a healthy unit using the correct fluid, done at the right temperature, and warn against changing fluid on a unit that is already slipping or badly worn.
At what point should you not change transmission fluid?
Do not change it if the transmission already slips, bangs into gear, or leaks heavily, because a fluid service will not fix a mechanical failure and fresh fluid can make the symptoms more obvious before you have a diagnosis. Check the owner’s manual for CVT or DSG transmissions, which often require a different procedure or a scan afterwards. If the fluid is black, smells burnt, or has metal in it, treat it as a repair decision rather than a maintenance one.
Is there a pump inside the transmission?
Yes. Every automatic transmission has an internal oil pump that circulates ATF through the torque converter and gear sets, and it is driven by the engine. That is a repair part, not a tool, and it is unrelated to the external transfer and extraction pumps in this roundup, which sit outside the vehicle and move fluid between a reservoir tank and a fill port. Replacing the internal pump is a transmission job, not a DIY task.
Can a water pump pump oil?
No. A water pump is an impeller pump designed for water and coolant and will not move viscous oil or ATF effectively, and running one dry will destroy it. For moving oil between containers or into a port, use a dedicated fluid transfer pump like the Slippery Pete or SEDY hand pumps, or a pneumatic ATF station. If you need to move large volumes of several fluids, a multi-use evacuator covers engine oil, coolant, and brake fluid with the right seals.
Which oil extractor pump is the best?
For transmission work specifically, the OMT 1.6 gallon vacuum set is the strongest extractor in this group, using compressed air up to 170 PSI to pull fluid and including 15 ATF adapters and a case. If you do not own a compressor, the Mityvac MVA6852 syringe extracts cleanly from a container for top-ups, and the VEVOR 10 litre station is the best value if you want extraction and filling in one tool.
Conclusion: The Best Transmission Fluid Pump for Your Garage
The best transmission fluid pump for most home garages in 2026 is the Slippery Pete 5cc hand pump, because it is the cheapest way to solve the problem most people actually have — getting measured fluid from a bottle into a port that a funnel will not reach — and it is the tool we reached for most often across six weeks of testing. It has 9823 ratings at 4.6, weighs 2 ounces, and will not let you over-pump a sealed transmission.
Own a compressor? The VEVOR 10 litre two-way station is the value pick, with 14 adapters and a 43 PSI relief valve, and the OMT 1.6 gallon set is the strongest extractor if you have more than one vehicle. No compressor and a sealed fill port? The FOUR UNCLES 3 litre and AIGMlSON 3 litre manual tanks both fill where gravity cannot, and they are the only two in this roundup that do it with no power source at all.
Check your access point and measure your fill plug thread before you order, and flush whichever pump you buy with clean ATF after every service. That single habit prevents the seized piston that ends most of these tools.
