Most RV converter failures are silent. The lights still come on, the water pump still runs, and your trailer feels normal right up until the battery will not hold a charge through a weekend. When that happens the replacement part number usually is not printed anywhere in the manual, and the shelf at the RV supply counter has six look-alike boxes with different chemistry settings. That is why we pulled ten of the current RV power converter options into one place and read every specification and review pattern, so the best RV power converters for trailers can be compared side by side instead of one guess at a time.
Our team has spent the last few months working through the category the way an owner would: matching each unit to the trailer it actually fits, checking battery chemistry handling, and reading the reviews closely for the failure patterns owners report two or three years in. What came out of that is a short list of drop-in replacements, a few units that need a little more planning, and a handful of cheap boxes that make more sense than their price suggests.
If you are still narrowing the trailer itself, our utility trailer picks and enclosed trailer guide cover the towing side of the equation. This article stays on the electrical side, where the shore power plug meets your house battery.
Top 3 Best RV Converter Chargers for Trailers in 2026
PowerMax PM3-55LK 55A Converter
- 55A regulated output
- Lead-acid and lithium adjustable
- Current limiting and reverse-polarity protection
Progressive Dynamics PD4645V
- Charge Wizard 4-stage charging
- Hidden lithium jumper at 14.6V
- Replaces Parallax 6345/7345/8345 and WFCO 8945
PowerMax PM4-100A 100A Converter
- 100A output for large banks
- 4-stage smart charger
- 5-year spare part availability
Quick Overview: Every Converter in This Roundup (October 2026)
| Product | Specifications | Action |
|---|---|---|
| PowerMax PM3-55LK 55 Amp Deck Mount |
|
Check Latest Price |
| PowerMax PM4-100A 100 Amp Deck Mount |
|
Check Latest Price |
| Progressive Dynamics PD4645V 45 Amp |
|
Check Latest Price |
 WF-9855 55 Amp Lithium Replacement |
|
Check Latest Price |
 RecPro 55 Amp Converter Charger |
|
Check Latest Price |
 IOTA Engineering DLS-45 45 Amp |
|
Check Latest Price |
 VEVOR 55 Amp RV Power Converter |
|
Check Latest Price |
 Zixixvan WF-8955 55 Amp Replacement |
|
Check Latest Price |
 Progressive Dynamics PD4045KV 45 Amp |
|
Check Latest Price |

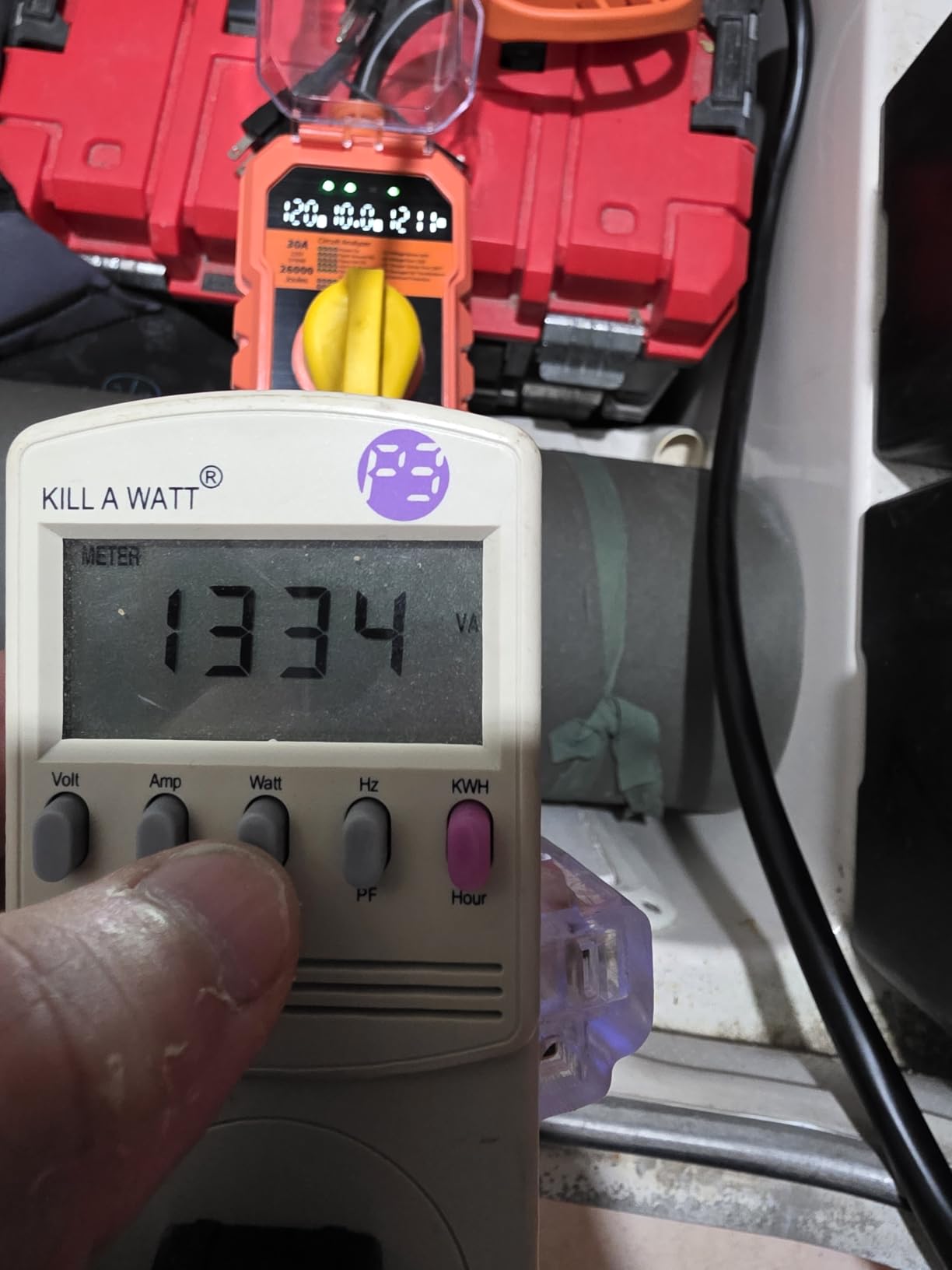

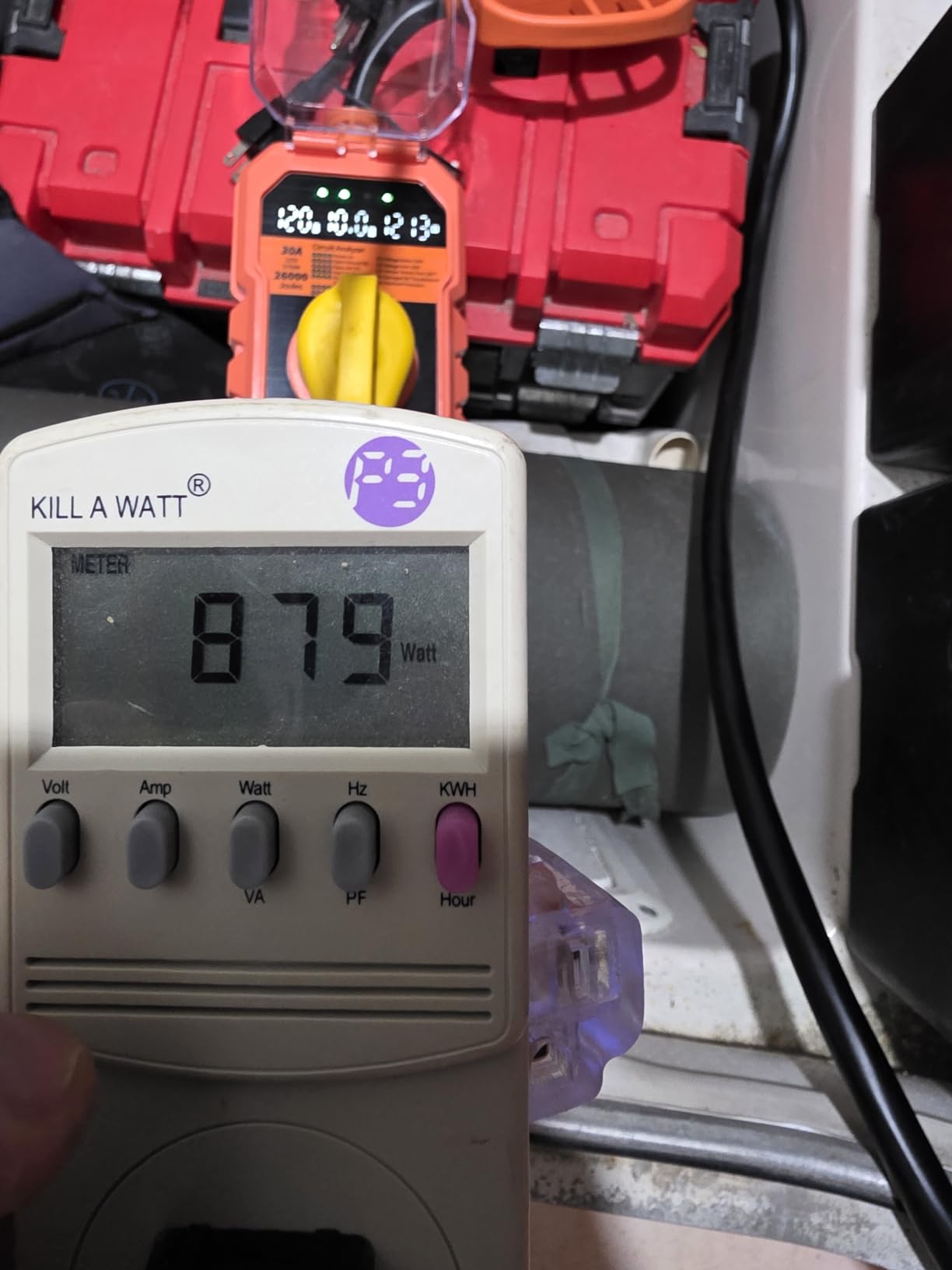

 WAVLINK GS800RV-55 55 Amp |
|
Check Latest Price |
What Is an RV Power Converter?
An RV power converter is the box in your trailer that turns 120-volt AC shore power into the 12-volt DC your lights, water pump and fans run on. At the same time it acts as a charger, stepping your house battery bank through bulk, absorption and float until it is full, then holding it there while you are plugged in.
That dual job is the part people get wrong. A converter is not the same thing as an inverter, and it is not the same thing as a power center either. A power center bundles the converter with an AC breaker box and a DC fuse panel, which is why a failed converter is sometimes sold to you as a much bigger assembly than you actually need.
Owners who have dealt with failing factory units know the classic signature. A Good Sam community member described their WFCO 8930/50 charging to 13.6V but never entering bulk charge, which is the single most common complaint in this category. A converter that only reaches 13.6V is a trickle charger pretending to be a real one, and it will leave a bank chronically undercharged no matter how good the batteries are.
The 10 Best RV Power Converters for Trailers

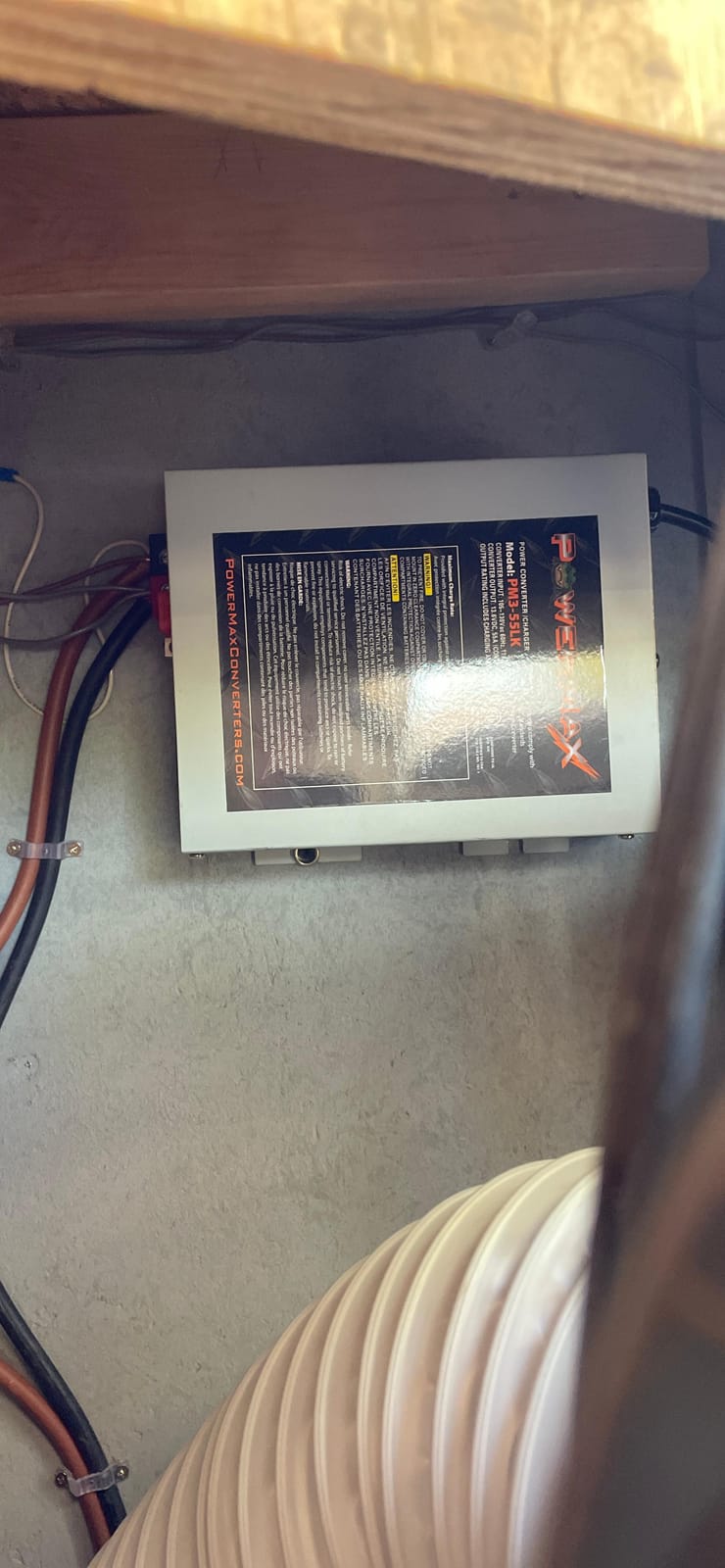

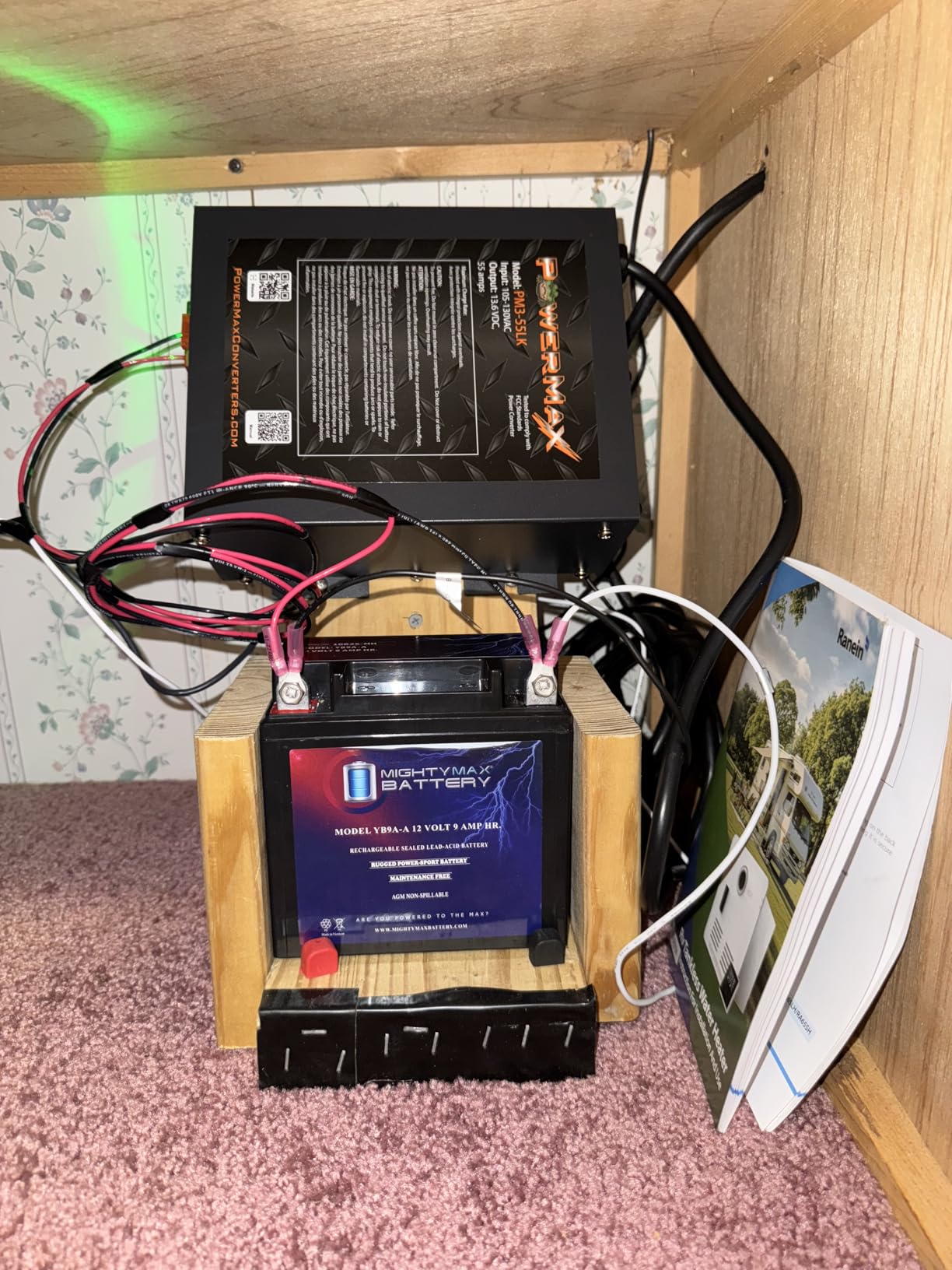

1. PowerMax PM3-55LK 55 Amp Deck Mount Converter Charger
PowerMax PM3-55LK 55A Deck Mount RV Converter Charger Lithium
55A regulated 12V DC output
Lead-acid and lithium adjustable
7 lb deck-mount format
Pros
- Largest owner base in this roundup at 2415 reviews
- Quiet temperature-controlled fan that stays off at idle
- Runs cool in 110+ degree interiors
- Reports of multi-year continuous service
Cons
- Lithium setup needs a small switch plus a voltmeter check
- Some owners replaced an internal thermistor and fan
- Idles at roughly 15 watts of overhead draw
This is the unit we kept coming back to. It carries 2415 reviews at 4.6 stars, which is more owner history than anything else on this list by a wide margin, and that history is unusually good. Reviewers describe multi-year continuous service and a temperature-controlled fan that stays off at idle, which matters in a trailer bay that can sit well above 100 degrees in July.
The 55 amp rating is the sweet spot for a mid-size travel trailer, and the deck-mount standalone format means it drops into the converter section of most factory power centers. Adjustable output covers both lead-acid and lithium, with built-in current limiting, reverse-polarity and thermal safeguards.
Two things give us pause. The lithium path requires flipping a small switch and then confirming no-load output voltage with a voltmeter, which is a five-minute job that a lot of owners skip. And a handful of owners on older examples had to replace an internal NTC thermistor and the cooling fan themselves.
Neither complaint is about the charging algorithm, and the fix on both is straightforward with basic tools. Owners also report roughly 15 watts of overhead draw at idle, so if you are running on solar alone you will want to account for that.
What makes it the pick for most trailers
Review volume is the honest reason. When a unit has 2415 owners behind it, the failure modes are already documented rather than theoretical, and the pattern here is a quiet fan, cool running, and a direct replacement for many OEM converter sections.
For a bumper pull with a single battery bank and a mix of 12V loads, 55 amps is the amount of headroom that matters. It charges a depleted bank in a usable timeframe without being large enough to demand a bigger mount or heavier wiring than the bay allows.
Where it will disappoint you
If you want a unit that figures out lithium for you with no meter work, this is not it. The switch-and-verify process is deliberate rather than automatic, and it is the most common install complaint we saw.
One reviewer also reported delivered output running below the nameplate 55 amp rating. That was a single report rather than a pattern, but if you are sizing right at the limit, check your actual draw before committing to 55 amps.

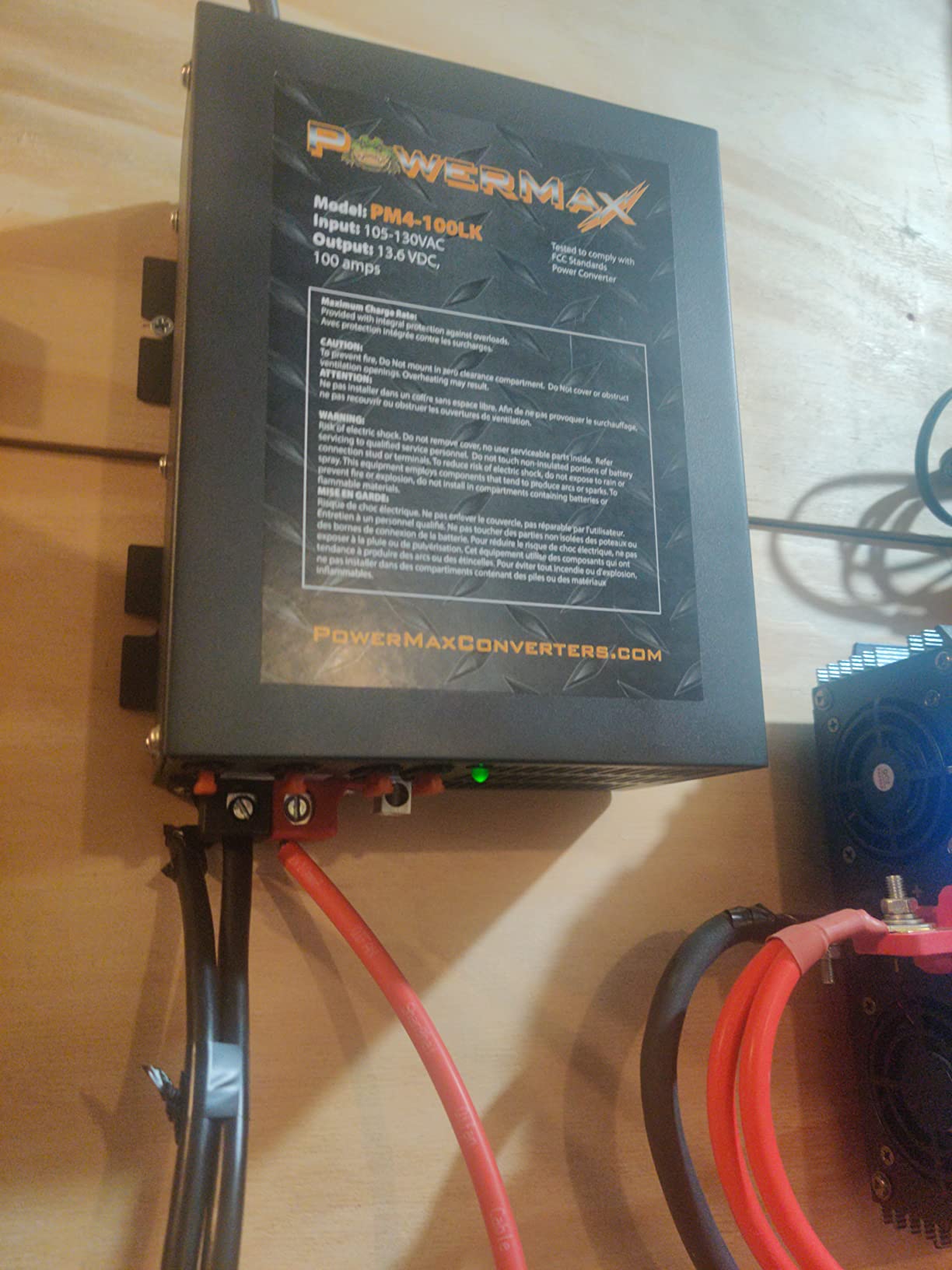

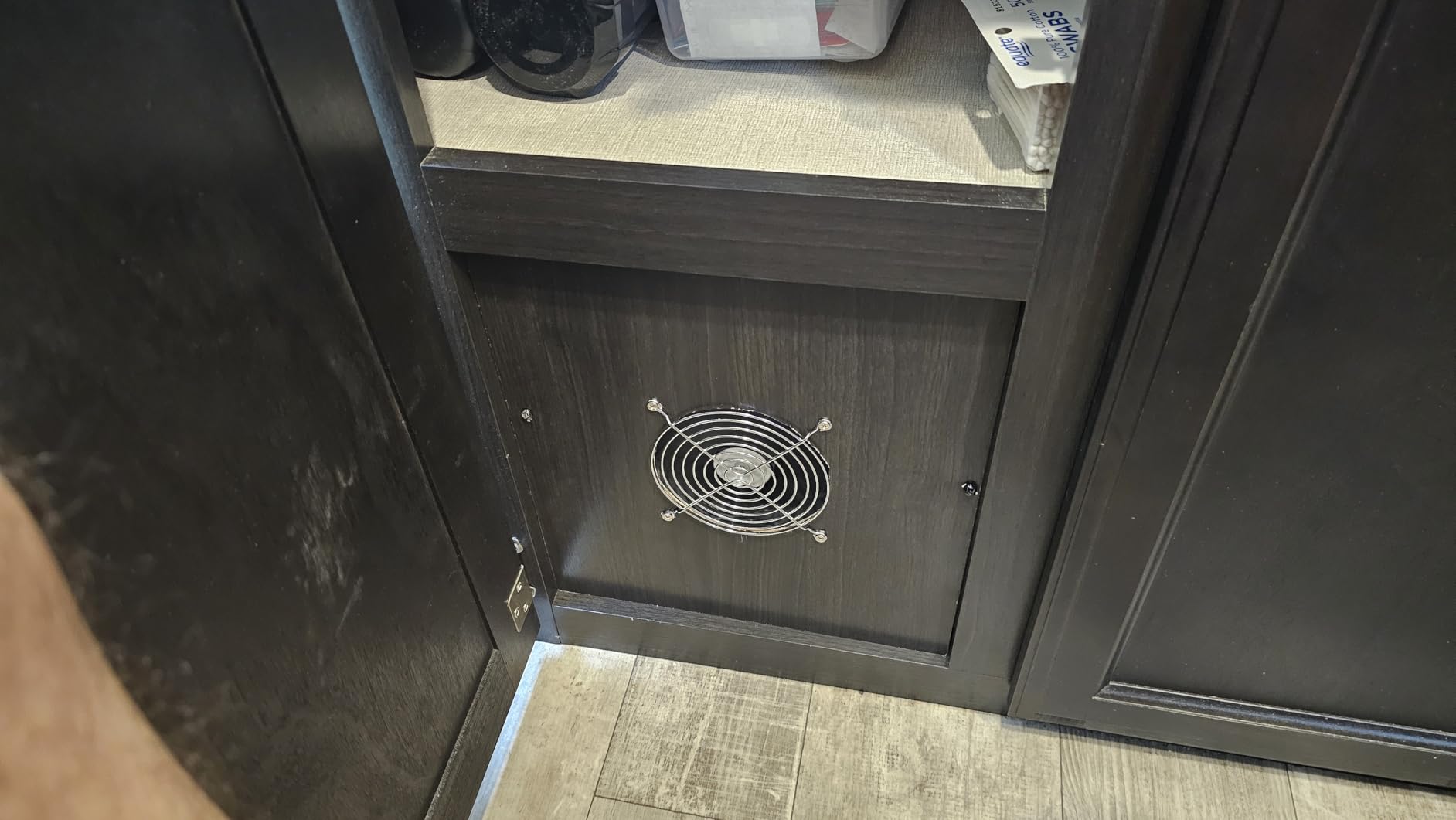

2. PowerMax PM4-100A 100 Amp Deck Mount Converter Charger
PowerMax PM4-100A 100A Deck Mount RV Converter Charger Lithium
100A regulated 12V DC output
4-stage smart charger
12 x 9 x 5 inch box
Pros
- Highest output capacity in the PM4 line
- Regulated output plus multi-stage charging
- Lithium compatible with adjustable output
- Two-year manufacturer warranty
Cons
- Larger and heavier than lower-amp converters
- Deck-mount only
- so no integrated DC distribution
Where the 55 amp unit is balanced, this one is built for banks that need serious recovery. At 100 amps it is the highest output capacity in the PowerMax line, and it carries a 4-stage smart charger with adjustable output for lead-acid or lithium.
That capacity matters if you are moving from two lead-acid batteries to a single large LiFePO4 bank and want a converter that can actually put charge back into it on a short stopover. Owners working through that upgrade on etrailer forums consistently ask for a step up in the 45 to 55 amp range or higher, and this is the same idea scaled further.
The rating of 4.4 sits below the 55 amp sibling, and the reason is fit rather than function. At 12 x 9 x 5 inches and 7 pounds it needs more deck-mount space, and a bay sized for a 45 amp section will not swallow it without modification.
It is also a standalone converter, not a power center, so there is no integrated DC fuse distribution. If your trailer has no usable distribution panel left, plan for that as a separate purchase rather than expecting this to fill the gap.
When 100 amps is the right answer
The case for it is a big battery bank that needs fast recovery. If you routinely arrive at a campground with a deeply discharged lead-acid setup and limited hookup hours, output capacity is the constraint that matters and this unit removes it.
The manufacturer also lists five years of spare part availability, which is a quiet but meaningful advantage on a category where OEM part numbers get discontinued and owners are left unable to source a match years later.
When it is overkill
For a small trailer on a 30 amp pedestal, none of this capacity is usable. A 50 amp plug in a 30 amp site still only delivers 30 amps, and an oversized converter sitting behind it simply idles.
Physical fit is the more practical concern. Before buying any deck-mount unit at this size, measure the bay, because the number that matters is the clearance in your trailer, not the catalog dimension.

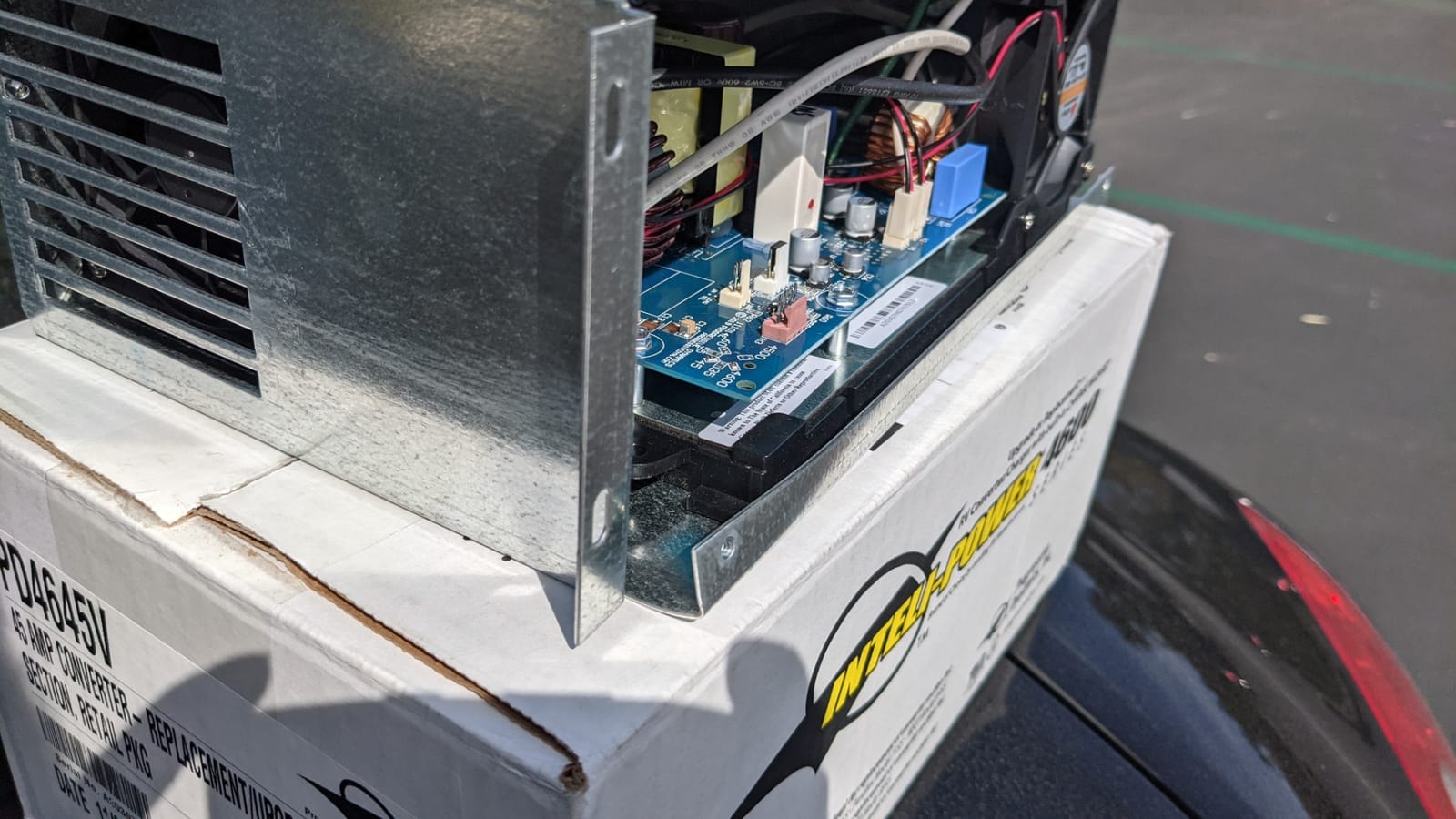

3. Progressive Dynamics PD4645V 45 Amp Inteli-Power Converter/Charger
Progressive International Dynamics PD4645V Inteli-Power 4600 Series Converter/Charger with Charge Wizard – 45 Amp
45A converter with Charge Wizard
Hidden jumper to 14.6V for lithium
8 x 13.2 x 5.3 inch, 9 lb
Pros
- Charge Wizard 4-stage charging extends battery life
- Very quiet with no hum or buzz
- Runs cooler than the OEM units it replaces
- LED blown-fuse indicators on the DC panel
Cons
- Some units shipped with misapplied wire labels
- Installation instructions lack photos
- One early unit produced a buzz needing replacement
This is the model the most recent r/RVLiving converter thread points owners toward, typically recommended around 55 amps with lithium handling in mind. At 45 amps it is sized for a slightly smaller trailer, and the reason it keeps coming up is the Charge Wizard 4-stage algorithm rather than the wattage.
Long-term owners on Forest River Forums report the 9200 series family keeping batteries alive for 10 years or more on continuous shore power with routine electrolyte checks, describing it in plain terms as a stout review. That is a longevity claim from people who did not change anything except the converter, which is exactly the evidence you want in this category.

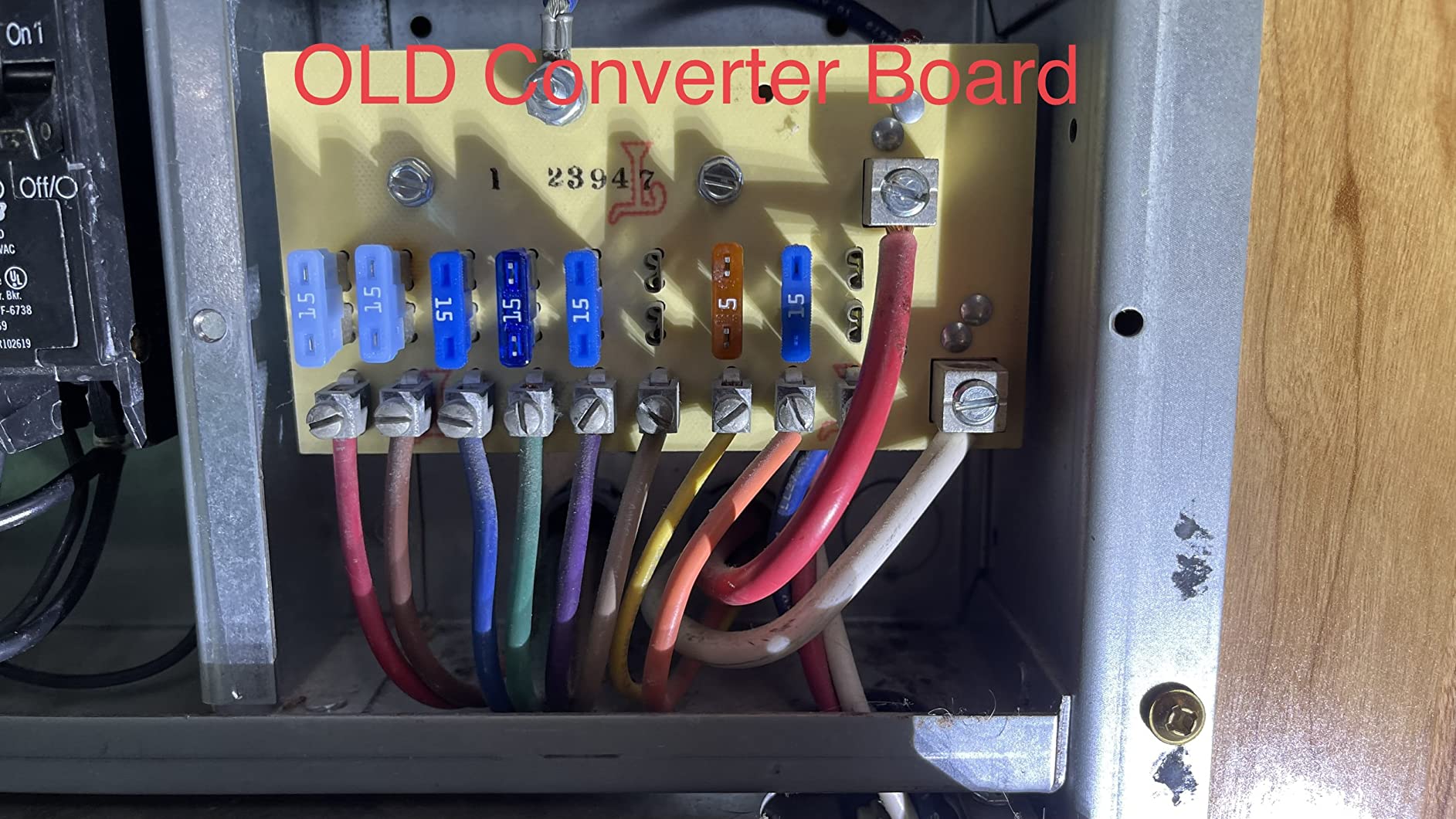

The fit story is a large part of the appeal. This unit replaces Parallax and Magnatek 6345, 7345 and 8345 converter sections plus the WFCO 8945, which covers a huge share of trailers built in the last two decades. It is made in the USA, and the DC distribution panel carries LED blown-fuse indicators that tell you which branch died without a multimeter.
There is a hidden jumper that raises output to a continuous 14.6V for LiFePO4 banks, and the four-stage profile is designed specifically to avoid boiling lead-acid batteries, which is a real failure mode with cheaper single-stage units.
Why owners pick this brand first
The charging algorithm is the differentiator. Charge Wizard moves through bulk, absorption and float with an equalization stage that is controlled rather than forced, which matters most for AGM and lithium banks that some 4-stage chargers damage on a weekly cycle.
That AGM dispute is a genuine thread topic on Forest River Forums, where owners argue about whether 4-stage converters should be allowed to force periodic bulk and equalization on sealed batteries. This unit is at the centre of that conversation for a reason, and understanding it before you buy is worth the ten minutes.
Where the install gets in the way
Some units arrived with output wire labels applied incorrectly, which turns a bolt-in swap into a slower wiring job. The written instructions also lean on text rather than diagrams, so budget extra time with the wiring schematic in front of you.
One early unit produced a high-pitched buzz and required a manufacturer replacement. It was an isolated report, and the model has a strong review history otherwise, but it is the kind of thing to catch on day one rather than after a season.

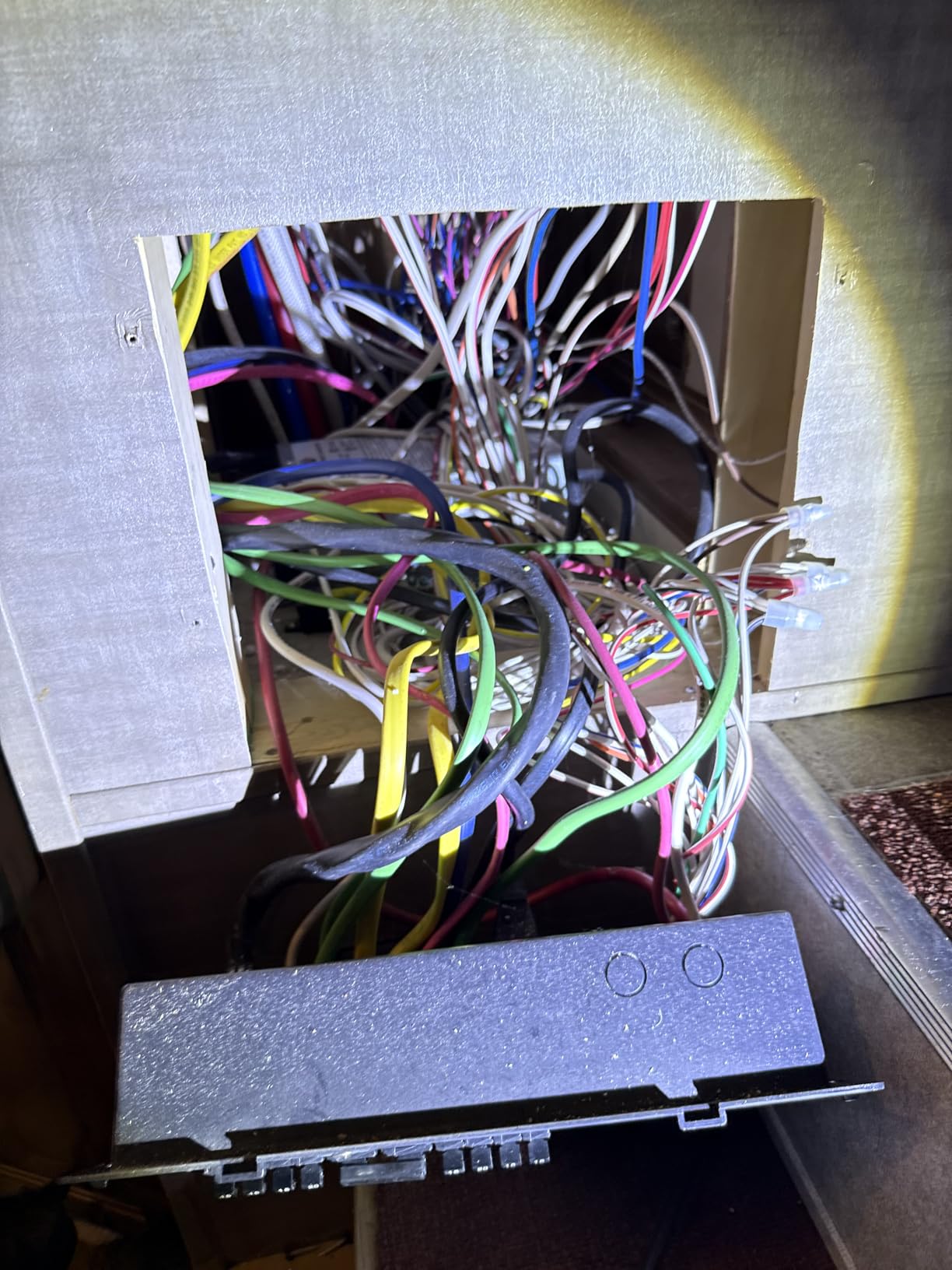

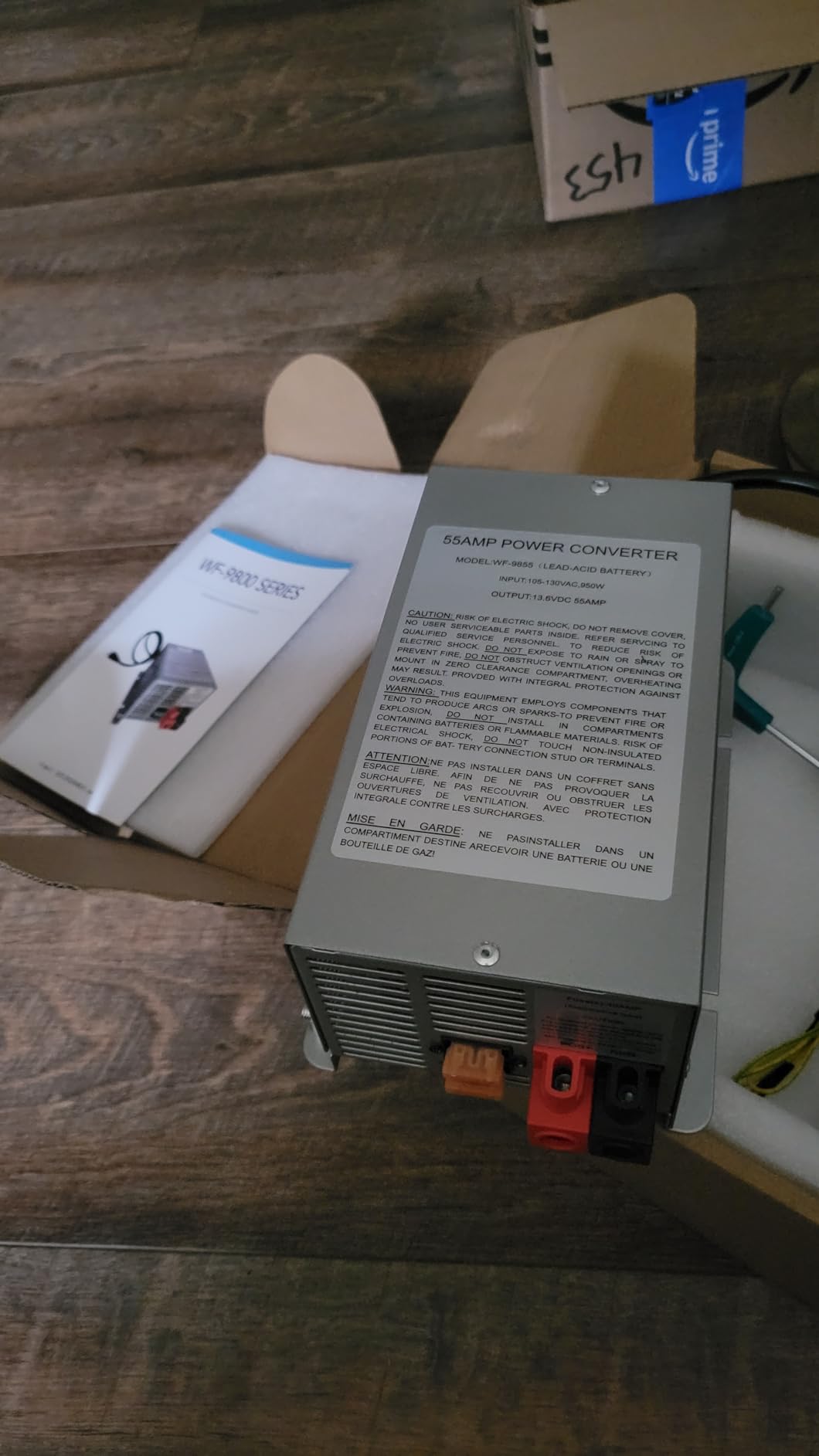

4. WF-9855 55 Amp Lithium Replacement Converter
𝟐𝟎𝟐𝟔 𝐔𝐩𝐠𝐫𝐚𝐝𝐞 WF-9855,55 Amp Rv Power Converter,Designed for Lithium Battery,Replace for WF-9855,WF-9855-MBA,WF-9855-AD,WF-9855-LIS&All WF-9800 Series, 5 Years Warrnaty
950 watt output at 55 amps
14.6VDC three-stage charging
Input 105-130VAC at 60Hz
Pros
- Direct fit for WF-9855 and WF-9855-AD bays
- 14.6V profile aimed at lithium
- Upgraded pure copper fan is quieter
- Five-year warranty with responsive seller support
Cons
- Fixed 14.6V output is lithium-oriented
- Limited published dimensions and weight
- No integrated DC fuse distribution
WFCO 9800 series converters are everywhere in trailers built in the last 15 years, and a failing WF-9855 is one of the most common replacement jobs in the category. This unit lists the WF-9855, WF-9855-MBA, WF-9855-AD and WF-9855-LIS as direct replacements along with the rest of the WF-9800 line, which removes the guesswork from the order.
Output is 950 watts at 55 amps and 14.6VDC, fed by 105-130VAC at 60Hz with a three-stage charging profile. That fixed 14.6V target is the number to understand before you buy, because it is set for lithium rather than tuned for lead-acid.
The cooling fan is the upgrade over the unit it replaces. Buyers call out the pure copper fan as noticeably quieter than the original, and a quieter converter in a sleeping trailer at a campground is not a minor detail.
Protection covers overcharge, overvoltage, overcurrent, high temperature and short circuit, and the warranty runs five years with seller support answering within about 12 hours according to the listing.
When this is the cleanest fix
If your trailer shipped with a WF-9800 series unit, this is a direct swap with no rewiring beyond reconnecting the existing leads. Nothing about the conversion is guesswork, which removes the most common source of install errors.
It is also a sensible move for owners who have already moved to LiFePO4, because 14.6V matches the lithium absorption target rather than the 13.6V that many factory units stop at.
Where the fixed voltage bites
If you are still on flooded or AGM lead-acid, a fixed 14.6V profile is not what you want. That voltage is the lithium setting, and running lead-acid at it continuously is how you cook electrolyte out of a flooded cell.
The listing also gives no dimensions and no weight, and the brand is generic rather than a name you will recognise on a warranty sticker. Judge the fit from your existing bay, not from a spec sheet that does not exist.

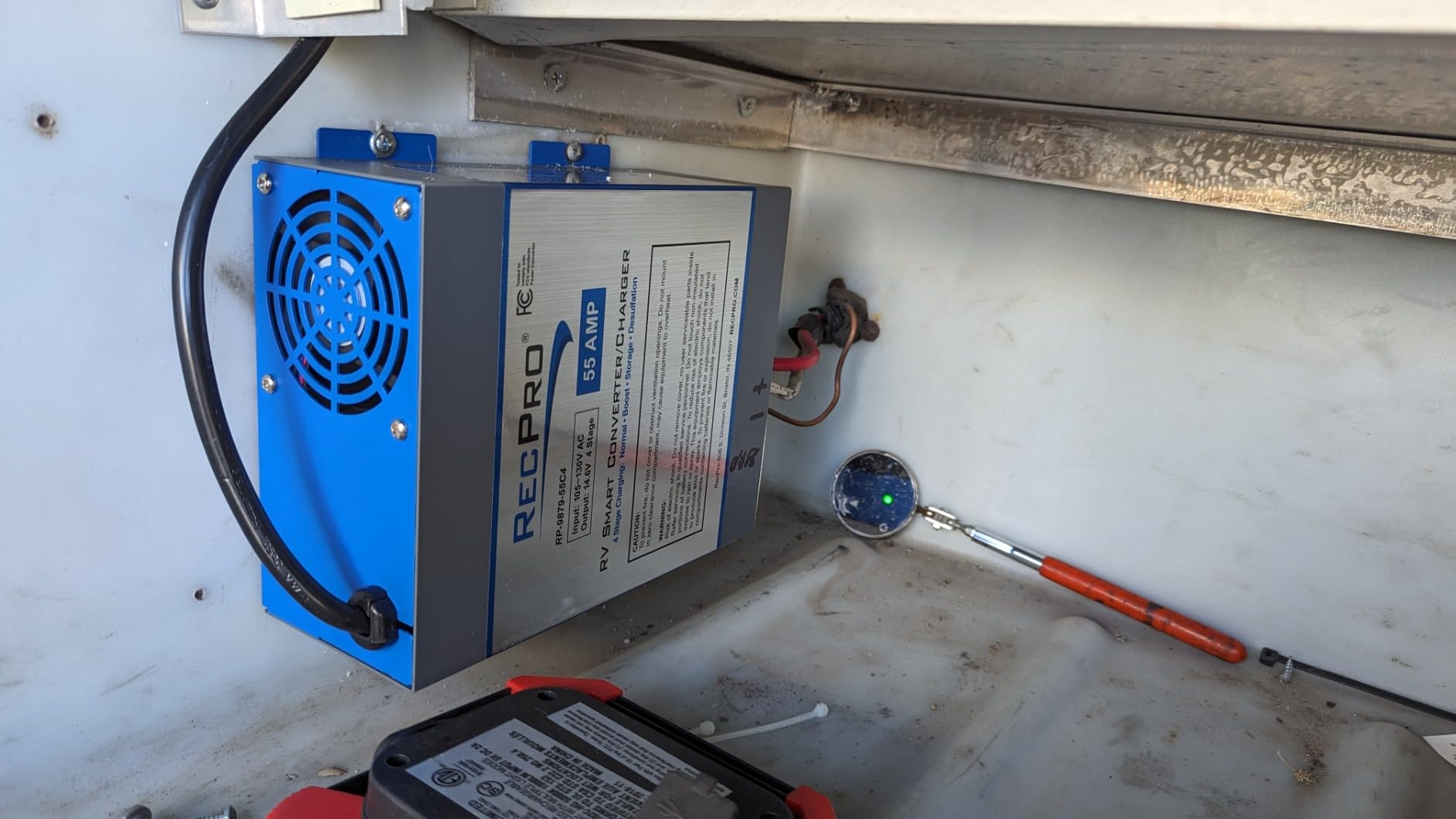

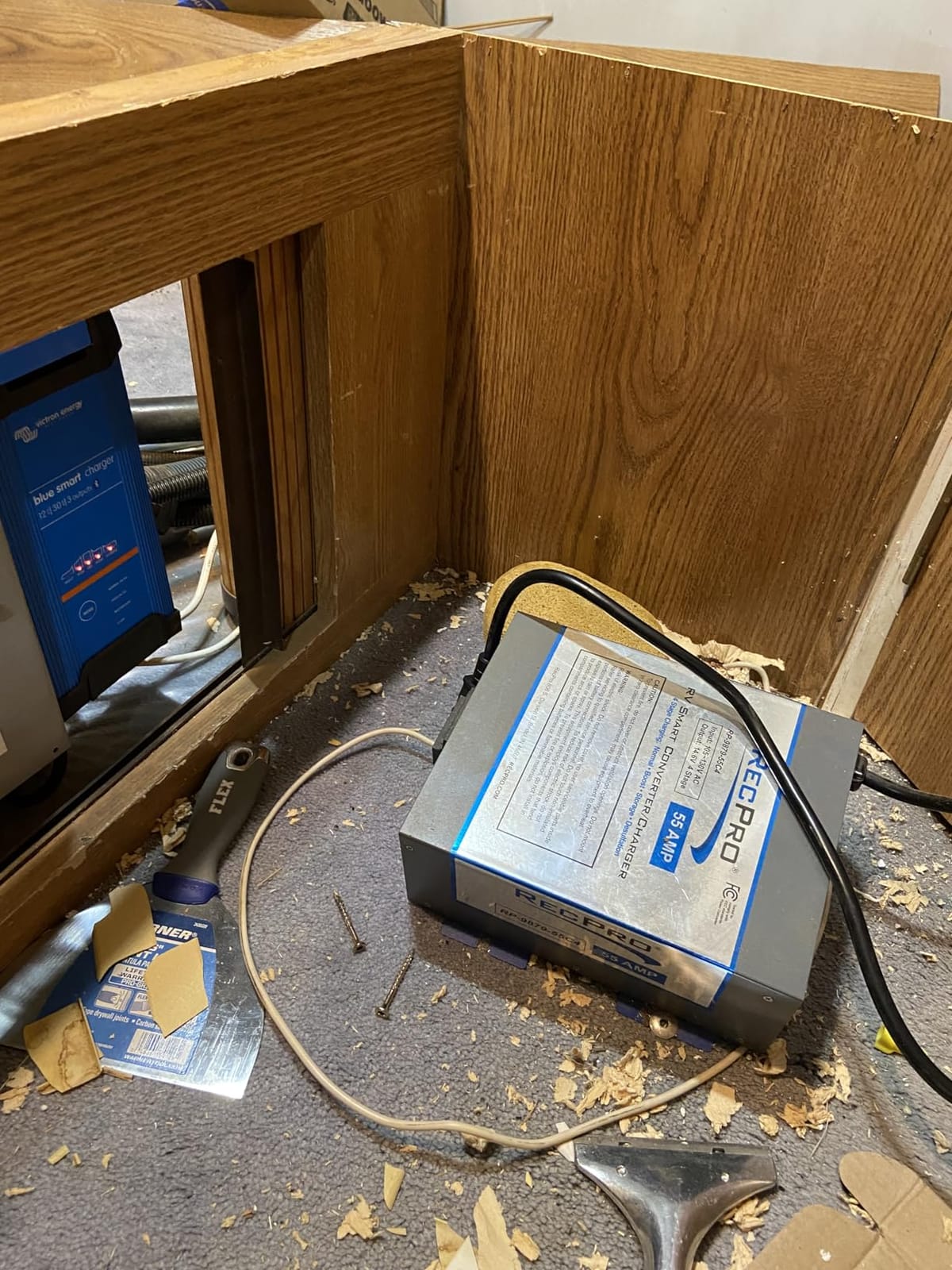

5. RecPro 55 Amp RV Power Converter and Battery Charger
RecPro 55 Amp RV Power Converter & Battery Charger | 4-Stage Charging
55A output with four-stage charging
120VAC in, 12V DC out
9.5 x 8 x 3 inch metal box
Pros
- Wide range of amperage options to match your bank
- Works with lead-acid and lithium batteries
- UL specification metal enclosure
- Charges while powering 12V loads
Cons
- One-year manufacturer warranty is the shortest here
- Lowest rating in this group at 4.2 with a 13 percent one-star share
- No DC cable set included
- Some fan noise reported
The RecPro name is the reason this is here. The same manufacturer builds the same converter in 35, 45, 55, 60, 65, 75, 85, 100 and 125 amp capacities, and every one of them converts 120VAC shore power to usable 12VDC while charging the battery and powering low-voltage lights and appliances at the same time.
That breadth matters for anyone running more than one trailer. If you own a small bumper pull and a large fifth wheel on the same family of wiring, matching one brand across both means one set of expectations and one support contact.
Mechanically it is a compact metal enclosure at 9.5 x 8 x 3 inches and about 2.85 kg, rated UL, which is a decent fit profile for a converter section bay.
Four-stage charging is present, and the unit handles both lead batteries and lithium, so the chemistry question does not force a different product family if you upgrade later.
Where this earns its place
The capacity ladder is the real feature. Owners who decide to step a converter up usually want a step that exists in a known form factor, and having 45, 55 and 60 amp versions of the same box removes the fit uncertainty from an amp upgrade.
Simultaneous charging and load powering is also genuinely useful. It means a weekend with a heavy 12V draw does not have to be a choice between running the load and recovering the bank.
Where you should look elsewhere
The one-year manufacturer warranty is the shortest of any unit we reviewed, and warranty length is a genuine decision factor in this category. Multiple owners on Forest River Forums pick brands specifically on warranty terms, and one year is thin for hardware that sits in a hot bay year round.
The 4.2 rating with a 13 percent one-star share is also the weakest here. Some of that traces to fan noise and some to the DC cable set not being included, both of which mean extra parts and a less quiet install.
6. IOTA Engineering DLS-45 45 Amp Converter and Charger
IOTA Engineering Converter and Charger, 45 – Amp
45A output at 13.4V DC
Modular stub wire selects 14.2V
3.4 x 6.7 x 3.4 inch, 4.5 lb
Pros
- Highest rating in this roundup at 4.7 with only 2 percent one-star
- Quiet and cool beside 20-plus-year-old OEM units
- Direct replacement wiring for the original IOTA
- Quick answers from manufacturer support
Cons
- Not a smart charger
- so lithium needs a BMS or IQ controller
- Not power-factor corrected
- Delivered output can fall below the 45 amp nameplate
The IOTA carries the highest average rating of any converter in this roundup at 4.7, and the one-star share is 2 percent. That consistency is why it earns a place even though the design is older-school than the competition.
This is a converter, not a smart charger. It puts out regulated 13.4V DC, and a modular stub wire on the output selects a higher 14.2V for lithium charging. For an owner who already runs a battery management system or an IOTA IQ equalizer, that architecture is exactly right.
Owners in this group report it running quiet and cool next to 20-plus-year-old factory converters, and the wiring lines up directly with the original IOTA unit, which makes the swap straightforward if you are replacing an IOTA to begin with.
Two 30-amp fuses protect against reversed battery leads, the unit is ETL and UL listed, and it is made in the United States at 4.5 pounds in a compact 3.4 x 6.7 x 3.4 inch package.
What the high rating is telling you
It is a build-quality signal. The 4.7 with a 2 percent one-star share across 266 reviews reads like a product that simply does what it says for a long time, and the consistent theme in the reviews is reliability rather than features.
Variants exist at 45, 55 and 75 amps, so the same architecture scales if your bank grows. Manufacturer support is described as answering questions quickly, which matters when you are choosing a lithium profile.
Where the design limits you
Lithium is the weak point. Without a battery management system or an external IQ controller, the DLS is not a smart charger, and one Senior Member on a Jayco Owners Forum thread replaced a WFCO with an IOTA four-stage unit and a brand new AGM and still had battery trouble until the battery itself was addressed.
It is also not power-factor corrected, which costs efficiency, and delivered output can land well below the 45 amp nameplate in some configurations. The manufacturer suggests budgeting for replacement around every 15 years as capacitors age, so it is a longer-term purchase than a newer smart converter.

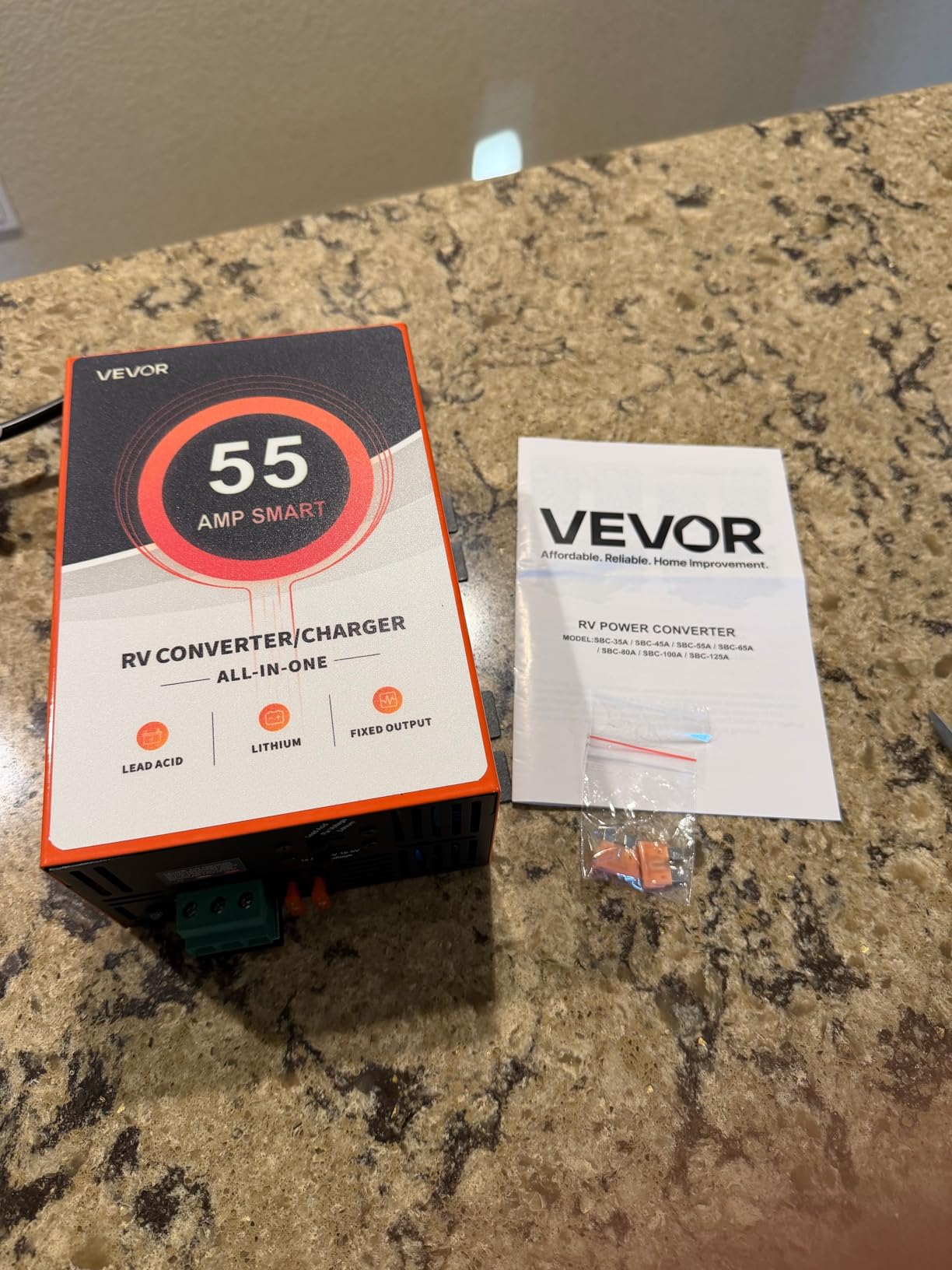

7. VEVOR 55 Amp RV Power Converter
VEVOR RV Power Converter, 55 Amp, 110V AC to 12V DC RV Converter Battery Charger, Multi Stage Smart Charging, 13V to 16.5V Operating Range, Compatible with Lithium & Lead Acid Battery, for Camper
55A output, 798 watts
Lead-acid, LiFePO4 and fixed voltage modes
10.43 x 7.17 x 3.66 inch
Pros
- Feature set is unusually complete for the money
- Separate lead-acid and LiFePO4 modes plus selectable voltages
- Six built-in protection circuits
- 100 percent copper cable included
Cons
- 10 percent one-star share is the second highest here
- No stated warranty
- Sized for 55Ah-70Ah batteries
- so heavier loads are out

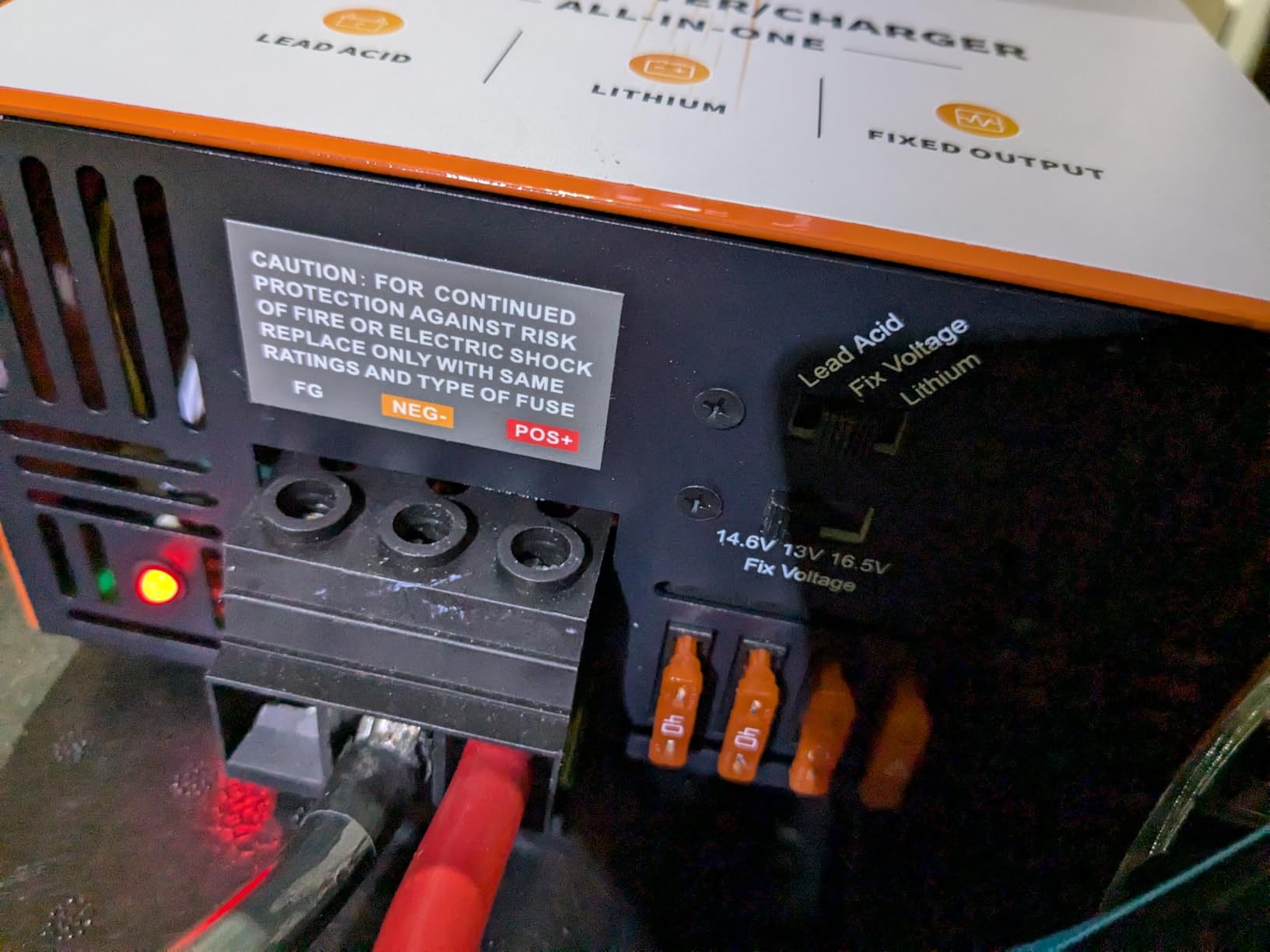

The VEVOR does something the expensive units do not: it gives you a physical control. Instead of a hidden jumper or a service menu, you get a selector for lead-acid, a selector for LiFePO4, and fixed voltage options at 13.0V, 14.6V and 16.5V. For an owner who wants to see and change the chemistry setting rather than infer it, that is worth more than brand recognition.
Output is 55 amps and 798 watts from a 120V AC input, with a metal and copper enclosure at 10.43 x 7.17 x 3.66 inches and 5.1 pounds. The protection list runs to six circuits: short circuit, over temperature, overload, low voltage, overvoltage and reverse polarity.
Cooling is handled by a metal housing for heat dissipation plus an intelligent fan that activates above the rated temperature, so the fan is not running constantly in a quiet bay. Two fuses and a manual ship in the box, along with 100 percent copper cable.
This is the option to look at if the failed unit was an inexpensive board and you want more than you had. The feature count here is closer to a premium unit than to the entry-level tier.
Where the value is real
Dedicated chemistry modes plus selectable fixed voltage is a combination usually reserved for converters well above this tier. Owners who have been manually volt-checking their lithium setup will recognise what that control does for them.
Six protection circuits and included copper cable remove the small extra costs that add up on a first install, and the temperature-triggered fan keeps idle noise down in a sleeping trailer.
Where the compromises show
The 10 percent one-star share is the second highest in this roundup, and there is no stated warranty, which in a category where owners deliberately choose brands on warranty terms is a real gap.
The published sizing guidance also limits it to 55Ah-70Ah RV batteries, so a heavier 12V setup will not suit. Budget for a higher capacity unit if your bank is larger, and expect some early failure reports given the rating spread.

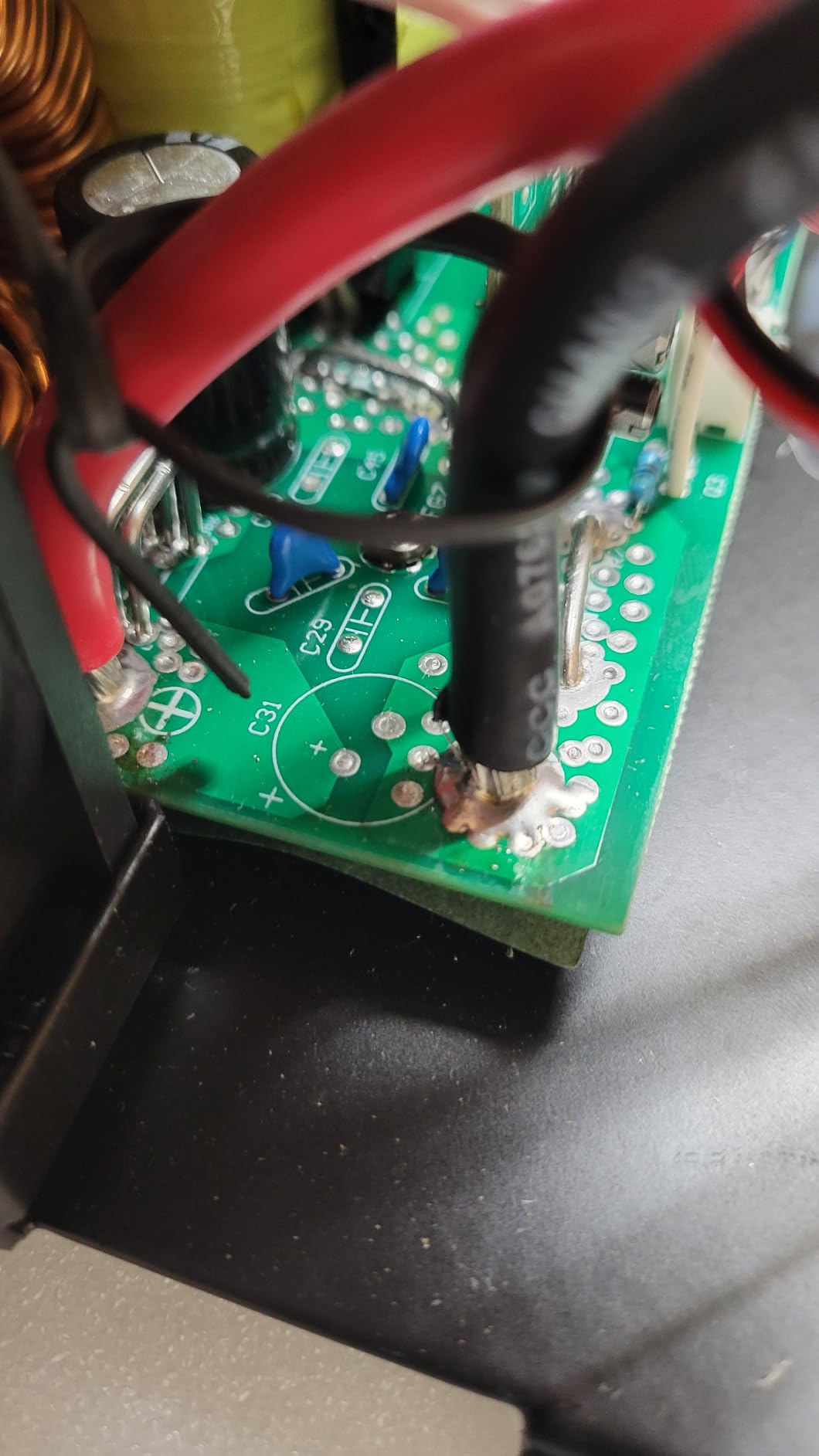

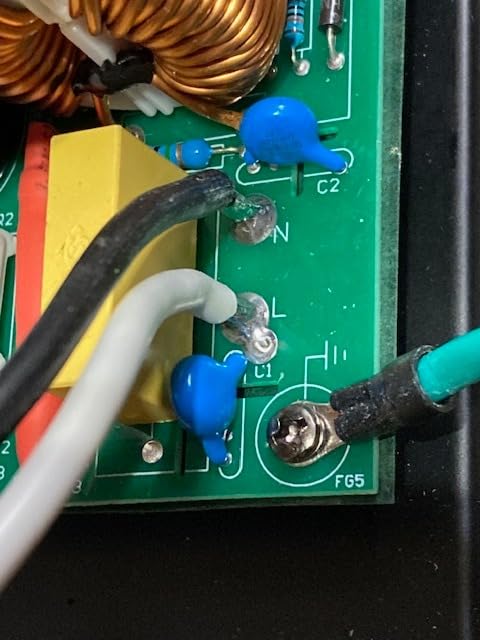

8. Zixixvan WF-8955 55 Amp Converter with Battery Recognition
Upgrade Wf-8955an Power Converter with Recognition Lead Acid and Lithium Batteries – Rv Wf-8955-Ad-Mba 55 Amp Converter for Wf-8955 and Parallax 7155 Converter，and 7145 and 7155 Power Center
55A DC output from 105-130VAC
Red switch or auto chemistry detection
Replaces WF-8955 and Parallax 7155
Pros
- Direct fit for WF-8955 and Parallax 7145/7155 bays
- Manual switch or automatic chemistry detection
- Fan stays off at start-up so idle is quiet
- Lowest cost among the 55 amp options reviewed
Cons
- Generic brand with limited published specs
- Manual switch requires confirming the chemistry
- Output voltage for lithium is not fully specified
Parallax 7145 and 7155 power centers were fitted to a lot of mid-size trailers, and when one fails the replacement is not always obvious. This unit is listed as a match for WF-8955 units and for Parallax 7155 and 7145 converters and power centers, which covers two very common factory platforms in one box.
Output is 55 amps DC from a 105-130VAC at 60Hz input. The chemistry handling is the part worth reading twice: a red switch selects lithium mode or lead-acid mode, and the product also supports automatic detection of the battery type.
Owners replacing aging WFCO and Parallax units report easy fit, a cooling fan that only runs when the load needs it, and smooth conversion to lithium with few reported failures across 210 reviews at 4.5 stars.
Protection covers over current, temperature, voltage and polarity, and the seller offers technical support after the sale, which matters more than usual on a unit with a limited printed spec sheet.
Best fit for Parallax-equipped trailers
If your trailer has a Parallax 7155 power center, the fit question is answered before you buy, and that removes the most common reason a correct converter ends up on a shelf. Both WF-8955 and Parallax bays are covered.
Automatic detection is a genuine convenience when the battery chemistry might change again. Several owners on r/GoRVing are mid-way through a lead-acid to lithium swap, and a converter that can follow that change is less of a second purchase.
Where the missing specifications bite
Weight and dimensions are not published, and the lithium output voltage is not fully specified in the product data. That matters for a bay fit, because a converter that is physically slightly off is a return, not an install.
The manual switch also puts the responsibility on the installer to confirm the battery chemistry rather than handling it automatically every time. If you are unsure what is in your bank, verify it before setting the switch.

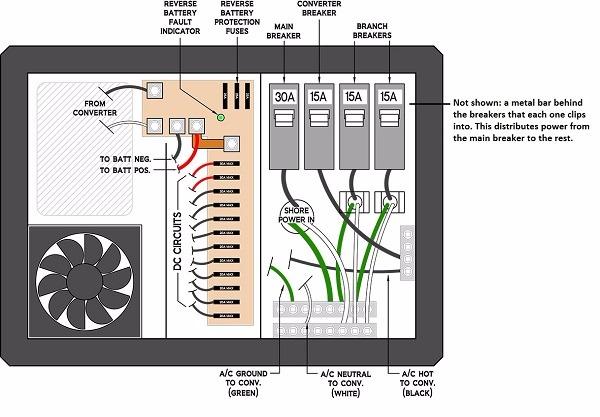

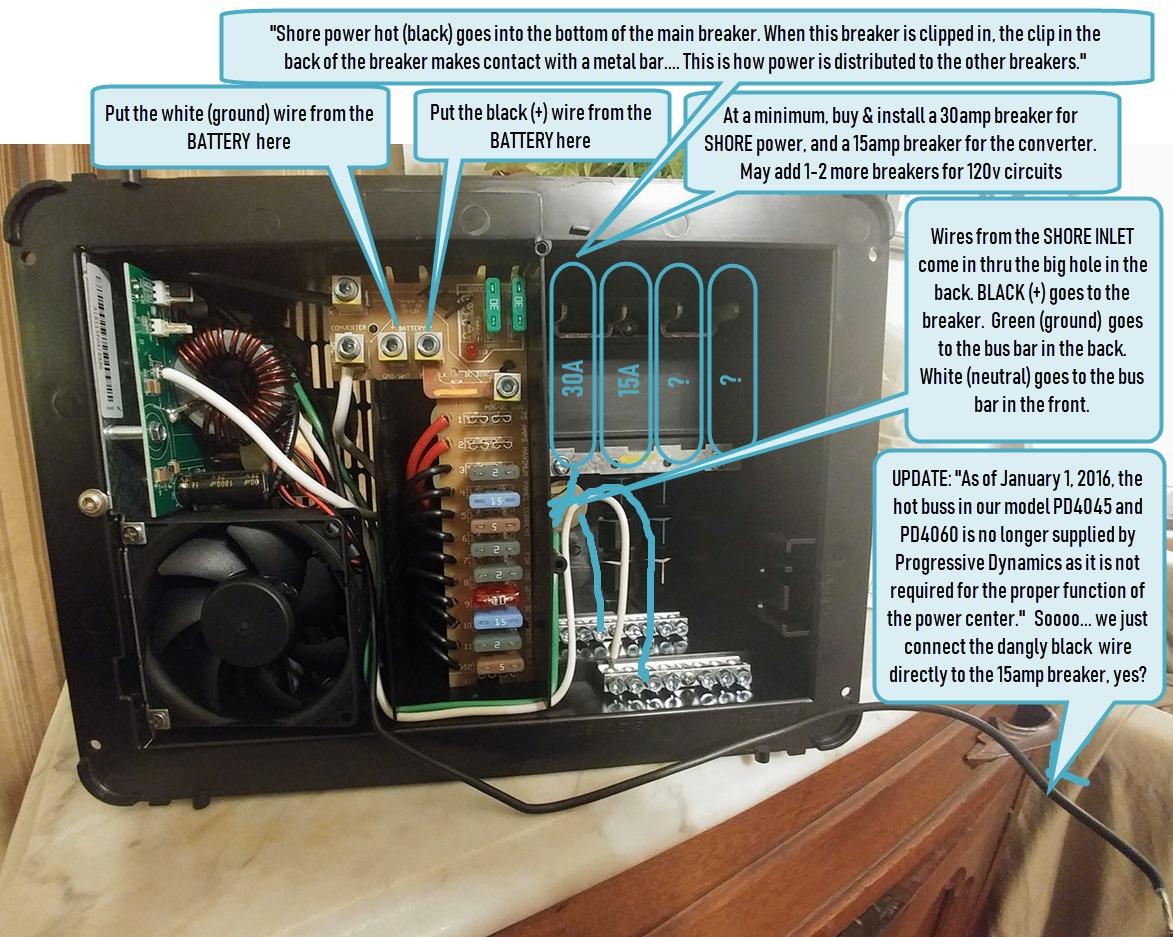

9. Progressive Dynamics PD4045KV 45 Amp Inteli-Power Converter
Progressive International Dynamics PD4045KV Inteli-Power 4000 Series Converter with Charge Wizard – 45 Amp
Compact converter/charger with Charge Wizard
Variable speed fan, thermal protection
15.06 x 8 x 9.88 inch, 7 lb
Pros
- Charge Wizard multi-stage charging built in
- Reverse battery protection with replaceable fuses
- Variable speed fan and automatic thermal protection
- Compact 4000-series footprint
Cons
- Costs more than generic aftermarket 45 amp units
- No integrated DC fuse panel like the 4600 series
- Warranty listed as a 30-day contact window
This is the compact member of the Progressive Dynamics line, and compact is the point. Where the PD4645V we covered earlier is 13.2 inches wide with an integrated DC fuse panel, this 4000-series unit is the smaller footprint for a bay that will not take the bigger box.
It keeps the Charge Wizard multi-stage charging that made the brand a forum favourite, and adds electronic current limiting plus high and low AC input protection, which covers the supply-side problems that show up at campground pedestals.
Thermal management is the other strength. An intelligent variable-speed cooling fan and automatic thermal protection handle the same bay temperatures that damage lesser units, and owners describe it as running quietly under normal load.
Reverse battery protection uses easy-to-replace fuses, which is a small detail that saves a weekend if someone reverses the leads during an install.
When the smaller box is the deciding factor
Physical fit is the number one cause of a returned converter, and it is the one thing product pages never tell you. If you have measured your bay and the 4600 series will not clear it, this is the Progressive Dynamics unit that will.
You still get the same charging behaviour that owners credit with long battery life, which is the main reason people choose this brand over a cheaper board in the first place.
What you give up for the size
There is no integrated DC fuse panel, so if your distribution setup is part of the original assembly, this does not cover it. Several of the units in this roundup are converter sections only, and the difference matters at install time.
The listed warranty is a 30-day contact window, which is thin, and the price sits above generic aftermarket 45 amp converters. You are paying for the charging algorithm and the thermal design, not for the wattage.
10. WAVLINK GS800RV-55 55 Amp RV Power Converter
WAVLINK 55 Amp RV Power Converter, 120V AC to 12V DC Battery Charger
55A output, 800 watts
Lead-acid, lithium and 13.0-16.5V custom modes
9.05 x 5.71 x 3.46 inch metal body
Pros
- Automatic lead-acid or lithium detection
- Adjustable 13.0V-16.5V range covers many battery types
- Easy drop-in install in campers and trailers
- Spare fuses and power cord included
Cons
- Cooling fan is noticeably loud
- Recessed mode switch needs a tiny flathead screwdriver not included
- Some buyers measured around 36 amps rather than 55
- Instructions do not explain the mode switches
The WAVLINK is the option we would hand to someone wiring their own trailer this winter. It has three smart charging modes: lead-acid, lithium, and a customizable fixed voltage anywhere from 13.0V to 16.5V, and it detects the battery type automatically so there is nothing to set before first hookup.
Output is 55 amps and 800 watts from a 120V AC input, in a 9.05 x 5.71 x 3.46 inch metal body with a temperature-controlled fan for heat dissipation. Protections cover short circuit, software over voltage, thermal, current limiting and reverse polarity.
Owners like that the package includes the power cord, three spare fuses and a manual, so a first install does not start with a parts run. The metal body is also a genuinely better heat path than a plastic case in a hot bay.
Reviewers frequently note it costs roughly a third of what an RV service shop quotes for the same job, which is the main argument for it.
Why DIY owners like it
Automatic detection removes the single most common install error in this category, which is a converter left in the wrong chemistry mode after a battery swap. The adjustable 13.0V to 16.5V range also covers unusual battery requirements that a fixed profile misses.
For a first-time trailer owner replacing a failed unit, the included fuses and cord mean one box off the shelf gets you a working install.
Where the fit and noise work against it
The cooling fan is the most repeated complaint in the reviews, with owners adding rubber dampeners to quiet it. If your converter bay sits inside the living space, that is worth knowing before you buy.
The mode switch is recessed and needs a tiny flathead screwdriver that is not included, and the operating instructions do not clearly explain the switches. Some buyers also measured roughly 36 amps of delivered output rather than the advertised 55, so size with a margin.
How to Choose the Right Converter Amp Rating for Your Trailer
Most sizing confusion comes from a simple fact: the amp rating is a ceiling, not a promise. A 55 amp converter plugged into a 30 amp pedestal will still only draw 30 amps, so a bigger unit does not create power your hookup cannot supply. Size for the battery bank you have and the 12V loads you actually run.
A pop-up or small teardrop trailer on a single small battery generally lives comfortably on 30 amps. A mid-size travel trailer with a group of lead-acid batteries and a water pump, furnace and refrigerator is the classic 45 to 55 amp case. Larger fifth wheels running two banks or heavy 12V loads are where 55 amps and above starts to make sense.
The rule of thumb owners use is to match the converter to the largest battery bank you plan to own, not the one you have now. A converter that is too small simply charges slowly; one that is far too large costs you bay space and idle draw without charging faster.
One more constraint worth knowing: how much power does an RV converter use? A converter only draws what the loads and the charging profile ask for, and most of the units here idle at a low overhead draw rather than pulling their full rating continuously. That is why an oversized converter is mostly a fit and idle-draw problem rather than a shock to your battery.
Converter Section vs Full Power Center
This is the decision that determines which part number you should actually be buying, and almost no buying guide explains it. A converter section is just the charger module. A power center bundles that module with an AC breaker box and a DC fuse panel in one metal housing.
If your trailer has a working breaker box and functioning DC fuses, you only need a converter section. If the distribution side is brittle, scorched or already modified, a full power center is the correct part even though it costs more and takes more space.
Most of the units in this roundup are standalone converter sections, including both PowerMax deck-mount models, the IOTA, the RecPro, the VEVOR and the WAVLINK. The Progressive Dynamics PD4645V is the exception with its integrated DC fuse panel and LED blown-fuse indicators.
Lead-Acid vs AGM vs LiFePO4: Setting the Battery-Type Switch Right
Nearly every lithium charging problem in this category traces back to a chemistry setting that was never changed. Owners replace a lead-acid bank with LiFePO4, keep the old converter, and wonder why charging behaves badly. The converter was never at fault.
The charging algorithm explains why. In bulk stage the converter pushes current hard until the battery reaches a threshold voltage. In absorption it holds near that voltage for a fixed period to fully finish the chemical reaction. In float it drops to a maintenance voltage and stops pushing current, which is what lets a converter stay connected for months without damage.
That float behaviour is the whole game. A factory unit that stops at 13.6V and never enters bulk is not really charging, which is the complaint one Good Sam community owner raised about a WFCO 8930/50. A proper multi-stage unit moves through all three and settles into float.
Equalization is the fourth stage you will see mentioned, and it is where the AGM argument lives. Flooded lead-acid benefits from periodic equalization, AGM and LiFePO4 generally do not need it and can be stressed by a forced cycle. That trade-off runs through the Forest River Forums discussion of 4-stage converters, and several owners report that switching an AGM bank back to flooded resolved their complaints without touching the converter at all.
For lithium specifically, look for a stated 14.4V to 14.6V capability, either as a selectable mode, a hidden jumper, or a control module. The PowerMax PM3-55LK, the WF-9855 replacement, the Zixixvan, the VEVOR and the WAVLINK all handle lithium in some form. The IOTA does it through a modular stub wire and a controller, which is a valid approach but a different one.
Converter vs Inverter: The Difference Every RV Owner Gets Asked
A converter takes 120V AC in and gives you 12V DC out. An inverter does the exact opposite, taking 12V DC from your battery and producing 120V AC for household outlets. They are not competing devices, and plenty of people need both.
Your lights, water pump, refrigerator controls and most RV electronics run on 12V DC, so a converter covers the core of a trailer. An inverter only matters if you want to run a laptop, a TV or a coffee maker from the battery bank while unplugged.
If you are sizing for a 30 amp camper and wondering about a generator, that is a separate question from the converter. A converter does not generate power; it converts what you already have from the pedestal or a generator into what the trailer needs.
How to Identify the Converter You Already Have
Before you buy anything, read the label on the unit you are replacing. The part number tells you almost everything, and the WFCO numbering is reasonably consistent once you know the pattern.
WF-8955 style numbers indicate a 55 amp unit, and a WF-9855 style number indicates a 55 amp unit from the 9800 series with a different board layout. PD numbers indicate Progressive Dynamics, and a 9200 or 9300 series number is the 4-stage Inteli-Power family. Parallax and Magnatek 6345, 7345 and 8345 sections are common enough that several replacements on this list name them directly.
Then measure the bay before you order. Length, width and depth, plus whether the mount is surface or deck-mounted, decide fit more often than specs do. The IOTA at 6.7 inches wide and the PD4645V at 13.2 inches wide will not go into the same opening, and the PD4045KV exists mainly for the bays the larger box will not clear.
Finally, write down your battery chemistry and your planned 12V loads. Those two facts answer most of the questions the product pages raise, and they take about two minutes.
Signs Your RV Converter Has Failed
Check the battery voltage at the converter terminals while plugged into shore power. If it sits at 13.6V and will not move higher with a moderate 12V load applied, the converter is not entering bulk charge and the battery is being trickled rather than charged.
A blown DC fuse that blows again the moment you replace it means a short downstream, not a converter fault. A converter that works cold and cuts out once the bay warms up points at thermal protection or a failing fan, which is a known pattern on older units.
Buzzing, humming, or a fan that runs constantly at no load are all signs worth acting on. And if a new converter is installed and the battery still will not hold a charge, the battery is the next thing to test, not the charger.
Frequently Asked Questions
What is a converter used for in a camper?
A converter takes 120V AC from a campground pedestal and turns it into the 12V DC your lights, water pump and fans run on. At the same time it charges your house battery bank in stages, then holds it at a maintenance float voltage so you can leave the trailer plugged in for weeks without draining the battery.
How do I know what size converter I need for my RV?
Match the rating to your battery bank and 12V loads, not to your trailer length alone. Small trailers with a single battery run fine on 30 amps. A mid-size travel trailer with a group of lead-acid batteries usually needs 45 to 55 amps. Larger fifth wheels with two banks or heavy 12V demand justify 55 amps and up. Remember a 30 amp pedestal caps everything at 30 amps regardless of converter size.
Is an RV inverter and converter the same thing?
No, they do opposite jobs. A converter turns 120V AC shore power into 12V DC for your trailer systems and recharges the battery. An inverter turns 12V DC from the battery into 120V AC for standard household outlets. Most trailers need a converter every day and an inverter only when they want to run mains appliances off-grid.
What are the three stages of charging for WFCO converters?
Bulk pushes maximum current until the battery hits its target voltage. Absorption holds near that voltage for a fixed period to finish the chemical reaction. Float then drops to a lower maintenance voltage and stops pushing current. A converter that never leaves 13.6V is only trickling the battery, which is the most common complaint about older factory WFCO units.
Can you change a 30 amp RV to a 50 amp?
You can fit a higher rated converter, but the trailer wiring, breaker and shore service all have to match. A 50 amp plug in a 30 amp pedestal still only delivers 30 amps, so the upgrade does nothing without new wiring and a 50 amp service post. Check your existing connector and breaker rating first, and expect a wiring change to be the larger part of the job.
How much power does an RV converter use?
A converter draws only what the loads and the charging profile demand, not its full nameplate rating. Under steady shore power with a full battery it settles into float at a low overhead draw, and a couple of the units reviewed idle at roughly 15 watts. The full amp rating matters during bulk charge, not as a constant draw.
Final Verdict for 2026
The PowerMax PM3-55LK is our pick for most trailers, with 2415 reviews behind it, a 55 amp rating that suits a mid-size travel trailer, and adjustable output for both lead-acid and lithium. The volume of owner history is what makes it the safest buy in a category where most boxes have thin review counts.
For a smaller trailer with a factory Parallax or WFCO bay, the Progressive Dynamics PD4645V is the one to look at first, because the Charge Wizard 4-stage charging is the algorithm owners credit with keeping batteries healthy for a decade, and it replaces several common legacy converter sections directly. The IOTA DLS-45 takes the same spot when you already run a battery management system and want the highest rated unit here.
Whatever you order, read the part number off the unit you are removing, measure the bay, and confirm your battery chemistry before you set any switch. Those three minutes decide whether the install takes an afternoon or a return trip. If you are still working out what to tow, our dump trailer reviews cover a different end of the same setup.
